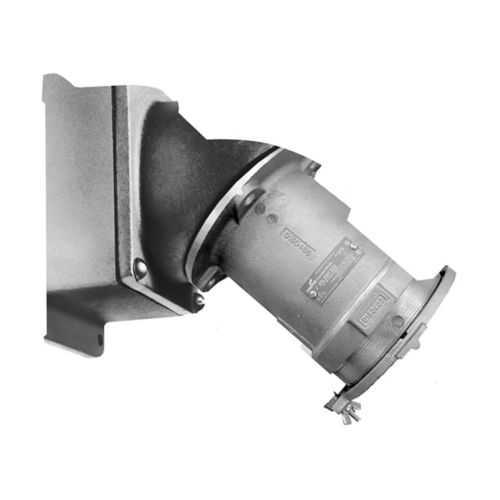

Eaton AREAL20417 Receptacle Assembly - NEMA 3R, 200A
Part Number: AREAL20417
Quick Summary
AREAL20417 receptacle assembly from Eaton Crouse-Hinds delivers rugged, plug-and-connect wiring for industrial enclosures in harsh environments. Many projects struggle with tight spaces, difficult terminations, and the downtime those issues cause. This AREAL unit supports NEC/CEC compliance and is rated NEMA 3R for reliable protection in non-hazardous outdoor or indoor locations. Its copper-free aluminum construction reduces weight and corrosion risk. A spring door with a mechanical lug termination enables quick, secure connections while maintaining safe, code-compliant access. Designed for 200A, four-wire, four-pole service at 50 to 400 Hz, it supports broad voltage options and straightforward installation in electrical bays and equipment rooms, delivering lower lifecycle costs.
Product Information
Extended Description
AREAL20417 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREAL receptacle assembly, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Mechanical lug, 2-1/2", 600 Vac/250 Vdc, 0.687"
Product Name
Eaton Crouse-Hinds series Arktite AREAL receptacle assembly
Catalog Number
AREAL20417
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
20.4 lb
UPC
662276287389
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2-1/2"
Receptacle style
Spring door
Termination style
Mechanical lug
Wire well size
0.687"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREAL20417 3D drawing
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREAL20417
Feature: 200A four-wire, four-pole configuration. Business Impact: Supports heavy-load circuits and simplifies panel design for control rooms and outdoor enclosures, reducing the number of splice points and potential fault paths. Application: Ideal for industrial automation panels and outdoor equipment housings with broad voltage tolerance. Feature: Copper-free aluminum construction. Business Impact: Reduces weight and corrosion risk, easing handling during installation and extending service life in harsh environments. Application: Outdoor substations, rugged process lines, and ship-side equipment. Feature: Spring door and mechanical lug termination. Business Impact: Speeds up field terminations, improves reliability, and minimizes maintenance downtimes. Application: Quick-connect terminations in time-sensitive assembly lines and service bays. Feature: 50 to 400 Hz and 600 Vac/250 Vdc compatibility. Business Impact: Broadens power-system compatibility across diverse plants, minimizing rework and spare-part needs. Application: Global facilities with mixed power formats and evolving automation architectures. Feature: NEMA 3R rating and Ordinary/Non-Hazardous location classification. Business Impact: Delivers reliable moisture protection and code alignment, reducing regulatory risk and enabling safer operation. Application: Indoor/outdoor enclosures in non-hazardous locations. Feature: 2-1/2" trade size, 0.687" wire well, and spring door design. Business Impact: Supports modular layouts, straightforward wiring, and efficient space utilization in tight panels. Application: AREAL series integrations and retrofit projects. For system integrators, AREAL20417 simplifies specification by aligning with the Arktite AREAL catalog, ensuring consistent connector geometry and replacement parts across sites.
