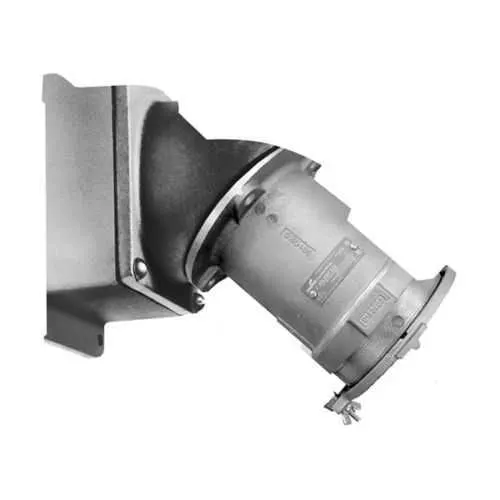

Eaton Crouse-Hinds AREAL20425 Receptacle Assembly - 3R
Part Number: AREAL20425
Quick Summary
AREAL20425 receptacle assembly from Eaton Crouse-Hinds delivers rugged, high-current power connections for industrial enclosures. Maintenance and reliability challenges in large switchgear, outdoor installations, or harsh factory environments can drive costly downtime when components fail or misalign. This unit is built to NEC/CEC standards and carries a NEMA 3R enclosure rating, with copper-free aluminum for lighter weight and corrosion resistance. With a 200A rating and a 600 Vac/250 Vdc specification across 50–400 Hz, it reduces the number of parts needed and simplifies procurement. The spring-door, mechanical lug termination, and 1-1/2" trade size help streamline installation and field servicing. In short, AREAL20425 supports uptime, safety, and total cost of ownership in industrial wiring and connectivity applications. This solution is well suited for wiring and connectivity professionals seeking durable, compliant receptacles.
Product Information
Extended Description
AREAL20425 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREAL receptacle assembly, 200A, Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Spring door, Mechanical lug, 1-1/2", 600 Vac/250 Vdc, 0.687"
Product Name
Eaton Crouse-Hinds series Arktite AREAL receptacle assembly
Catalog Number
AREAL20425
Product Length/Depth
15.63 in
Product Height
14.44 in
Product Width
8.38 in
Product Weight
20.4 lb
UPC
662276368361
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
3R
Amperage Rating
200A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 2
Configuration
Three-wire, four-pole
Trade size
1-1/2"
Receptacle style
Spring door
Termination style
Mechanical lug
Wire well size
0.687"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREAL20425 3D drawing
Arktite 200A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREAL20425
Feature: Copper-free aluminum construction reduces weight and corrosion risk. Business Impact: Easier handling during installation, longer component life in harsh environments, and lower maintenance costs. Application: Outdoor enclosures and damp industrial settings where corrosion is a concern. Feature: 200A amperage rating combined with 600 Vac / 250 Vdc and 50 to 400 Hz compatibility. Business Impact: Supports heavy-duty equipment and broad frequency ranges with fewer parts, improving efficiency and reducing spare-part inventory. Application: Large motor feeds, processing lines, and multi-frequency power systems in manufacturing. Feature: Spring door receptacle style and Style 2 grounding. Business Impact: Safer, faster access and secure grounding, reducing install time and risk of loose connections. Application: Quick-service panels and high-cycle environments where reliability matters. Feature: Mechanical lug termination and 0.687" wire well size. Business Impact: Robust field wiring with straightforward termination and clean, organized terminations, lowering commissioning time. Application: Field upgrades, retrofit projects, and new installs in industrial facilities. Feature: NEMA 3R enclosure rating and Ordinary/Non-Hazardous area classification. Business Impact: Weather-resistant performance in non-hazardous locations, enabling broader deployment while maintaining safety and compliance. Application: Plant floors, exterior walls, and non-hazardous industrial locations where durability is critical.
Get a Quick Quote for a Eaton Crouse-Hinds AREAL20425
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREAL20425?
Enquire Now
FAQs
When planning AREAL20425 installs, verify the 1-1/2" trade size and 0.687" wire well clearance to fit inside the enclosure. Ensure the mechanical lug termination is accessible for field wiring, and confirm the enclosure’s NEMA 3R rating aligns with your exterior or damp location requirements. Using the spring door helps maintain enclosure integrity during servicing and reduces exposure to contaminants.
AREAL20425 supports up to 200A with a voltage rating of 600 Vac and 250 Vdc and a frequency range of 50 to 400 Hz. It is a three-wire, four-pole receptacle assembly with a Style 2 grounding configuration, designed for copper-free aluminum construction to minimize weight and galvanic corrosion in industrial settings.
Yes. The unit carries a NEMA 3R enclosure rating and is classified for Ordinary/Non-Hazardous Locations, making it suitable for durable outdoor or semi-exposed indoor installations where reliable protection and corrosion resistance are required.
AREAL20425 is designed to NEC/CEC-compliant electrical performance and integrates a NEMA 3R enclosure rating. It uses copper-free aluminum to meet durability and corrosion resistance expectations, with a warrantied approach for non-hazardous industrial environments.
The copper-free aluminum construction reduces weight and corrosion risk, easing installation and long-term maintenance. The robust lug termination and durable spring door minimize field servicing time, lowering downtime and total cost of ownership in high-demand manufacturing or processing environments.
