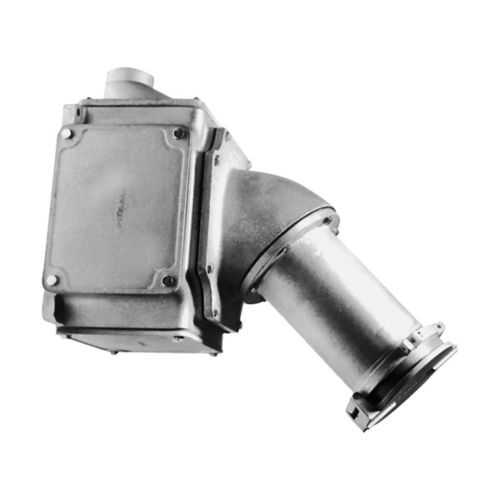

Eaton AREX403129 Receptacle Assembly - NEC/CEC
Part Number: AREX403129
Quick Summary
The Eaton Crouse-Hinds AREX403129 receptacle assembly delivers high-capacity power connections for Arktite enclosure systems in industrial facilities. A common pain point is wiring integrity in harsh environments, where corrosion and maintenance downtime erode productivity; AREX addresses this with copper-free aluminum and a rugged spring door. It complies with NEC/CEC standards for ordinary/non-hazardous locations and supports 50–400 Hz operation, 600 Vac/250 Vdc. The combination of performance and installation efficiency reduces lifecycle costs and simplifies procurement for panel builders and end users. Designed for durable, compliant power distribution in metal enclosures, AREX403129 helps keep critical processes running.
Product Information
Extended Description
AREX403129 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREX receptacle assembly, 400A, Three-wire, three-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 3-1/2", 600 Vac/250 Vdc, 1.25"
Product Name
Eaton Crouse-Hinds series Arktite AREX receptacle assembly
Catalog Number
AREX403129
Product Length/Depth
23.63 in
Product Height
19.31 in
Product Width
13 in
Product Weight
61.6 lb
UPC
662276225510
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
400A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Three-wire, three-pole
Trade size
3-1/2"
Receptacle style
Spring door
Wire well size
1.25"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREX403129 3D drawing
Arktite 400A Metallic Plugs, Receptacles and Connectors catalog page
IF 853 - Arktite AR Series, Model 80 200A/400A
IF 853 - Arktite AR Series, Model 80 200A/400A
Eaton Specification Sheet - AREX403129
Feature: 400A amperage rating with 600 Vac/250 Vdc and 50–400 Hz compatibility. Impact: Enables handling of heavy machine loads and motor starters within a single receptacle, reducing panel branching and potential failure points. Application: Ideal for Arktite AREX installations in manufacturing lines and heavy industrial enclosures. Feature: Copper-free aluminum construction with a Style 1 grounding scheme and 3-wire, 3-pole configuration. Impact: Delivers corrosion resistance, lighter weight, and straightforward grounding for code compliance. Application: Fits standard Arktite AREX receptacle wells and supports safe, durable field wiring. Feature: Receptacle style with spring door. Impact: Improves weather sealing and ease of maintenance when doors are opened for connections. Application: Beneficial in facilities with frequent servicing or enclosure access in ordinary locations. Feature: 3-1/2" trade size and 1.25" wire well size. Impact: Accommodates large conductors and simplifies installation of multi-conductor cables. Application: High-density power distribution in control panels. Feature: Compliance with NEC/CEC standards and ordinary/non-hazardous locations classification. Impact: Reduces procurement risk and accelerates approvals for plant upgrades. Application: Compliance-driven installations in commercial and industrial environments.
Get a Quick Quote for a Eaton Crouse-Hinds AREX403129
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREX403129?
Enquire Now
FAQs
AREX403129 is designed for Arktite AREX receptacle wells with a 3-1/2 inch trade size and copper-free aluminum construction. Plan for proper grounding (Style 1) and wiring within the 50–400 Hz, 600 Vac/250 Vdc rating. Ensure enclosure clearance, secure mounting, and adherence to NEC/CEC requirements during panel upgrades.
The device is rated for 400A, 600 Vac and 250 Vdc, operating from 50 to 400 Hz. It is a three-wire, three-pole receptacle with copper-free aluminum construction. These specs support large motor loads and high-current distributions in Arktite panels, enabling fewer feeders and simplified wiring while maintaining compliance and safety.
Yes, AREX403129 is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. This makes it appropriate for standard industrial environments where harsh environmental hazards are not present, streamlining procurement and installation within conventional manufacturing and processing facilities.
Procurement is supported by NEC/CEC certification, with installation and specification resources such as the Arktite catalog page for 400A plugs and receptacles, IF 853 installation sheets, and the Eaton AREX403129 datasheet. These provide compliance alignment, mounting guidance, and wiring instructions for safe, code-compliant installations.
Upgrading to AREX403129 can reduce panel count and wiring complexity, improving installation speed and uptime in heavy industrial environments. Eaton provides CAD drawings, installation instructions, and specification sheets to accelerate design and commissioning, contributing to lower lifecycle costs and faster project ROI through reliable, code-compliant distribution.
