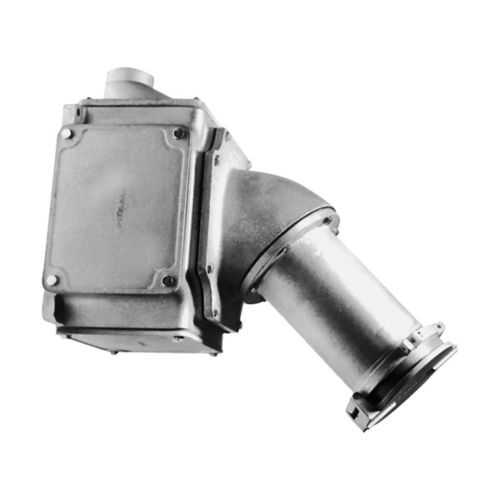

AREX40317 Receptacle Assembly by Eaton - 400A, 600 Vac
Part Number: AREX40317
Quick Summary
AREX40317 receptacle assembly by Eaton delivers rugged, high-current power for Arktite enclosures in industrial facilities. Many engineers face downtime from incompatible receptacles or corrosion in harsh environments. It conforms to NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with a copper-free aluminum housing that resists weathering. This combination supports easier procurement, faster installation, and longer service life, aligning with 400A, 600 Vac/250 Vdc requirements for demanding industrial controls and automation panels.
Product Information
Extended Description
AREX40317 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREX receptacle assembly, 400A, Three-wire, three-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 2-1/2", 600 Vac/250 Vdc, 0.84"
Product Name
Eaton Crouse-Hinds series Arktite AREX receptacle assembly
Catalog Number
AREX40317
Product Length/Depth
23.63 in
Product Height
19.31 in
Product Width
13 in
Product Weight
61.6 lb
UPC
662276183414
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
400A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Three-wire, three-pole
Trade size
2-1/2"
Receptacle style
Spring door
Wire well size
0.84"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREX40317 3D drawing
Arktite 400A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREX40317
Feature: 400 A amperage rating with 600 Vac / 250 Vdc and 50–400 Hz compatibility. Business Impact: Enables high-load motor and equipment connections with a single, standardized receptacle, reducing panel density and wiring complexity. Application: Ideal for heavy machinery enclosures and control panels in industrial facilities. Feature: Copper-free aluminum housing. Business Impact: Delivers excellent corrosion resistance while reducing overall weight, lowering installation labor and mounting stress. Application: Harsh factory floors and outdoor installations where material compatibility matters. Feature: Spring door receptacle with 2-1/2 inch trade size. Business Impact: Simplifies field maintenance and ensures quick, secure access for routine diagnostics, improving uptime. Application: Arktite AREX installations in machine enclosures and field junctions. Feature: Style 1 grounding and three-wire, three-pole configuration. Business Impact: Provides reliable grounding and NEC/CEC-aligned safety, reducing compliance risk and rework. Application: General purpose power distribution in non-hazardous locations. Feature: Area classification Ordinary/Non-Hazardous Locations and NEC/CEC compliance. Business Impact: Streamlines procurement and installation approvals, lowering total cost of ownership and simplifying inspections. Application: Indoor and outdoor industrial environments that avoid hazardous classifications.
Get a Quick Quote for a Eaton Crouse-Hinds AREX40317
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREX40317?
Enquire Now
FAQs
AREX40317 is designed for Arktite AREX mounting in 2-1/2 inch trade size enclosures and uses a three-wire, three-pole configuration with Style 1 grounding. When planning installation, verify enclosure dimensions (length 23.63 in, height 19.31 in, width 13 in) and ensure adequate clearance for the 61.6 lb unit.
AREX40317 is rated for 400 A with a voltage rating of 600 Vac / 250 Vdc and a frequency range of 50 to 400 Hz. This supports demanding industrial loads and diverse power sources while maintaining reliable performance in normal locations.
Best suited for Arktite receptacle applications in ordinary/non-hazardous locations, including heavy machinery enclosures, automation panels, and field-wiring in non-classified environments. The copper-free aluminum housing offers durability in factory floors and outdoor-adjacent setups while meeting NEC/CEC standards.
AREX40317 aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations. The product uses a copper-free aluminum construction and adheres to general safety and compatibility requirements for industrial wiring devices in non-hazard environments.
Investing in AREX40317 supports long-term reliability due to corrosion resistance and reduced maintenance needs from copper-free aluminum. The spring door design speeds field servicing, while the robust 400 A rating minimizes panel redundancy. Plan for a 23.63 in x 19.31 in x 13 in footprint and consider lifting equipment for the 61.6 lb unit to optimize installation time.
