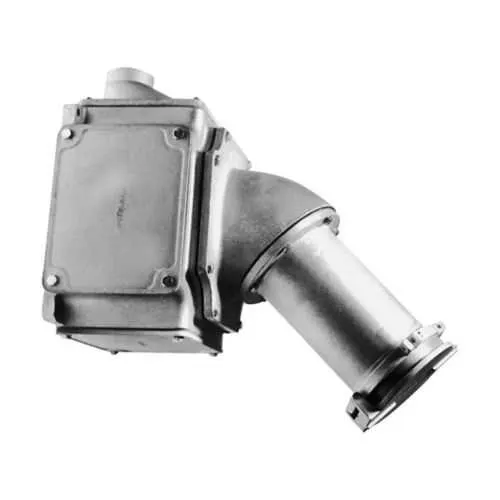

Eaton AREX40318 Receptacle Assembly - 600 Vac/250 Vdc
Part Number: AREX40318
Quick Summary
AREX40318 is a heavy-duty receptacle assembly for 400 A, 600 Vac power distribution in demanding industrial environments. In harsh plants, corrosion, improper terminations, and difficult maintenance drive downtime and safety risk. This unit is compliant with NEC/CEC standards and area classification for Ordinary/Non-Hazardous Locations, helping facilities meet regulatory requirements with minimal rework. Copper-free aluminum construction, a spring-door receptacle, and a 3-inch trade size enable durable, fast installations while reducing long-term maintenance costs. By pairing robust materials with proven Eaton/Crouse-Hinds design, this solution supports reliable power distribution, simplifies procurement, and improves overall equipment effectiveness for non-hazardous industrial applications.
Product Information
Extended Description
AREX40318 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREX receptacle assembly, 400A, Three-wire, three-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 3", 600 Vac/250 Vdc, 0.84"
Product Name
Eaton Crouse-Hinds series Arktite AREX receptacle assembly
Catalog Number
AREX40318
Product Length/Depth
23.63 in
Product Height
19.31 in
Product Width
13 in
Product Weight
61.6 lb
UPC
782274083933
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
400A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Three-wire, three-pole
Trade size
3"
Receptacle style
Spring door
Wire well size
0.84"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREX40318 3D drawing
Arktite 400A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREX40318
Feature → 400 A amperage rating enables a single, robust connection for high-demand equipment. Business impact → reduces the number of feeders and simplifies panel design, shortening installation time and reducing fault points. Application → ideal for large motors, MCCs, and heavy conveyors in ordinary locations where reliability matters.\n\nFeature → 600 Vac/250 Vdc with 50 to 400 Hz compatibility expands system flexibility for diverse drives and control voltages. Business impact → avoids equipment changes and renegotiation of cable assemblies, lowering commissioning risk. Application → suitable for general power distribution across manufacturing lines, pumps, and HVAC systems.\n\nFeature → Copper-free aluminum construction delivers corrosion resistance and lighter weight compared with copper components. Business impact → extends service life in damp or coastal facilities and reduces handling effort during installation. Application → ideal for outdoor-rated enclosures and heavy AREX installations in non-hazardous areas.\n\nFeature → Spring-door receptacle design provides positive sealing and quick field access. Business impact → improves enclosure integrity, reduces ingress risk, and speeds inspections. Application → maintenance teams benefit from fast, safe access during periodic checks in non-hazardous environments.\n\nFeature → 3 in trade size with a 0.84 in wire well accommodates larger conductors. Business impact → simplifies wiring, reduces terminations, and lowers labor costs on high-current feeds. Application → enables efficient terminations in motor feeders and power-distribution panels.\n\nFeature → NEC/CEC compliance and Ordinary/Non-Hazardous Location area classification ensures regulatory alignment. Business impact → reduces compliance risk across facilities and simplifies procurement with standardized specifications. Application → ideal for general industry settings where standard electrical codes apply and non-hazardous classification is required.
Get a Quick Quote for a Eaton Crouse-Hinds AREX40318
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREX40318?
Enquire Now
FAQs
AREX40318 is designed for ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards for general industrial power distribution. It features a 400 A rating and 600 Vac/250 Vdc capabilities, making it suitable for large motors, pumps, and process equipment in non-hazardous environments. The copper-free aluminum construction withstands washdowns and humid facilities without compromising strength.
With a 400 A rating and a voltage capability of 600 Vac/250 Vdc, AREX40318 supports heavy-duty feeder circuits and a frequency range of 50 to 400 Hz. The copper-free aluminum body provides durability while the spring-door frame ensures consistent contact performance. This combination reduces voltage drop and improves reliability in demanding drives and equipment.
AREX40318 carries NEC/CEC standard compliance and is specified for Ordinary/Non-Hazardous Locations as indicated by the area classification. This aligns with typical industrial facilities and ensures installations meet regulatory expectations. For projects requiring explicit isolation or hazardous location certifications, confirm compatibility with the Arktite AREX catalog pages.
Installers should plan around the 3 in trade size and the 0.84 in wire well to accommodate large conductors. The unit weighs about 61.6 lb, so lifting and mounting should use appropriate hardware. The spring-door design aids quick access, while copper-free aluminum reduces weight during handling. Follow NEC/CEC guidelines for non-hazardous locations.
Design teams can reference the AREX40318 3D CAD drawing package, the Arktite 400A catalog page, and installation sheets such as IF 352 documents for Model M72 variants. These resources help verify compatibility, plan wiring routes, and ensure proper mounting and safety compliance during deployment.
