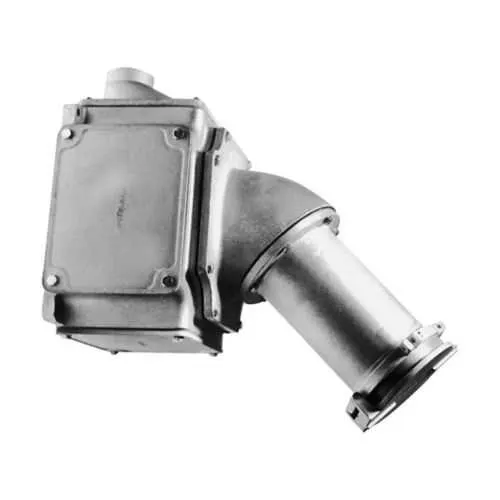

Eaton Crouse-Hinds AREX4041212 Receptacle Assembly - 600 Vac/250 Vdc
Part Number: AREX4041212
Quick Summary
AREX4041212 receptacle assembly from Eaton Crouse-Hinds delivers rugged, high-current electrical connections for industrial enclosures. In harsh environments, downtime and maintenance complexity erode uptime and inflate costs. This design adheres to NEC/CEC standards and is suited for Ordinary/Non-Hazardous Locations, helping facilities stay compliant while simplifying wiring and service. By combining copper-free aluminum construction, a spring door, and a 5 inch trade size, it offers durable performance with reduced weight and easier installation. Its 400A rating ensures it can handle motor loads and heavy equipment without frequent replacements. For procurement teams, the result is predictable lead times, fewer spare parts, and a lower total cost of ownership across large-power distributions.
Product Information
Extended Description
AREX4041212 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREX receptacle assembly, 400A, Three-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 5", 600 Vac/250 Vdc, 1.25"
Product Name
Eaton Crouse-Hinds series Arktite AREX receptacle assembly
Catalog Number
AREX4041212
Product Length/Depth
23.63 in
Product Height
19.31 in
Product Width
13 in
Product Weight
61.6 lb
UPC
782274093611
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
400A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Three-wire, four-pole
Trade size
5"
Receptacle style
Spring door
Wire well size
1.25"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREX4041212 3D drawing
Arktite 400A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREX4041212
Feature: 400A amperage, 600 Vac/250 Vdc, 50–400 Hz rating. Business Impact: Supports heavy motor loads and diverse equipment without frequent upgrades or parallel connections. Application: Large enclosures and motor control centers requiring single, robust power connections. Feature: Copper-free aluminum housing. Business Impact: Improves corrosion resistance and reduces weight for easier installation and longer service life. Application: Harsh industrial environments and outdoor installations where durability matters. Feature: Spring door receptacle style. Business Impact: Enhanced protection against dust and moisture while simplifying maintenance and terminal access. Application: Control panels and distribution boards in challenging conditions. Feature: 5" trade size with 1.25" wire well. Business Impact: Streamlined wire management and room for larger conductors, reducing installation time. Application: 3‑phase power distribution in industrial facilities. Feature: Three-wire, four-pole configuration with Style 1 grounding. Business Impact: Reliable grounding and safe fault paths align with NEC/CEC requirements. Application: High-current distribution in non-hazardous locations. Feature: Area classification Ordinary/Non-Hazardous Locations and NEC/CEC compliance. Business Impact: Regulatory alignment minimizes risk and speeds procurement. Application: Standard industrial environments needing proven, compliant power receptacles. Feature: Part of Arktite 400A family with 5" trade size. Business Impact: Proven compatibility with Arktite catalog components reduces BOM risk. Application: Large-scale installations requiring scalable power interfaces and CAD-ready planning.
Get a Quick Quote for a Eaton Crouse-Hinds AREX4041212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREX4041212?
Enquire Now
FAQs
AREX4041212 is designed for panel-mounted installations within industrial enclosures. Plan for a footprint of 23.63 in length and 19.31 in height, and support for its 61.6 lb weight. Ensure proper cable routing for a 1.25 in wire well, maintain clearance for the spring door, and follow NEC/CEC grounding and wiring rules for a safe, compliant setup.
AREX4041212 provides 400A, 600 Vac/250 Vdc, and 50–400 Hz operation with a three-wire, four-pole configuration and Style 1 grounding. It is rated for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards to support safe, reliable power distribution in standard industrial facilities.
Yes. AREX4041212 is part of the Arktite 400A family and uses a 5" trade size, designed to integrate with other Arktite components. For fit verification, consult the provided 3D CAD drawing package and catalog pages to ensure mounting clearance and wiring compatibility across your system.
The Spring door design speeds access to terminations while maintaining a tight seal against dust and moisture. This reduces ingress-driven wear and simplifies routine inspections or replacements, helping minimize maintenance-induced downtime in harsh environments.
The combination of a copper-free aluminum body, high current rating, and NEC/CEC compliance lowers total cost of ownership by reducing corrosion-related failures, downtime, and spare parts inventory. Lighter weight also lowers installation labor, while compatibility with Arktite catalogs ensures scalable, future-proof power distribution in demanding facilities.
