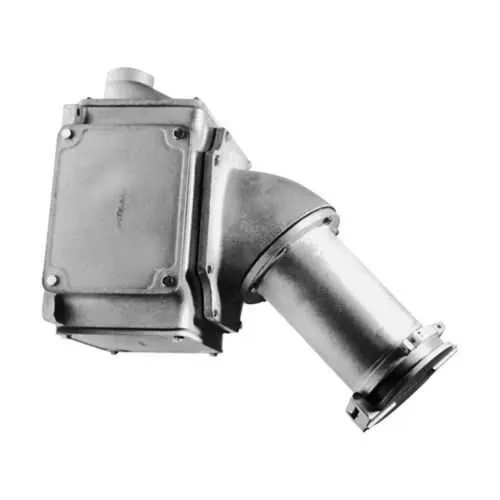

Eaton AREX40417 Receptacle Assembly - NEC/CEC
Part Number: AREX40417
Quick Summary
AREX40417 receptacle assembly delivers rugged power distribution for Arktite enclosures in demanding industrial environments. In many facilities, downtime and difficult maintenance interfaces hinder uptime and safety. This unit meets NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations, providing reliable compliance across projects. With a 400A capacity and a 600 Vac/250 Vdc rating, it supports heavy-duty circuits while remaining adaptable across 50 to 400 Hz systems. Its copper-free aluminum construction reduces weight and corrosion risk, lowering installation costs and long-term lifecycle expenses. The 2-1/2 inch trade size and spring door receptacle simplify field wiring and service, offering a practical fit for rugged industrial power distribution needs.
Product Information
Extended Description
AREX40417 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite AREX receptacle assembly, 400A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, 2-1/2", 600 Vac/250 Vdc, 0.84"
Product Name
Eaton Crouse-Hinds series Arktite AREX receptacle assembly
Catalog Number
AREX40417
Product Length/Depth
23.63 in
Product Height
19.31 in
Product Width
13 in
Product Weight
61.6 lb
UPC
782274042039
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Amperage Rating
400A
Voltage rating
600 Vac/250 Vdc
Frequency rating
50 to 400 Hz
Grounding type
Style 1
Configuration
Four-wire, four-pole
Trade size
2-1/2"
Receptacle style
Spring door
Wire well size
0.84"
Material
Copper-free aluminum
Eaton Crouse-Hinds AREX40417 3D drawing
Arktite 400A Metallic Plugs, Receptacles and Connectors catalog page
IF 352 - Model M72 Arktite Plugs and Receptacles
IF 352 - Model M72 Arktite Plugs and Receptacles
Eaton Specification Sheet - AREX40417
Feature: 400A amperage rating. Business Impact: Supports high-current motor starters and large industrial loads with headroom for peak demand, reducing the need for downstream subpanels. Application: Heavy machinery, pumps, and large distribution feeds in Arktite installations. Feature: 600 Vac/250 Vdc voltage rating. Business Impact: Delivers versatile AC and DC suitability across equipment and control systems, minimizing integration conflicts. Application: Mixed-voltage systems in process plants and facilities with diverse controls. Feature: Copper-free aluminum construction. Business Impact: Lighter weight improves handling and reduces installation time, while corrosion resistance lowers maintenance costs in harsh environments. Application: Outdoor or damp locations with heavy equipment enclosures. Feature: 50 to 400 Hz frequency range. Business Impact: Broad compatibility with equipment from various regions and suppliers, smoothing international projects. Application: Global manufacturing lines and test benches. Feature: Grounding style 1 and spring door receptacle. Business Impact: Ensures reliable grounding paths and quick access for service, reducing downtime during maintenance. Application: Routine inspections and field servicing in ordinary locations. Feature: Trade size 2-1/2 and wire well 0.84 inches. Business Impact: Clear wiring routes and ample conductor clearance expedite installation and meet code spacing requirements. Application: Large conductors and dense wiring in Arktite assemblies. Feature: Four-wire, four-pole configuration. Business Impact: Ensures proper balancing and fault isolation for safe, compliant power distribution. Application: Industrial feeders and multiwire circuits. Feature: 23.63 in length, 19.31 in height, 13 in width; 61.6 lb weight. Business Impact: Predictable footprint for enclosure planning and shipping logistics, aiding procurement and inventory control. Application: System integration in plant-wide power distribution schemes.
Get a Quick Quote for a Eaton Crouse-Hinds AREX40417
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds AREX40417?
Enquire Now
FAQs
AREX40417 is designed for Arktite AREX enclosures; ensure mounting supports match the 23.63 in length, 13 in width and 19.31 in height. Plan for the 2-1/2 inch trade size and 0.84 inch wire well, and verify compatibility with copper-free aluminum construction for ease of handling. Confirm grounding style of 1 and the spring door receptacle for service access.
The AREX40417 delivers 400A with a voltage rating of 600 Vac and 250 Vdc, supporting frequencies from 50 to 400 Hz. It uses a four-wire, four-pole configuration with Style 1 grounding and a spring door receptacle. These specs enable reliable high-current distribution across diverse industrial equipment and control systems.
Yes. AREX40417 is rated for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards. This makes it appropriate for general industrial environments where robust power distribution and regulatory alignment are needed without hazardous location classifications.
Copper-free aluminum reduces weight by a meaningful margin and offers excellent corrosion resistance, lowering handling and maintenance costs over time. The material choice also simplifies field installation, decreases shipping payload, and contributes to longer service intervals in challenging environments.
Support resources include CAD drawings, a product catalog page for Arktite 400A plugs and receptacles, installation instruction sheets, and the Eaton specification sheet. These materials assist with proper fit, installation planning, and long-term maintenance planning for reliable power distribution.
