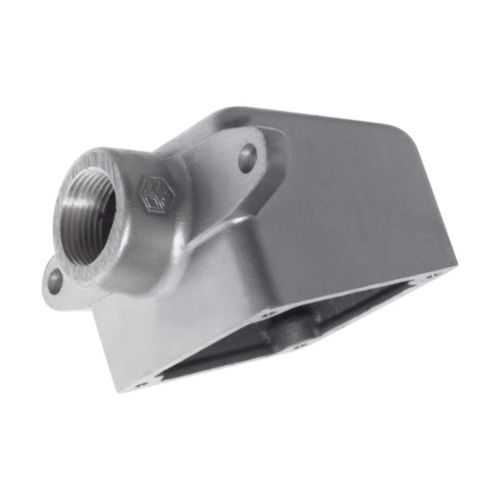

Eaton ARJG46 Back Box - 60A Cast Aluminum - 1-1/4 in
Part Number: ARJG46
Quick Summary
Eaton ARJG46 back box is a rugged enclosure designed to protect 60A circuits in industrial electrical installations. This compact, cast aluminum housing addresses common field challenges such as space constraints and harsh environments by delivering a durable, one hub back box that simplifies conduit routing. It carries an Ordinary/Non-Hazardous Locations area classification, supporting safe installation in general-purpose settings. The ARJG46 integrates smoothly with standard receptacles and mounting hardware, reducing assembly time and rework. By combining robust material with a practical size, it offers reliable performance for panel fabrication, retrofits, and service-oriented maintenance, helping engineers streamline projects while maintaining code compliance and long-term uptime.
Product Information
Extended Description
ARJG46 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARJG back box, 60A, One hub, Cast aluminum, 1-1/4"
Product Name
Eaton Crouse-Hinds series ARJG back box
Catalog Number
ARJG46
Product Length/Depth
5.69 in
Product Height
4.69 in
Product Width
5.25 in
Product Weight
2.15 lb
UPC
782274089409
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/4"
Amperage Rating
60A
Back box style
One hub
Material
Cast aluminum
Feature: 60A amperage rating provides clear conductor sizing and safe operation in control panels. Business Impact: Improves electrical system reliability and reduces overcurrent risk, translating to lower warranty and maintenance costs. Application: Suitable for machine and panel installations requiring a robust 60A backbone and compliant protection. Feature: One hub back box design simplifies conduit routing and minimizes installation time. Business Impact: Faster wiring runs, fewer field adjustments, and reduced labor hours. Application: Ideal for compact enclosures in limited-space panel enclosures and modular electrical architectures.Feature: Cast aluminum construction delivers corrosion resistance with a lightweight profile. Business Impact: Extends product life in industrial environments and lowers handling and shipping costs. Application: Outdoor or harsh indoor environments where durability matters.Feature: Dimensions 5.69 in L × 4.69 in H × 5.25 in W and weight 2.15 lb optimize space in control cabinets. Business Impact: Easier fit within standardized racks and panels, enabling scalable deployments. Application: Retrofit projects and new-build panels with tight footprint constraints.Feature: Trade size 1-1/4 in supports common conduit and receptacle configurations; Area classification Ordinary/Non-Hazardous Locations. Business Impact: Ensures compliant installation across general-purpose facilities with straightforward sourcing. Application: General industrial automation panels and equipment housings requiring reliable, non-hazardous enclosure solutions.
Get a Quick Quote for a Eaton Crouse-Hinds ARJG46
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARJG46?
Enquire Now
FAQs
Prepare the panel opening, mount the back box with proper fasteners for a secure fit, connect conduit to the 1-1/4 in hub, and seal as required for ordinary locations. Ensure clearance for wiring and devices inside the 5.69 in L × 4.69 in H × 5.25 in W enclosure.
Yes. The ARJG46 is listed among Eaton Crouse-Hinds back boxes compatible with Arktite receptacles, and you can reference the Back Boxes for Arktite Receptacles catalog page for integration guidance and mounting recommendations.
Key specs include a 60A amperage rating, one hub back box style, cast aluminum material, trade size of 1-1/4 in, and dimensions of 5.69 in L, 4.69 in H, and 5.25 in W. UPC is 782274089409.
The ARJG46 is classified for Ordinary/Non-Hazardous Locations, allowing use in general industrial environments without special hazard-specific containment, while maintaining standard electrical safety practices.
Durable cast aluminum construction offers corrosion resistance and longevity; the single hub design speeds installation; compact dimensions fit tight panels; and the 60A rating supports robust distribution, reducing downtime and labor costs in installation and retrofit projects.
