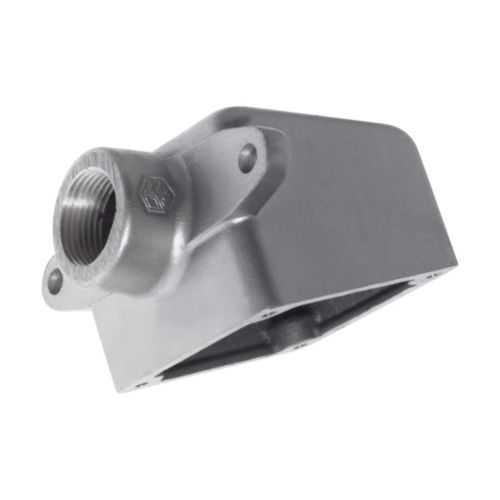

Eaton ARJG56 Back Box - 60A, One Hub, Cast Aluminum
Part Number: ARJG56
Quick Summary
ARJG56 back box by Eaton is a rugged enclosure designed for 1-1/2 in trade-size wiring hubs in industrial installations. Engineers often wrestle with durable back boxes that can handle 60A circuits while remaining straightforward to install beside receptacles. This unit is specified for Ordinary/Non-Hazardous Locations and is constructed from cast aluminum, delivering corrosion resistance and reliable service in demanding environments. For procurement and compliance, the UPC 782274089508 assists inventory and traceability, and the accompanying Eaton datasheets provide deeper certifications as required. The one hub design minimizes mounting complexity and speeds field wiring, helping installers save time on every project. In short, it pairs solid performance with practical installation in typical control panel and motor-branch setups.
Product Information
Extended Description
ARJG56 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARJG back box, 60A, One hub, Cast aluminum, 1-1/2"
Product Name
Eaton Crouse-Hinds series ARJG back box
Catalog Number
ARJG56
Product Length/Depth
5.75 in
Product Height
4.69 in
Product Width
5.25 in
Product Weight
2.15 lb
UPC
782274089508
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/2"
Amperage Rating
60A
Back box style
One hub
Material
Cast aluminum
60A amperage rating provides safe, code-compliant power distribution for mid-range loads, reducing the need for extra protection. This capability improves panel density and can lower BOM and enclosure counts. Ideal for control panels and branch circuits in general manufacturing environments. 1-1/2 inch trade size aligns with common conduit and receptacle sizing, minimizing rework during installation. A standardized footprint reduces compatibility risk across devices and accessories. Suitable for Arktite receptacle configurations and related back-box catalogs in integrated installations. One hub back box design simplifies mounting by offering a single entry point for wiring. The streamlined configuration reduces parts, alignment time, and field errors. Installers appreciate faster commissioning in panel and enclosure assemblies. Cast aluminum construction delivers rugged durability with corrosion resistance while remaining relatively light. This material choice supports long service life in non-hazardous environments and compact spaces. The durable housing also helps with heat dissipation and minimized deformation under load. Dimensions of 5.75 in length, 4.69 in height, and 5.25 in width provide predictable fit in standard panels. A weight of 2.15 lb supports manageable handling and shipping costs. Precise sizing assists layout planning and reduces rework during installation. Area classification Ordinary/Non-Hazardous Locations means the ARJG56 is suited for non-hazardous industrial environments. This reduces the need for specialist enclosures in many facilities and simplifies procurement. Verify your site requirements against a datasheet for any additional compliance notes. Compatibility with Arktite receptacles and related back boxes catalogs expands integration options. This broadens procurement choices while maintaining a consistent mounting footprint. Engineers benefit from combined recommendations in datasheets that streamline specifications.
Get a Quick Quote for a Eaton Crouse-Hinds ARJG56
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARJG56?
Enquire Now
FAQs
ARJG56 provides a 1-1/2 inch trade size back box with one hub, cast aluminum body, and a 60A rating, designed to align with Arktite receptacles and related accessories for straightforward mounting and consistent footprints. The one hub design reduces installation steps, while the aluminum housing supports durability in non-hazardous environments.
ARJG56 is rated for 60A and uses a 1-1/2 inch trade size. Its external dimensions are 5.75 inches in length, 4.69 inches in height, and 5.25 inches in width, with an approximate weight of 2.15 pounds. These specs support predictable fit in standard panels and ease of handling during installation.
ARJG56 is classified for Ordinary/Non-Hazardous Locations, making it suitable for many general industrial applications. The data provided highlights this area classification; additional certifications such as IP, CE, or UL listings are not specified here, so please consult the Eaton datasheets for any further regulatory notes or approvals required for your project.
The one hub configuration reduces the number of entry points and mounting steps, accelerating wiring runs and minimizing space conflicts in crowded enclosures. This translates to faster commissioning, easier splicing, and fewer potential mounting errors, especially in panel assemblies where space is at a premium.
The ARJG56 back box carries the UPC 782274089508, which aids barcode-driven inventory management, order accuracy, and traceability. When sourcing through distributors or internal procurement systems, linking the UPC to the model ARJG56 helps ensure you receive the correct Eaton Crouse-Hinds back box with the specified one hub cast aluminum design.
