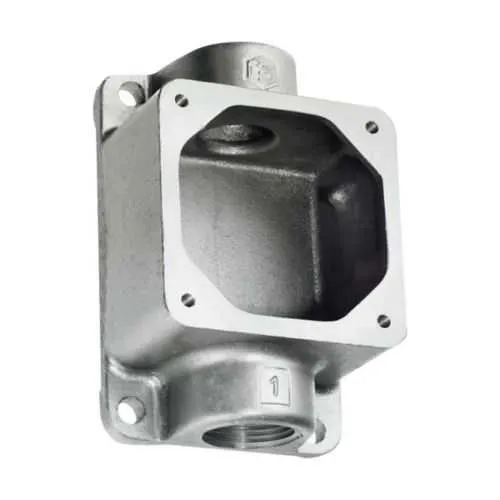

Eaton Crouse-Hinds ARRC33 Back Box - Through Feed
Part Number: ARRC33
Quick Summary
ARRC33 back box from Eaton Crouse-Hinds is a rugged enclosure for through-feed electrical connections in industrial panels. This solution reduces wiring complexity by providing a dedicated space for through-feed connections, lowering the risk of mis-wiring and rework. The design supports ordinary/non-hazardous locations and aligns with common electrical codes for safe, compliant installation. With a 1" trade size and 20A/30A amperage rating, ARRC33 delivers the necessary capacity within a compact form. By standardized mounting interfaces and durable cast aluminum construction, it offers predictable installation outcomes, easier maintenance, and long-term cost savings for panel builders and OEMs.
Product Information
Extended Description
ARRC33 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARRC back box, 20A/30A, Through feed, Cast aluminum, 1"
Product Name
Eaton Crouse-Hinds series ARRC back box
Catalog Number
ARRC33
Product Length/Depth
3.38 in
Product Height
5.31 in
Product Width
2.25 in
Product Weight
1.25 lb
UPC
782274089805
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1"
Amperage Rating
20A/30A
Back box style
Through feed
Material
Cast aluminum
Feature cast aluminum construction → Business Impact enhanced durability and corrosion resistance → Application harsh industrial environments where enclosure longevity matters. Feature through-feed design → Business Impact faster wiring completion and reduced panel-tackling errors → Application panel assemblies requiring streamlined through-feed routing. Feature 1" trade size with 20A/30A rating → Business Impact supports typical receptacles with adequate current capacity → Application for general-purpose electrical devices in control panels. Feature ordinary/non-hazardous location classification → Business Impact simplified compliance and reduced need for costly hazardous-location protection → Application in standard manufacturing floors and non-chemical environments. Feature compact dimensions (3.38 in depth, 5.31 in height, 2.25 in width) and weight of 1.25 lb → Business Impact easier handling and installation in tight panels → Application retrofit and OEM panel fitment with predictable space planning. Compatibility with Arktite receptacles ecosystem and Eaton catalogs → Business Impact streamlined procurement and established supply chain → Application for system integrators targeting consistent device compatibility.
Get a Quick Quote for a Eaton Crouse-Hinds ARRC33
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARRC33?
Enquire Now
FAQs
ARRC33 supports a 1" trade size with overall dimensions of 3.38 in depth, 5.31 in height, and 2.25 in width. When installing, ensure adequate clearance for through-feed wiring, verify compatibility with Arktite receptacles, and mount within standard panel assemblies using compatible brackets and hardware to maintain enclosure integrity.
No. The ARRC33 is rated for Ordinary/Non-Hazardous Locations. For hazardous environments, use enclosures designed to meet applicable safety standards or add protective housings to meet code requirements in your specific application.
Yes. The ARRC33 has an amperage rating of 20A/30A and a 1" trade size, making it compatible with common 20A and 30A receptacles used in industrial control panels. Always verify device dimensions and wiring gauge to ensure a proper fit.
The through-feed design simplifies wiring routing by providing a dedicated pathway for conductors, reducing step-and-rework in panel builds. This translates to shorter install times, lower labor costs, and more predictable field outcomes when wiring receptacles and devices in control panels.
Official specifications and catalogs are available on Eaton’s site: the Back Boxes for Arktite Receptacles catalog page and the Eaton ARRC33 datasheet. These resources provide dimensional data, installation guidelines, and compatibility notes to support procurement and design validation.
