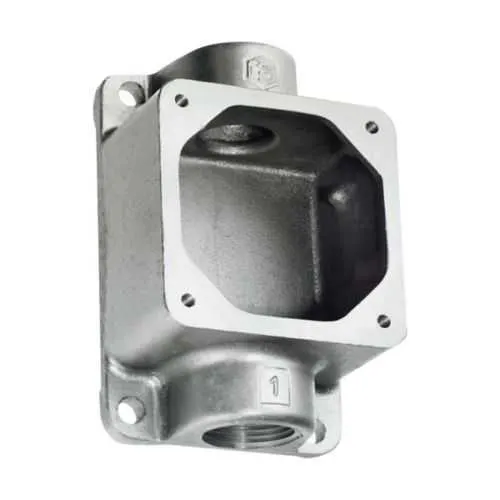

Eaton Crouse-Hinds ARRC56 Back Box - 60A Through-Feed
Part Number: ARRC56
Quick Summary
ARRC56 back box is a rugged, through-feed enclosure designed to house and route 60A circuits in standard industrial panels. The primary function is to provide a durable mounting and wiring pathway for Arktite receptacles in medium-power installations, enabling safer terminations in tight spaces. For engineers balancing space constraints with reliability, ARRC56 reduces panel footprint while maintaining access to conductors. This enclosure complies with area classifications for ordinary/non-hazardous locations, leveraging cast aluminum for strength and corrosion resistance. By aligning with 1-1/2" trade-size interfaces and the Eaton catalog, it streamlines procurement, accelerates installation, and minimizes field rework. The result is faster assembly, improved durability, and predictable performance in everyday industrial environments.
Product Information
Extended Description
ARRC56 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARRC back box, 60A, Through feed, Cast aluminum, 1-1/2"
Product Name
Eaton Crouse-Hinds series ARRC back box
Catalog Number
ARRC56
Product Length/Depth
4.25 in
Product Height
6.5 in
Product Width
3.13 in
Product Weight
2.25 lb
UPC
782274090108
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/2"
Amperage Rating
60A
Back box style
Through feed
Material
Cast aluminum
Feature: 60A amperage rating paired with a 1-1/2 inch trade size. Business Impact: Enables reliable power routing in standard panels without over-sizing enclosure space. Application: Ideal for control panels and Arktite receptacle configurations where medium-power feeds are required. Feature: Through-feed back box design. Business Impact: Simplifies conductor entry and exit, reducing install time and potential error. Application: Suited to long wiring runs and rapid field terminations in busy panels. Feature: Cast aluminum construction. Business Impact: Delivers corrosion resistance and durable performance with manageable weight, lowering maintenance and shipping costs. Application: Effective in indoor industrial environments with moderate exposure. Feature: Compact dimensions and predictable weight. Business Impact: Eases mounting in crowded enclosures and standardizes installation footprints. Application: Beneficial for retrofit projects and new builds in restricted spaces. Feature: Ordinary/Non-Hazardous Location classification. Business Impact: Supports regulatory alignment and reduces compliance risk in typical plants. Application: Suitable for standard plant environments and general enclosure deployments. Feature: Documentation and compatibility. Business Impact: Accelerates design approvals with readily available Eaton specs and catalog pages. Application: Use with Arktite receptacles and existing Eaton infrastructure for streamlined procurement.
Get a Quick Quote for a Eaton Crouse-Hinds ARRC56
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARRC56?
Enquire Now
FAQs
To install the ARRC56 back box, prepare a through-feed wiring configuration using a 1-1/2" trade size. Mount the aluminum enclosure in the panel with standard hardware, route conductors through the through-feed ports, and terminate connections per your control wiring diagram. The result is a secure, accessible entry point for Arktite receptacle assemblies without compromising panel integrity.
Yes, the ARRC56 back box is designed to support Arktite receptacles in standard installations. Its 1-1/2" trade size and through-feed style facilitate clean wiring runs and reliable receptacle terminations while maintaining a compact enclosure footprint suitable for typical panels.
ARRC56 is intended for ordinary/non-hazardous locations. This makes it appropriate for standard indoor industrial environments where exposure to only non-hazardous conditions is expected. The cast aluminum construction adds durability and corrosion resistance, supporting long service life in typical plants.
The ARRC56 back box measures 4.25 inches in length, 6.5 inches in height, and 3.13 inches in width, with a weight of 2.25 pounds. These dimensions enable predictable mounting within standard enclosures and help ensure a consistent fit with related components.
ARRC56 uses cast aluminum, providing corrosion resistance and durable performance with reduced maintenance needs. Its through-feed design minimizes field rework, while the 60A rating supports reliable power distribution in daily operations, contributing to lower maintenance costs and higher uptime in industrial panels.
