Eaton ARRH13 Back Box - 20A/30A Cast Aluminum One Hub
Part Number: ARRH13
Quick Summary
ARRH13 back box is a cast aluminum enclosure that protects electrical receptacles in ordinary, non-hazardous locations. Engineers and installers often face cramped spaces, corrosion risk, and wiring complexity in control panels; this back box addresses those challenges with a compact, durable solution. Area classification confirms suitability for Ordinary/Non-Hazardous Locations, aligning with typical industrial and building automation environments. With a 20A/30A amperage rating, 1/2 trade size, and a single hub, it streamlines wiring, reduces parts, and speeds installation. For procurement teams, ARRH13 offers predictable compatibility with Eaton Crouse-Hinds receptacles and robust aluminum construction that supports long-term reliability in demanding settings.
Product Information
Extended Description

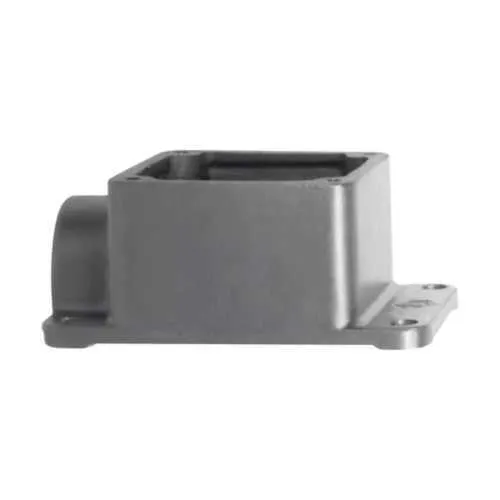

ARRH13 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARRH back box, 20A/30A, One hub, Cast aluminum, 1/2"
Product Name
Eaton Crouse-Hinds series ARRH back box
Catalog Number
ARRH13
Product Length/Depth
3.38 in
Product Height
5.31 in
Product Width
2.25 in
Product Weight
1.04 lb
UPC
782274090207
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1/2"
Amperage Rating
20A/30A
Back box style
One hub
Material
Cast aluminum
Feature: Cast aluminum body. Business impact: The cast aluminum construction provides corrosion resistance and durability, reducing maintenance cycles in harsh industrial environments. Application: Ideal for control panels and enclosures where mechanical protection and weight management matter. Feature: 1/2 in trade size compatibility with 20A/30A ratings. Business impact: Supports common receptacles and standard conduits, reducing adapters and field fabrication. Application: Panel wiring in compact installations with minimal parts. Feature: One hub back box design. Business impact: Simplifies wiring, minimizes junctions, and speeds installation. Application: Receptacle mounting in constrained panels. Feature: Compact dimensions and light weight. Business impact: Maximizes panel real estate and ease of handling during installation. Application: Small industrial enclosures and budget-conscious projects. Feature: Ordinary/Non-Hazardous Area Classification. Business impact: Ensures regulatory alignment and reduces compliance risk. Application: Standard industrial and commercial environments with non-hazardous locations.
