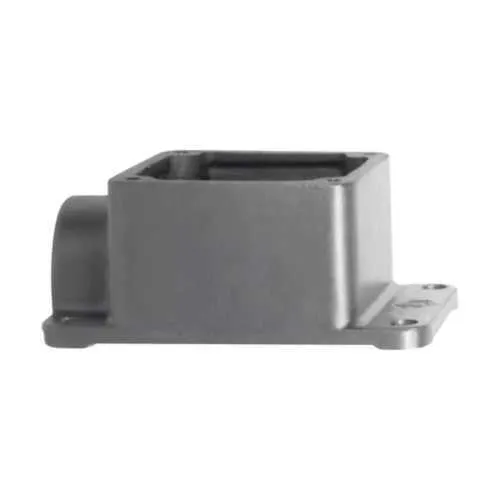

Eaton ARRH56 Back Box – 60A, 1-1/2in, Ordinary Locations
Part Number: ARRH56
Quick Summary
ARRH56 back box by Eaton Crouse-Hinds provides a rugged enclosure for 60A terminations in industrial panels. Installers often struggle with boxes that crack, corrode, or don’t fit in tight installations. This ARRH56 is rated for Ordinary/Non-Hazardous Locations and uses a cast aluminum body for durability; the One Hub design supports clean, single-access wiring while minimizing field adjustments. Its 1-1/2 inch trade size and compact footprint help maximize panel space without sacrificing protection. By combining robust construction with straightforward mounting, it reduces maintenance cycles, speeds up wiring, and lowers total installed cost in standard industrial environments.
Product Information
Extended Description
ARRH56 Eaton Crouse-Hinds: Eaton Crouse-Hinds series ARRH back box, 60A, One hub, Cast aluminum, 1-1/2"
Product Name
Eaton Crouse-Hinds series ARRH back box
Catalog Number
ARRH56
Product Length/Depth
3.13 in
Product Height
6.5 in
Product Width
4.25 in
Product Weight
2.05 lb
UPC
782274090702
Area classification
Ordinary/Non-Hazardous Locations
Trade size
1-1/2"
Amperage Rating
60A
Back box style
One hub
Material
Cast aluminum
Feature: 60A amperage rating and 1-1/2 inch trade size. Business Impact: Supports standard power distribution needs without oversized enclosures, reducing material costs and panel footprint. Application: Ideal for control panels and machinery junctions in normal industrial settings. Feature: Cast aluminum construction. Business Impact: Delivers durability with lightweight handling and corrosion resistance, lowering maintenance and replacement frequency. Application: Suitable for harsh environments within ordinary locations where durability matters. Feature: One hub back box design. Business Impact: Simplifies wiring runs and reduces installation time by providing a single access point for terminations. Application: Fast deployment in compact panels and equipment housings. Feature: Precise dimensions and weight. Business Impact: 3.13 in depth, 6.5 in height, 4.25 in width, and 2.05 lb weight enable easier fitment in dense enclosures and adjustable mounting. Application: Space-constrained control panels. Feature: Product compatibility and compliance cues. Business Impact: UPC 782274090702 and ordinary/non-hazardous classification provide straightforward procurement and predictable performance. Application: Standard industrial deployments requiring reliable enclosure performance.
Get a Quick Quote for a Eaton Crouse-Hinds ARRH56
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds ARRH56?
Enquire Now
FAQs
ARRH56 provides a one hub back box design with a 1-1/2 inch trade size, allowing straightforward wiring access from a single point. Its compact 3.13 in depth, 6.5 in height, and 4.25 in width support installation in tight panel spaces, while the 2.05 lb weight simplifies handling and mounting during assembly.
ARRH56 is specified for Ordinary/Non-Hazardous Locations, making it appropriate for standard industrial environments. The data set does not indicate certifications for hazardous locations or additional standards; verify site requirements and consult the manufacturer for any supplementary approvals if your application has stricter regulatory needs.
ARRH56 is a cast aluminum back box with dimensions 3.13 inches in depth, 6.5 inches in height, and 4.25 inches in width. It weighs approximately 2.05 pounds and uses a cast aluminum construction for durability and reduced weight compared with steel alternatives.
ARRH56 supports a 60A amperage rating and a 1-1/2 inch trade size, aligning with common branch-circuit and device connection requirements in many industrial control panels and equipment enclosures.
Technical details are available via Eaton's catalog page for back boxes and the ARRH56 specification sheet. You can download the Back Boxes for Arktite Receptacles catalog page and the Eaton Specification Sheet for ARRH56 to access full dimensions, mounting guidance, and compliance notes.
