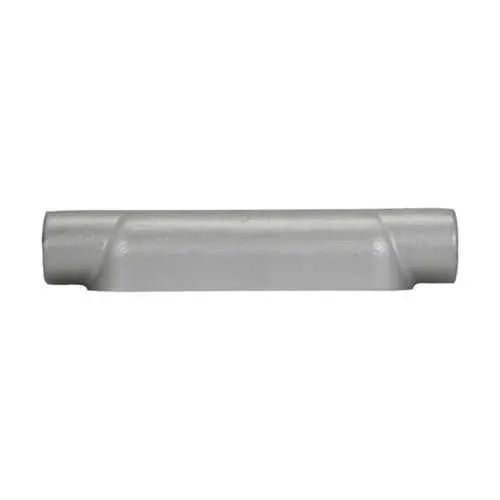

Eaton Crouse-Hinds BC7 Condulet B Mogul - Feraloy iron alloy
Part Number: BC7
Quick Summary
BC7 Condulet B Mogul conduit body provides rugged enclosure for complex conduit runs in industrial electrical installations. Engineers often face space constraints and misalignment when routing cables through tight panels and crowded enclosures. This BC7 model is NEC/CEC compliant, UL-certified for ordinary locations, and sized for 2-1/2" trade runs. With its Feraloy iron alloy body and compact geometry, it supports safer, faster installs and lower lifecycle costs, essential for automation projects. Its 18.38 in length, 3.63 in height, and 4.25 in width accommodate multiple conduits, while compatibility with Eaton's catalog simplifies procurement and field deployment. Dimensionally consistent and robust, BC7 is a dependable choice for modern automation environments.
Product Information
Extended Description
BC7 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet B mogul conduit body, Feraloy iron alloy, C shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet B mogul conduit body
Catalog Number
BC7
Product Length/Depth
18.38 in
Product Height
3.63 in
Product Width
4.25 in
Product Weight
12.8 lb
UPC
782274101200
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
C
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series BC, BLB, BT, BUB, BUBXL Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows UL certification
Mogul Conduit Bodies and Pulling Elbows UL certification
Eaton Specification Sheet - BC7
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy construction delivers exceptional strength and abrasion resistance, enhancing durability in demanding environments. This translates to longer service life, lower maintenance costs, and fewer unexpected outages in automated plants. The BC7 Condulet B Mogul supports rugged pull points, easy access for inspections, and reliable conduit routing in busy switchgear and machine cabinets. The C-shaped mogul body optimizes access to pull cables with a compact footprint, supporting 2-1/2 inch trade size conduits while maintaining install space efficiency. This combination improves installation speed, reduces mis-wires, and simplifies preventive maintenance during panel upgrades for automation lines. Specific dimensions provide predictable field fit and mounting rigidity, with a length of 18.38 in, height of 3.63 in, and width of 4.25 in, ensuring compatibility with standard enclosures. A 12.8 lb weight keeps handling manageable for one-person installations, minimizing downtime. Compliance with NEC/CEC and ORDINARY/Non-Hazardous location criteria reduces audit risk and accelerates approvals. Catalog compatibility and access to bend-radius charts further streamline design validation and field installation, delivering tangible lifecycle cost savings.
Get a Quick Quote for a Eaton Crouse-Hinds BC7
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BC7?
Enquire Now
FAQs
Begin by confirming the 2-1/2 inch trade size and alignment with existing conduits. Secure the Condulet to the mounting surface using appropriate hardware, connect conduits to the body ports, and tighten fittings to achieve a clean, pull-safe junction. Use the bend-radius and cubic-capacity guidance from Eaton’s technical bulletins to avoid overfilling the enclosure and maintain compliance.
Verify the trade size of 2-1/2 inches, C-shaped Mogul body, material specified as Feraloy iron alloy, overall dimensions (18.38 in length, 3.63 in height, 4.25 in width), and weight (12.8 lb). Also ensure NEC/CEC compliance and Ordinary/Non-Hazardous Location rating to match the project’s installation environment.
Yes. BC7 is rated for Ordinary/Non-Hazardous Locations and adheres to NEC/CEC standards. This makes it appropriate for factory floors, control rooms, and indoor plant environments where non-hazardous conditions prevail, while UL certifications support cross-border compliance during audits.
BC7 aligns with NEC/CEC standards and is UL-certified for ordinary locations in both the US and Canada. These certifications help validate design integrity, safety, and regulatory compliance, accelerating project approvals and ensuring reliability in industrial automation contexts.
BC7’s Feraloy iron alloy construction offers durable service life, reducing maintenance frequency and replacement costs. Its robust pull-point design speeds field wiring and inspections, minimizing downtime during upgrades. Overall, the part supports faster commissioning, lower lifecycle costs, and improved system reliability in automation environments.
