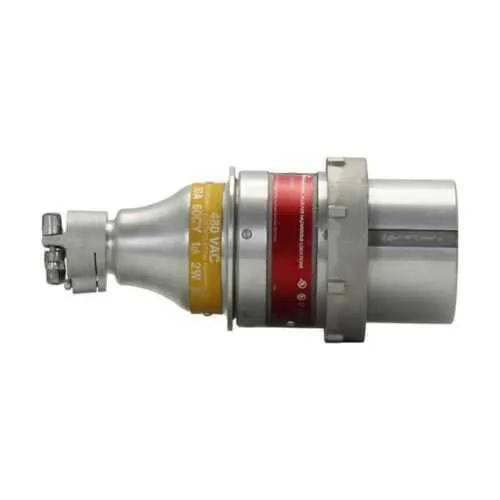

Eaton Crouse-Hinds BHP10487D Plug - Hazardous Locations
Part Number: BHP10487D
Quick Summary
BHP10487D plug by Eaton Crouse-Hinds delivers rugged, safe power connections for equipment in hazardous locations. Maintenance teams often struggle with connectors that corrode or fail in explosive atmospheres, leading to downtime and costly repair. This unit carries NEC/CEC certifications and hazardous-location ratings including Class I, Division 1 and 2, Class II Division 1 and 2, and Class III, along with NEMA protection ratings 3, 4, 7, 9, 12, ensuring compliance and robust performance. Designed for 480 Vac systems with 60-400 Hz service and a copper-free aluminum housing, it reduces maintenance cycles and extends service life. The combination of proven durability and standardized installation translates to faster onboarding, safer operation, and lower total cost of ownership for industrial facilities.
Product Information
Extended Description
BHP10487D Eaton Crouse-Hinds: Eaton Crouse-Hinds series BHP plug, 100A, 1.375-1.875" cable diameter, Three-wire, four-pole, Brass, 60-400 Hz, Style 2, Copper-free aluminum, 480 Vac
Product Name
Eaton Crouse-Hinds series BHP plug
Catalog Number
BHP10487D
Product Length/Depth
10.43 in
Product Height
5 in
Product Width
5 in
Product Weight
5.2 lb
UPC
782274045436
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9 12
Amperage Rating
100A
Configuration
Three-wire, four-pole
Cable diameter
1.375-1.875 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles UL certification
BHR and SRD Explosionproof Interlock Receptacles UL certification
IF 119 - BHR Interlock Receptacles
Eaton Specification Sheet - BHP10487D
Feature: 100A amperage rating. Business Impact: Enables robust power delivery for high-current loads, reducing panel complexity and potential faults. Application: Heavy-duty motors and conveyors in hazardous locations. Feature: Cable diameter range of 1.375-1.875 inches. Business Impact: Accommodates common industrial cables without adapters, simplifying field terminations and reducing inventory. Application: On-site terminations near pumps, fans, and gearboxes in hazardous environments. Feature: Grounding style Style 2. Business Impact: Provides reliable grounding paths for safe fault clearing, improving personnel protection. Application: Installations requiring proven grounding schemes in explosive atmospheres. Feature: Copper-free aluminum housing. Business Impact: Lighter weight and corrosion resistance extend service life and reduce installation effort. Application: Outdoor and chemically harsh plants, offshore facilities, and chemical processing lines. Feature: 60-400 Hz and 480 Vac ratings. Business Impact: Broad electrical compatibility supports VFDs and diverse power systems, reducing the need for multiple connector SKUs. Application: Industrial automation, pumps, conveyors, and rotating equipment. Feature: NEMA 3/4/7/9/12 ratings and hazardous-location certifications. Business Impact: Tough enclosure protection against dust, water, and environmental hazards, plus compliance with NEC/CEC. Application: Outdoor switchgear, plant floors, and harsh spaces in mining, oil & gas, and manufacturing.
Get a Quick Quote for a Eaton Crouse-Hinds BHP10487D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BHP10487D?
Enquire Now
FAQs
To install the BHP10487D, follow the IF 119 instruction sheet and use appropriate termination hardware for a three-wire, four-pole configuration. Ensure the cable diameter falls within 1.375-1.875 in, maintain a proper grounding connection (Style 2), and verify 480 Vac supply within the rated 60-400 Hz range. For safety, complies with NEC/CEC guidelines and hazardous-location standards during mounting and termination.
The BHP10487D supports 100A amperage, 480 Vac voltage, and 60-400 Hz frequency. It features a cable diameter range of 1.375-1.875 in, is configured as three-wire, four-pole, and uses brass contacts with a copper-free aluminum housing. Grounding is Style 2, aligning with hazardous-location installation practices.
Yes. The BHP10487D is designed for 480 Vac systems and supports a wide frequency range of 60-400 Hz, making it suitable for diverse industrial drives and machinery operating under variable frequency conditions in hazardous environments.
The BHP10487D is NEC/CEC compliant and rated for Hazardous/Classified Locations, including Class I, Division 1 and 2, Class II Division 1 and 2, and Class III. It carries NEMA ratings 3, 4, 7, 9, 12, and UL-related certification references, providing broad regulatory coverage for industrial installations.
The copper-free aluminum housing reduces galvanic corrosion and weight, while the brass contacts deliver durable, low-resistance connections. These factors translate to longer service life, reduced maintenance cycles, fewer field failures, and lower total cost of ownership in harsh environments such as coatings, mining, and chemical processing plants.
