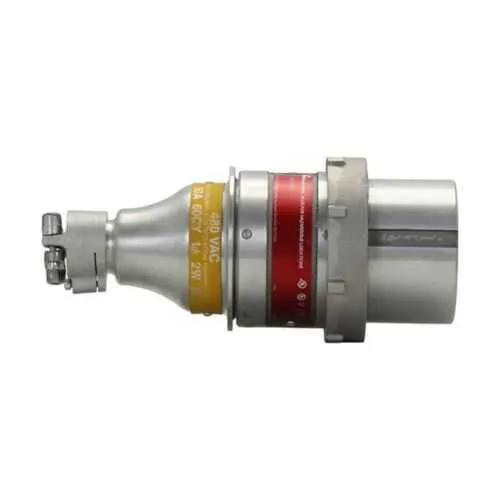

Eaton Crouse-Hinds BHP3483D Plug - Hazardous Locations
Part Number: BHP3483D
Quick Summary
BHP3483D is a rugged Eaton Crouse-Hinds plug for hazardous-location power connections in industrial plants. Maintenance teams struggle with durable, code-compliant connectors that survive harsh environments and minimize downtime. It meets NEC/CEC standards for Hazardous/Classified Locations, including Class I, Division 1 and 2, Class II and III, and carries NEMA ratings 3, 4, 7, 9 and 12 for reliable protection. With a 30 A, 480 Vac rating and cable compatibility from 0.500 to 0.875 in, this plug delivers safe, high-current capability in demanding installations. The copper-free aluminum housing and brass contact combination provides lightweight durability, while straightforward installation supports fast procurement, reduced field rework, and longer service life.
Product Information
Extended Description
BHP3483D Eaton Crouse-Hinds: Eaton Crouse-Hinds series BHP plug, 30A, 0.500-0.875" cable diameter, Three-wire, four-pole, Brass, 60-400 Hz, Style 2, Copper-free aluminum, 480 Vac
Product Name
Eaton Crouse-Hinds series BHP plug
Catalog Number
BHP3483D
Product Length/Depth
10.43 in
Product Height
5 in
Product Width
5 in
Product Weight
5.22 lb
UPC
782274045429
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
NEMA Rating
3 4 7 9 12
Amperage Rating
30A
Configuration
Three-wire, four-pole
Cable diameter
0.500-0.875 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles Canadian certification
BHR and SRD Explosionproof Interlock Receptacles Canadian certification
IF 119 - BHR Interlock Receptacles
Eaton Specification Sheet - BHP3483D
Feature: 30 A at 480 Vac with three-wire, four-pole configuration. Business Impact: Enables safe, high-current power distribution for motors, pumps, and conveyors in demanding environments, reducing the risk of overheating and electrical faults. Application: Ideal for industrial plants with heavy equipment that must meet strict hazardous-location codes. Feature: Cable diameter compatibility of 0.500–0.875 in. Business Impact: Ensures proper seal, strain relief, and reliable performance without field re-termination. Application: Field wiring where connector integrity and ingress protection are critical to uptime. Feature: Style 2 grounding and robust brass contact. Business Impact: Improves fault clearance and grounding reliability, lowering maintenance costs and enhancing operator safety. Application: Enclosures and panel assemblies in hazardous areas. Feature: Copper-free aluminum housing with brass contacts. Business Impact: Delivers corrosion resistance with lighter weight, extending service life and simplifying handling during installation. Application: Outdoor or chemically aggressive environments common in refineries and chemical processing. Feature: Dimensions and weight (10.43 in L × 5 in H × 5 in W; 5.22 lb). Business Impact: Predictable form factor aids enclosure fitment and reduces installation time. Application: Quick integration into existing electrical racks and wiring schemes. Feature: Certifications and standards coverage (NEC/CEC, NEMA 3/4/7/9/12). Business Impact: Simplifies procurement and compliance proof, reducing risk during audits and commissioning. Application: Projects requiring robust hazardous-location certification packages and traceable documentation.
Get a Quick Quote for a Eaton Crouse-Hinds BHP3483D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BHP3483D?
Enquire Now
FAQs
The BHP3483D is designed for hazardous environments requiring NEC/CEC compliance. It supports Class I, Division 1 and 2, Class II and III locations with a 30A, 480 Vac rating and a cable diameter range of 0.500–0.875 in, making it ideal for heavy industrial motors, pumps, and conveyors that must operate reliably in chemical plants, refineries, and similar facilities.
Key specs include amperage 30A, voltage rating 480 Vac, frequency range 60–400 Hz, configuration three-wire four-pole, cable diameter 0.500–0.875 in, and grounding style Style 2. The contact material is brass and the housing is copper-free aluminum, providing durability and corrosion resistance.
Yes. The BHP3483D meets NEC/CEC standards for Hazardous/Classified Locations and is rated under NEMA 3, 4, 7, 9, and 12. This combination supports safe operation in challenging environments and aligns with industry-wide compliance and safety expectations.
The plug is designed for straightforward field wiring with a compatible 0.500–0.875 in cable range and a compact 10.43 in length. Its three-wire, four-pole configuration and Style 2 grounding simplify panel and enclosure integration, enabling reliable connections with minimal rework and fast commissioning in hazardous locations.
You can access the Eaton specification sheet for BHP3483D, plus catalogs and installation sheets (IF 119 for interlock receptacles is available for related products). Certification reports for Canada and general product datasheets are also provided to support regulatory submissions and supplier audits.
