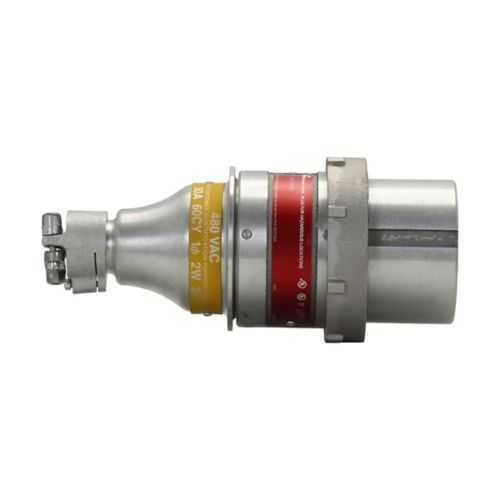

Eaton BHP6483D Plug - 60A, 480V, Hazardous Locations
Part Number: BHP6483D
Quick Summary
Eaton BHP6483D plug provides rugged, hazardous-location power connections for industrial machinery and process equipment. In harsh environments, unreliable connectors and non-compliant interlocks cause downtime and safety concerns. This model meets NEC/CEC standards and hazardous-location ratings, including Class I, Division 1; Class II, Division 2; and Class III, plus NEMA configurations 3, 4, 7, 9, 12 for broad installation options. Designed for 60A at 480V with a frequency range of 60-400 Hz, it uses copper-free aluminum housing and brass contacts, delivering durable service in demanding environments. The unit's 0.500-0.875 inch cable diameter range supports flexible cable choices, while its 5.22 lb weight aids on-site handling and field installation. This combination minimizes downtime and supports compliant, safe power distribution across OEM and maintenance programs.
Product Information
Extended Description
BHP6483D Eaton Crouse-Hinds: Eaton Crouse-Hinds series BHP plug, 60A, 0.500-0.875" cable diameter, Three-wire, four-pole, Brass contacts, 60-400 Hz, Style 2, Copper-free aluminum, 480 Vac
Product Name
Eaton Crouse-Hinds series BHP plug
Catalog Number
BHP6483D
Product Weight
5.22 lb
UPC
782274041308
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 2 Class III Class I, Division 2 Class II, Division 1
NEMA Rating
3 4 7 9 12
Amperage Rating
60A
Configuration
Three-wire, four-pole
Cable diameter
0.500-0.875 in
Grounding style
Style 2
Voltage rating
480 Vac
Frequency rating
60-400 Hz
Material
Copper-free aluminum
Contact material
Brass
BHR and SRD Explosionproof Interlock Receptacles catalog page
BHR and SRD Explosionproof Interlock Receptacles Canadian certification
BHR and SRD Explosionproof Interlock Receptacles Canadian certification
IF 119 - BHR Interlock Receptacles
Eaton Specification Sheet - BHP6483D
60A at 480 Vac with a broad frequency range of 60-400 Hz supports heavy-duty motors, pumps, and process-control panels, reducing the need for multiple connectors across equipment. The three-wire, four-pole configuration simplifies wiring and enhances fault-path safety in control cabinets, speeding commissioning. Style 2 grounding provides a robust, reliable ground path, boosting enclosure safety and compliance in hazardous environments. Copper-free aluminum housing lowers weight and improves corrosion resistance, while brass contacts ensure low resistance and durable mating performance, translating to lower maintenance costs and longer service life. The 0.500-0.875 inch cable diameter range accommodates common field cables, enabling quicker installations and fewer adapters. NEC/CEC compliance and NEMA ratings 3, 4, 7, 9, 12 deliver regulatory confidence and uptime in hazardous locations. Compatibility with BHR and SRD explosion-proof interlock receptacles simplifies system integration, backed by installation sheets and datasheets for fast field deployment. With a 5.22 lb weight, handling on site is easier and safer, supporting efficient panel builds and service routines.
Get a Quick Quote for a Eaton Crouse-Hinds BHP6483D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BHP6483D?
Enquire Now
FAQs
The BHP6483D provides a 60A current rating, 480 Vac voltage, and a frequency range of 60-400 Hz. It features a three-wire, four-pole configuration, copper-free aluminum housing, brass contacts, and a Style 2 grounding arrangement. These specifications support heavy-duty equipment and dynamic industrial applications while maintaining safe, reliable power distribution.
Yes. The BHP6483D plug is designed for hazardous locations and complies with NEC/CEC standards. It offers hazardous-location ratings including Class I, Division 1; Class II, Division 2; and Class III, along with NEMA ratings 3, 4, 7, 9, 12, ensuring robust protection and regulatory alignment for demanding environments.
The BHP6483D is designed to mate with Eaton BHR and SRD explosion-proof interlock receptacles. This compatibility simplifies control-system integration, supports safe interlocking sequences, and is reinforced by Eaton installation sheets and datasheets to streamline deployment.
Installation benefits include a straightforward three-wire, four-pole configuration, Style 2 grounding for solid fault protection, and a cable diameter range of 0.500-0.875 inches for flexible field cabling. The unit weighs 5.22 lb, aiding handling during panel assembly, with proven compatibility with common interlock receptacles to accelerate commissioning.
Datasheets and installation instructions are available through Eaton’s catalog pages and instruction sheets. Refer to the BHP6483D specification sheet, IF 119 interlock instructions, and interlock receptacle resources for comprehensive wiring diagrams, safety notes, and mounting guidelines to ensure compliant, efficient field deployment.
