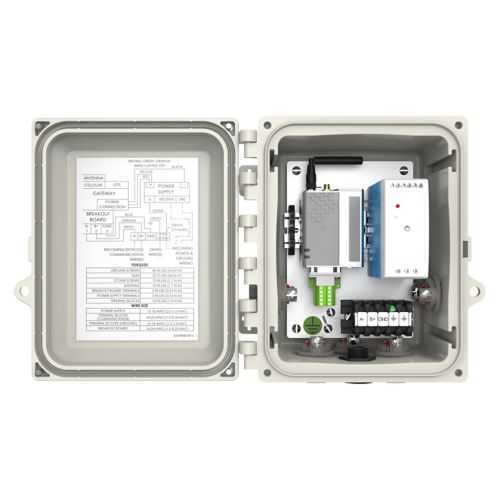

Eaton CHG BLI-CHG-4X-S-6 Enclosed Gateway - IP66
Part Number: BLI-CHG-4X-S-6
Manufacturer
Eaton Crouse-Hinds
Part number
BLI-CHG-4X-S-6
Category
Quick Summary
Eaton CHG enclosed gateway is a rugged Modbus RTU bridge for harsh industrial control panels. Engineers often struggle with unreliable field connections, dust ingress, and thermal stress that disrupt data flow. IP66 and NEMA 4X protection, along with NEC/CEC compliance, help ensure safe operation in ordinary/non-hazardous locations. By delivering reliable RS-485 serial communications and a durable enclosure, this gateway reduces wiring faults and installation time, while enabling scalable integration with existing Modbus networks. For OEMs and service providers, its broad voltage range and conduit hubs simplify panel design and field upgrades, supporting cost-efficient upgrades to legacy systems and remote monitoring deployments.
Product Information
Extended Description
BLI-CHG-4X-S-6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CHG industrial enclosed gateway, 0.064A, Modbus RTU, 50/60 Hz, -20°C to +47°C, RS-485 serial interface, (7) 1/2" Myers hubs, 100-240 VAC
Product Name
Eaton Crouse-Hinds series CHG enclosed gateway
Catalog Number
BLI-CHG-4X-S-6
Product Length/Depth
8.88 in
Product Height
9.63 in
Product Width
5.86 in
Product Weight
6 lb
UPC
786689806491
Area Classification
Ordinary/Non-Hazardous Locations
Standards Type
NEC/CEC
NEMA rating
4X
Ingress Protection (IP) Ratings
IP66
Communication
Modbus RTU
Serial interface
RS-485
Operating Temperature
-20°C to +47°C
Voltage rating
100-240 VAC
Amperage Rating
0.064 A
Current rating - max
0.064 A
Frequency rating
50/60 Hz
Special features
(7) 1/2" Myers hubs
Crouse-Hinds series CHG Harsh and Hazardous Gateways brochure
Crouse-Hinds series CHG Harsh Industrial Gateways catalog page
CHG Harsh and Hazardous Gateways Canadian certification
CHG Harsh and Hazardous Gateways Canadian certification
Crouse-Hinds series CHG Harsh and Hazardous Gateways FAQs
Brightlayer Industrial Remote Monitoring Application - Quick Start Guide
Feature: IP66/NEMA 4X enclosure provides robust protection against dust, water spray, and corrosion. Business Impact: minimizes downtime and maintains data integrity in wet or dusty environments, lowering maintenance costs. Application: ideal for machinery control panels and outdoor enclosures in manufacturing, water/wastewater, and marine settings. Feature: Modbus RTU over RS-485 interface ensures reliable serial communications. Business Impact: seamless integration with existing PLCs and smart devices, reducing engineering time and wiring errors. Application: supports scalable industrial networks and remote monitoring. Feature: Universal 100-240 VAC power input with a current rating of 0.064 A. Business Impact: simplifies power budgeting and enables single-source procurement, lowering installation costs. Application: suitable for diversified panel cabinets and retrofit projects. Feature: Operating temperature range from -20°C to +47°C. Business Impact: expands usable locations and reduces climate-control requirements, increasing uptime. Application: field installations in temperature-variant facilities such as outdoor racks and shipboard panels. Feature: (7) 1/2" Myers hubs for cable entry. Business Impact: simplifies wiring, routing, and strain relief, speeding up installation and future upgrades. Application: compatible with standard conduit systems in harsh environments. Feature: NEC/CEC compliance and IP66/NEMA 4X ratings provide regulatory assurance. Business Impact: supports compliance-driven projects and risk reduction in non-hazardous locations. Application: critical for industrial automation programs requiring formal standards alignment. Feature: Compact dimensions (8.88 in L × 9.63 in H × 5.86 in W) and 6 lb weight. Business Impact: easy mounting in crowded panels and minimal space impact, reducing enclosure costs. Application: retrofit into existing switchgear and control cabinets with limited space. Feature: Included installation literature and FAQs streamline onboarding. Business Impact: accelerates start-up, reduces field support visits, and shortens time-to-value. Application: engineering teams deploying CHG gateways across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds BLI-CHG-4X-S-6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BLI-CHG-4X-S-6?
Enquire Now
FAQs
The gateway features an IP66/NEMA 4X enclosure designed for ordinary/non-hazardous locations, with seven 1/2" Myers hubs for conduit entry. Its dimensions (8.88 in L × 9.63 in H × 5.86 in W) support surface or panel mounting in most control cabinets, while maintaining accessible wiring access for maintenance and upgrades.
Yes. The product provides a Modbus RTU communication interface via RS-485, enabling straightforward integration with existing PLCs and RTU devices without replacing current field devices or control logic.
This model is rated for Ordinary/Non-Hazardous Locations and offers IP66/NEMA 4X protection, which is ideal for harsh environments but not certified for hazardous area classifications. For truly hazardous locations, verify specific local codes and explore CHG variants designed for such applications.
You can access the CHG gateway brochures, the CHG industrial gateways catalog page, FAQs, and a Quick Start Guide. These resources cover installation steps, wiring diagrams, and regulatory considerations to speed up deployment.
The rugged enclosure and reliable Modbus RTU/RS-485 communications reduce field troubleshooting and downtime. Low power draw (0.064 A) and a broad voltage range simplify panel design, while documented materials shorten onboarding—contributing to faster project payback and lower ongoing maintenance costs.
