Eaton BT5 Condulet B Mogul Conduit Body - NEC/CEC
Part Number: BT5
Quick Summary
Condulet B Mogul Conduit Body BT5 provides reliable conduit terminations for armored or flexible conduit in industrial control panels. Many installations struggle with limited space, difficult wiring access, and corrosion-prone fittings that drive downtime. This unit meets NEC/CEC standards and is certified for Ordinary/Non-Hazardous locations, ensuring safe, code-compliant connections. For OEMs and maintenance teams, BT5 reduces installation time and supports standard 1-1/2 inch trade size conduits, delivering measurable efficiency gains and lower total cost of ownership. Built from Feraloy iron alloy, it offers durability in harsh environments, ensuring long service life with minimal maintenance.
Product Information
Extended Description

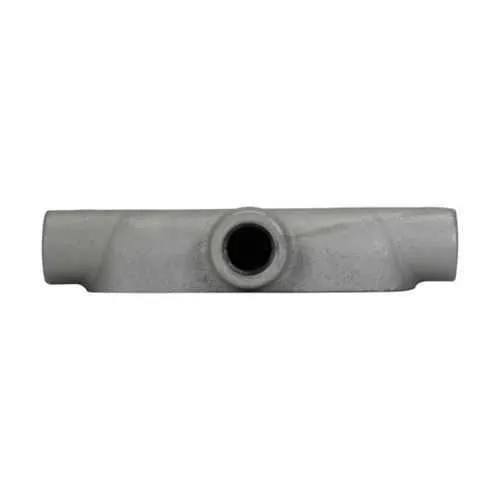

BT5 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet B mogul conduit body, Feraloy iron alloy, T shape, 1-1/2"
Product Name
Eaton Crouse-Hinds series Condulet B mogul conduit body
Catalog Number
BT5
Product Length/Depth
13.75 in
Product Height
4.06 in
Product Width
2.56 in
Product Weight
3.35 lb
UPC
782274107806
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
T
Trade size
1-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series BC, BLB, BT, BUB, BUBXL Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Eaton Specification Sheet - BT5
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction provides a rugged, corrosion-resistant housing. Business Impact: Extends service life in harsh environments and reduces replacement costs. Application: Suitable for outdoor installations and factory floors where moisture and impact are common. Feature: 1-1/2 inch trade size with a T-shaped Mogul design. Business Impact: Enables seamless compatibility with standard conduit runs and fittings, shortening assembly time. Application: Ideal for motor control centers and panel enclosures requiring a reliable 1-1/2" connection. Feature: Condulet B Mogul configuration simplifies access for pulling and wiring. Business Impact: Accelerates wiring and testing, lowering labor costs and downtime. Application: Effective in tight spaces and overhead installations where pulling space is limited. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location certification. Business Impact: Reduces compliance risk and inspection delays, ensuring code-ready installations. Application: Perfect for general purpose electrical installations in non-hazardous environments. Feature: Compact footprint with precise dimensions (13.75 in length, 4.06 in height, 2.56 in width) and 3.35 lb weight. Business Impact: Easier mounting in crowded panels and equipment racks, improving labor efficiency. Application: Suitable for retrofit projects and new builds where space is at a premium. Feature: Clear documentation and compatibility with Eaton product pages and specification sheets. Business Impact: Speeds procurement and ensures accurate part matching, reducing ordering errors. Application: Procurement workflows benefit from quick reference to BT5 specifications and catalog pages.
Get a Quick Quote for a Eaton Crouse-Hinds BT5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BT5?
Enquire Now
FAQs
BT5 uses a standard 1-1/2in trade size and the Mogul B configuration, which aligns with Eaton’s Condulet family and common conduit components. This compatibility simplifies sourcing, reduces the need for adapters, and speeds on-site assembly while maintaining a secure, code-compliant seal for armored or flexible conduits.
Key specs include 13.75 in length, 4.06 in height, 2.56 in width, and a weight of 3.35 lb, with material defined as Feraloy iron alloy. The product is rated for Ordinary/Non-Hazardous locations and complies with NEC/CEC standards, ensuring appropriate fit and compliance for most non-hazardous industrial panels.
Yes. BT5 is designed for general purpose use in non-hazardous environments and supports standard 1-1/2in conduit runs common in motor control centers. Its sturdy ferrous alloy body and modular Condulet design facilitate reliable terminations and easier maintenance in MCCs and panel assemblies.
BT5 carries NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations. This combination helps ensure regulatory acceptance in standard industrial facilities and reduces the risk of inspection or commissioning delays during installation.
The BT5 delivers faster installations due to its Mogul B design, easier wiring access, and durable feraloy construction, leading to reduced labor time and fewer replacements. Over the project lifecycle, this translates to lower maintenance costs and improved uptime in non-hazardous industrial environments.
