Eaton BT9 Condulet B Mogul Conduit Body - NEC/CEC
Part Number: BT9
Quick Summary
BT9 Condulet B mogul conduit body is a rugged, high‑performance component designed to connect and adapt large-diameter conduits in industrial power distribution applications. Installing conduit bodies can be time-consuming and space-constrained, so a reliability-focused, easy-to-wire solution matters. This BT9 aligns with NEC/CEC standards and is suitable for Ordinary/Non-Hazardous Locations, with Canadian certification documentation available for added regulatory assurance. By leveraging this robust fitting, you reduce field rework, improve maintenance access, and strengthen compliance while keeping downstream wiring costs predictable.
Product Information
Extended Description

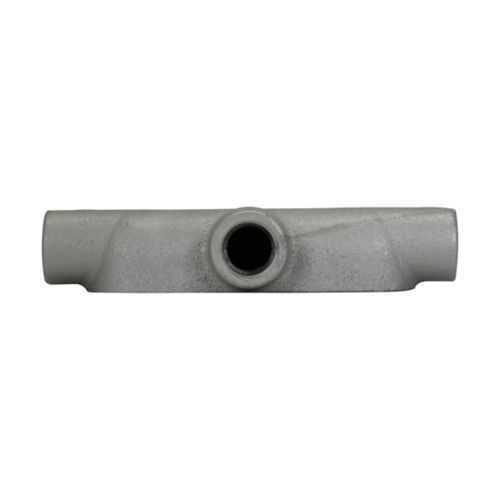

BT9 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet B mogul conduit body, Feraloy iron alloy, T shape, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet B mogul conduit body
Catalog Number
BT9
Product Length/Depth
23.75 in
Product Height
6.88 in
Product Width
4.88 in
Product Weight
22.9 lb
UPC
782274108131
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Shape
T
Trade size
3-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series BC, BLB, BT, BUB, BUBXL Moguls catalog page
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Mogul Conduit Bodies and Pulling Elbows Canadian certification
Eaton Specification Sheet - BT9
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature → Business Impact → Application: Constructed from Feraloy iron alloy, BT9 delivers exceptional mechanical strength and wear resistance, reducing corrosion risk in demanding environments. This translates to longer service life and lower replacement costs for industrial facilities relying on reliable power distribution. Application: Heavy-duty installations in manufacturing floors and switchgear rooms where durable conduit bodies are essential. Feature → Business Impact → Application: T-shaped Mogul design provides clear pulling access and optimized conduit routing, enabling faster installation and easier future modifications. Result: reduces project timetables and labor costs in new builds or retrofits. Application: High-density cable runs with limited access points. Feature → Business Impact → Application: 3-1/2 inch trade size and 23.75 inch length optimize routing for large-diameter conduits while maintaining compact space requirements. Benefit: maximizes space efficiency in control cabinets and enclosures. Application: Industrial automation panels and distributed motor control centers. Feature → Business Impact → Application: NEC/CEC compliance and ordinary/non-hazardous location rating ensure regulatory alignment and safe operation. Benefit: mitigates compliance risk and supports site approvals. Application: Systems undergoing audits and code inspections. Feature → Business Impact → Application: UPC, clear dimensional data, and standardized dimensions support accurate BOMs and procurement. Benefit: reduces ordering errors and accelerates project kickoffs. Application: Global manufacturing facilities importing standard BT series components.
Get a Quick Quote for a Eaton Crouse-Hinds BT9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds BT9?
Enquire Now
FAQs
BT9 is specifically designed for 3-1/2 inch trade size conduits, featuring a T-shaped Mogul configuration that aligns with widely used conduit fittings. This compatibility ensures smooth integration with existing system designs and reduces the need for adapters, saving installation time and minimizing potential leak points or misalignment during wiring runs.
BT9 is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it suitable for typical plant environments. When installing, ensure proper mounting clearance for pull access, verify correct conduit alignment, and use appropriate fasteners. Its substantial weight (approximately 22.9 lb) benefits from secure mounting supports to prevent movement during operation or maintenance.
BT9 adheres to NEC/CEC standards and carries an Ordinary/Non-Hazardous Location classification. The product is supported by Canadian certification references in the provided resources, and it includes UPC data for traceability. These certifications help streamline compliance during audits and cross-border procurement.
BT9 measures 23.75 inches in length, 6.88 inches in height, and 4.88 inches in width, with a weight of 22.9 pounds. It is shaped as a T and uses a 3-1/2 inch trade size, manufactured from Feraloy iron alloy to deliver high strength and durability in industrial environments.
Technical resources include the Eaton BT9 specification sheet, the Moguls catalog page, and the Industrial Fittings Wire Fill Chart. These assets provide dimensional data, installation guidance, and wire-fill guidelines to ensure correct sizing and compliance during projects. Access links are available in the product downloads section.
