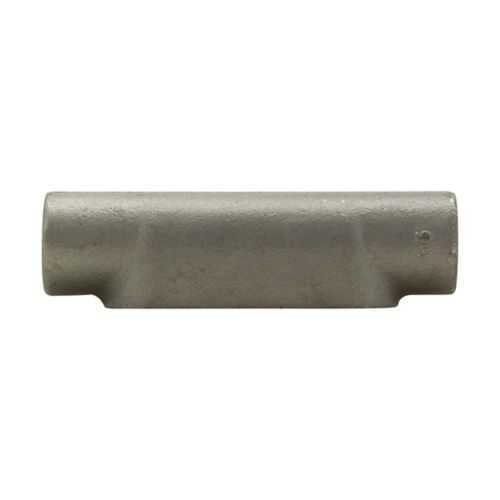

Eaton Crouse-Hinds C17 Condulet Form 7 - NEMA 12
Part Number: C17
Quick Summary
The Eaton Crouse-Hinds Condulet Form 7 is a rugged 1/2 in conduit outlet body designed for harsh industrial wiring applications. Engineers often contend with tight spaces, slow installs, and corrosion risk that lengthen project timelines, increase field labor, and raise maintenance costs. This unit aligns with NEC/CEC standards, carries a NEMA 12 rating for ordinary locations, and holds UL Canadian certification to support cross-border compliance. With its compact form factor and durable Feraloy iron alloy, it enables faster installation, predictable performance under load, and lower lifecycle costs in control panels and machine enclosures across harsh industrial environments.
Product Information
Extended Description
C17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, C shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
C17
Product Length/Depth
5.38 in
Product Height
1.38 in
Product Width
1.38 in
Product Weight
0.95 lb
UPC
782274744988
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
C
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides rugged durability in demanding environments. Business impact: This material resists corrosion and mechanical wear, reducing maintenance and replacement costs over the service life. Application: Ideal for machine enclosures, conduit runs, and control panels in manufacturing and processing facilities. Feature: Form 7, C-shaped conduit outlet body with 1/2 inch trade size. Business impact: Standardized geometry ensures compatibility with common conduit fittings and reduces field modification time. Application: Useful in tight installations where space efficiency and accessible wiring pull points are critical. Feature: Compact dimensions and light weight—5.38 in length, 1.38 in height and width, 0.95 lb weight. Business impact: Easier handling on-site and lower shipping/storage costs, with faster commissioning. Application: Fits compact control cabinets and equipment enclosures. Feature: NEMA 12 rating and Ordinary/Non-Hazardous area classification. Business impact: Provides reliable enclosure protection in non-hazardous environments, reducing risk of moisture ingress and contamination. Application: Industrial facilities, manufacturing floors, and assembly lines. Feature: NEC/CEC compliance and available UL Canadian certification. Business impact: Regulatory alignment decreases risk of non-compliance audits and simplifies procurement across regions. Application: Electrical installations following NEC/CEC in the US and Canada. Feature: Installation resources and Form 7 datasheets including IF 863 guidance. Business impact: Streamlines planning and ensures proper wire pulling practices, reducing field rework. Application: Field wiring in control panels and industrial automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds C17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds C17?
Enquire Now
FAQs
The C17 is designed specifically for 1/2 inch trade size conduit, using the Form 7, C-shaped outlet body geometry. This compatibility minimizes the need for field adapters and reduces installation time, while maintaining proper pull points and access for wiring. It's well suited for standard 1/2 inch conduit runs in machine enclosures and control panels.
The body is manufactured from Feraloy iron alloy, delivering durable, corrosion-resistant performance in industrial environments. Certifications include NEC/CEC compliance and a NEMA 12 rating for ordinary locations, with UL Canadian certification documented to support cross-border projects. These factors help reduce regulatory risk and simplify procurement across regions.
Yes. With a NEMA 12 rating and an area classification of Ordinary/Non-Hazardous Locations, the C17 Condulet Form 7 is appropriate for machine enclosures and control panels in non-hazardous industrial settings. It provides reliable protection against dust and splashing moisture, supporting consistent performance in routine manufacturing environments.
Eaton provides installation guidance and technical datasheets for Form 7 products, including IF 863 wire-pulling instruction sheets and form-specific specification guides. Access to these materials helps technicians plan conduit routing, ensure correct wire-pulling techniques, and minimize on-site rework during panel wiring and conduit runs.
The Feraloy iron alloy construction reduces corrosion and wear, extending service life and lowering replacement frequency. The standard 1/2 in conduit compatibility and NEC/CEC compliance support consistent performance, while UL Canadian certification facilitates cross-border procurement. Together, these factors contribute to lower total cost of ownership in automation and electrical installations.
