Eaton Crouse-Hinds C18 Condulet Form 8 - NEMA 12
Part Number: C18
Quick Summary
Crouse-Hinds C18 Condulet Form 8 conduit outlet body enables durable wiring terminations in industrial enclosures. Engineers often wrestle with corrosion, misfit fittings, and difficult wire pulls that drive downtime and maintenance costs. This form 8 body aligns with NEC/CEC standards and carries a NEMA rating of 12 for ordinary/non-hazardous locations, backed by robust Feraloy iron alloy construction. By choosing the C18, you gain reliable 1/2" conduit protection, easy installation, and a compact, lightweight profile that supports faster field deployment and a leaner supply chain.
Product Information
Extended Description

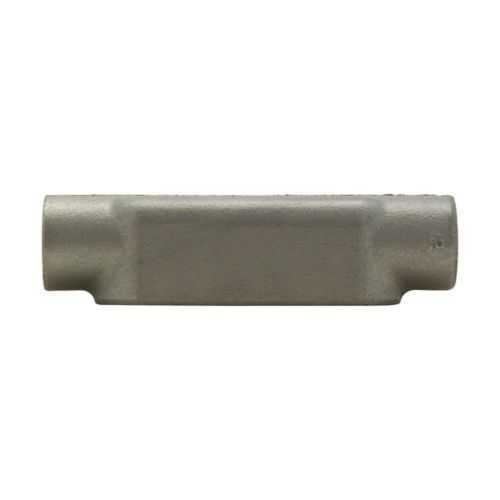

C18 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, C shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
C18
Product Length/Depth
5.69 in
Product Height
1.44 in
Product Width
1.38 in
Product Weight
1.15 lb
UPC
782274122403
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
C
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - C18
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: The Condulet Form 8 body is forged from Feraloy iron alloy, delivering superior durability and corrosion resistance in exposed industrial environments. This translates to longer service life, fewer field replacements, and lower maintenance costs in critical panels. Application: Ideal for harsh environments where reliable conduit protection is essential. Feature: Its C-shaped Form 8 geometry with a 1/2" trade size simplifies conduit entry and wire pulling, reducing installation time and minimizing cable damage. Application: Fast-track panel builds and easier retrofits in crowded enclosures. Feature: Dimensions of 5.69 in length, 1.44 in height, and 1.38 in width with a weight of 1.15 lb, provide a compact footprint for tight spaces. Application: Space savings in control cabinets and easier mounting across equipment housings. Feature: With a NEMA 12 rating and NEC/CEC compliance for Ordinary/Non-Hazardous Locations, this conduit body ensures regulatory alignment and safe operation. Application: Indoor process areas and non-hazardous installations where robust protection matters. Feature: Comprehensive documentation and installation resources, including IF 964 wire-pulling sheets and data sheets, support accurate field installs. Application: Reduces field errors and speeds commissioning with ready-to-use technical materials. Feature: Access to catalogs, certification reports, and technical bulletins enables informed sizing and safe bend-radius planning for cubic capacity. Application: Improves design confidence and ensures compliance with industry guidelines.
Get a Quick Quote for a Eaton Crouse-Hinds C18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds C18?
Enquire Now
FAQs
When installing the C18, ensure the conduit size matches the 1/2 inch trade size and that the mounting surface accommodates its 5.69 inch length. Use the provided installation documentation (IF 964 sheets) to guide wire pulling and enclosure routing, and confirm compliance with NEC/CEC requirements for ordinary locations. Proper torque on mounting hardware and careful alignment minimize leakage paths and ensure long-term reliability.
Form 8 bodies, including the C18, feature a compact C-shaped geometry that streamlines conduit entry and reduces tight-space snagging during pulling. This design lowers installation time, decreases the risk of insulation damage, and supports consistent wire routing inside panels. In practice, this translates to faster commissioning and fewer field rework events in crowded electrical enclosures.
Yes. The C18 is listed under NEC/CEC standards and carries a NEMA 12 rating, intended for ordinary/non-hazardous indoor locations. This combination ensures code-aligned electrical installations with reliable protection against dust and moisture ingress in non-hazardous settings. Always verify local code adoption and installation conditions to maximize compliance.
The C18 is engineered specifically for 1/2 inch conduit, with precise Form 8 geometry that accepts standard fittings and fittings compatible with 1/2 inch systems. Its dimensions (5.69 in L, 1.44 in H, 1.38 in W) and weight (1.15 lb) help ensure easy mounting and predictable fill in control panels, aiding accurate panel layout and procurement.
The Form 8 C18 conduit body offers durable construction, reduced maintenance, and faster installation, which lowers labor costs and downtime. Its NEMA 12 and NEC/CEC compliance mitigate regulatory risk, while the compact design frees enclosure space, enabling more efficient panel layouts and potential savings on cabinet size and fittings over the system life.
