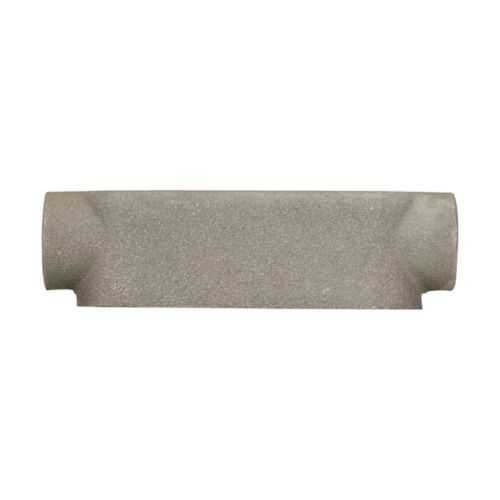

Eaton Crouse-Hinds C29 Conduit Outlet Body - NEMA 12
Part Number: C29
Quick Summary
The Eaton Crouse-Hinds C29 conduit outlet body provides rugged protection for 3/4" conduit runs in industrial enclosures. This copper-free aluminum design reduces weight and enhances corrosion resistance in tough environments. It complies with NEC/CEC standards and carries a NEMA 12 rating, making it suitable for ordinary non-hazardous locations. The solution simplifies installation by providing a reliable wire entry point that is compatible with Condulet Form 8 and Mark 9 systems, reducing field rework and downtime. For engineers and procurement teams, predictable dimensions and a compact footprint support easier maintenance and inspection while preserving durability in tight panel spaces.
Product Information
Extended Description
C29 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, C shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
C29
Product Length/Depth
5.34 in
Product Height
1.63 in
Product Width
1.56 in
Product Weight
0.42 lb
UPC
782274123004
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
C
Trade size
3/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - C29
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Copper-free aluminum construction reduces weight and resists corrosion. Business Impact: Lighter assemblies lower handling and installation costs while extending life in damp or dusty environments. Application: Suitable for panel-mounted Condulet installations in manufacturing facilities and weather-exposed enclosures. Feature: NEMA 12 rating and NEC/CEC compliance. Business Impact: Simplifies regulatory approvals and reduces compliance risk on projects. Application: Ideal for ordinary/non-hazardous locations where enclosure protection is essential. Feature: 3/4 inch trade size with Mark 9 compatibility. Business Impact: Seamless integration with Form 8/Mark 9 conduits accelerates wiring projects and enables reuse of existing fittings. Application: Common in plant wiring runs, retrofits, and facility upgrades. Feature: Wire pulling efficiency with precise geometry. Business Impact: Faster terminations and fewer rework events, improving maintenance windows. Application: Works with IF 863 instruction sheets for reliable installation. Feature: Compact dimensions and light weight. Business Impact: Space-efficient footprint in crowded panels reduces enclosure footprint and shipping costs. Application: Ideal for retrofits and new installations in automation and process facilities.
Get a Quick Quote for a Eaton Crouse-Hinds C29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds C29?
Enquire Now
FAQs
For reliable results, verify compatibility with Condulet Form 8 and Mark 9 assemblies and use the IF 863 wire-pulling instruction set. Confirm the conduit fits the 3/4" trade size and ensure the enclosure is non-hazardous as indicated by the Ordinary/Non-Hazardous Location classification. Following these steps minimizes field rework and ensures compliant termination.
Key specs include 5.34 inches in length, 1.63 inches in height, and 1.56 inches in width, with a weight of 0.42 lb. It is made from copper-free aluminum, supports 3/4" trade size, carries a NEMA 12 rating, and complies with NEC/CEC standards for ordinary locations. UPC 782274123004 is printed on the unit for traceability.
C29 is certified for Ordinary/Non-Hazardous Locations and carries a NEMA 12 rating, which provides enclosure protection for indoor and covered outdoor environments. It is not rated for hazardous locations or wet/washdown IP-rated conditions; for those applications, select a product with appropriate IP and hazard classifications.
The C29 adheres to NEC/CEC standards and carries a NEMA 12 rating. It is intended for ordinary locations and has Canadian certification references through UL-related documentation. This combination supports code compliance in North American industrial facilities and aligns with common Condulet Form 8/Mark 9 installations.
The copper-free aluminum design reduces weight and corrosion risk, lowering handling and maintenance costs. Compatibility with existing Condulet Form 8/Mark 9 fittings accelerates wiring, reduces field rework, and shortens downtime. Its compact dimensions help fit into crowded panels, delivering predictable, repeatable installations and a favorable total cost of ownership in automation projects.
