Eaton Crouse-Hinds C49 Condulet Mark 9 - NEMA 12
Part Number: C49
Quick Summary

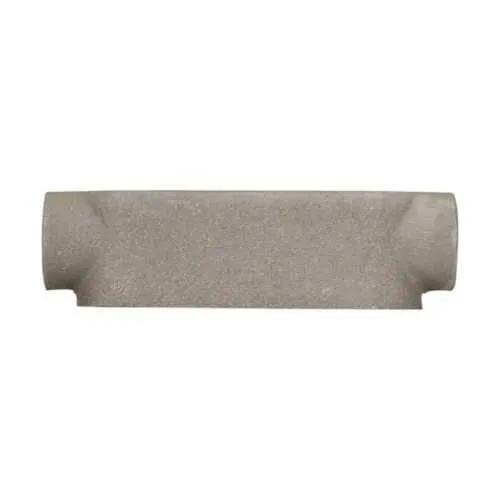

Eaton Crouse-Hinds C49 Condulet Mark 9 conduit outlet body is a copper-free aluminum, 1-1/4" trade size enclosure designed for reliable terminations in industrial control panels. In tight spaces, wiring and corrosion risks can undermine uptime; this conduit body provides a rugged, lightweight solution that simplifies installation and maintenance. It carries a NEMA 12 rating and NEC/CEC standards, with UL Canadian certification, ensuring it meets regional reliability requirements. For teams seeking repeatable installs, its Condulet Mark 9 compatibility and Form 8 design support fast, code-compliant assembly while reducing field rework. This model aligns with copper-free aluminum advantages and Form 8/Mark 9 applications, delivering durable performance and a lower total cost of ownership over the life of the panel.
Product Information
Extended Description
C49 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, C shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
C49
Product Length/Depth
7.63 in
Product Height
2.5 in
Product Width
2.19 in
Product Weight
0.95 lb
UPC
782274123608
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
C
Trade size
1-1/4"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - C49
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature copper-free aluminum construction → Business Impact improved corrosion resistance and lighter weight → Application suitable for indoor non-hazardous locations in Form 8 and Mark 9 assemblies. Feature robust C-shaped body and 1-1/4" trade size → Business Impact easier wire pulling and precise conduit alignment → Application in tight control panels and equipment enclosures. Feature NEMA 12 rating and NEC/CEC compliance → Business Impact enhanced protection against dust and water ingress, regulatory confidence → Application in ordinary/non-hazardous locations across industrial facilities. Feature compatibility with Condulet Mark 9 and Form 8 standards → Business Impact standardized fittings, faster procurement, reduced training time → Application across OEM and retrofit projects. Feature installation resources including IF 863 wire pulling guidance → Business Impact streamlined installation, fewer field errors → Application across new builds and maintenance cycles. Feature compact footprint 7.63 in length, 2.5 in height, 2.19 in width and 0.95 lb weight → Business Impact easier handling and lower logistical costs → Application in space-constrained panels and rack systems. Industry insight: adopting copper-free aluminum Condulet bodies in Mark 9 configurations supports sustainable design goals while maintaining robust protection in non-hazardous environments.
Get a Quick Quote for a Eaton Crouse-Hinds C49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds C49?
Enquire Now
FAQs
The C49 is designed for Condulet Mark 9/Form 8 assemblies with a 1-1/4 inch trade size. It uses copper-free aluminum for a lightweight, corrosion-resistant enclosure and mounts with standard Condulet components. Ensure fitment in ordinary/non-hazardous locations under NEC/CEC, and select appropriate gaskets and covers for the intended environment.
C49 features a NEMA 12 rating and is specified for ordinary/non-hazardous locations. It is copper-free aluminum, sized for 1-1/4 inch conductors, and compatible with Mark 9 assemblies. When wiring, verify conductor fill per NEC guidelines and use approved seals to maintain enclosure integrity in non-hazardous settings.
Yes. C49 is purpose-built for Condulet Mark 9/Form 8 installations, with a C-shaped copper-free aluminum body at 1-1/4 inch trade size. It integrates with standard Form 8 components, enabling consistent terminations, straightforward maintenance, and compatibility with existing Eaton Crouse-Hinds conduit systems in industrial environments.
C49 adheres to NEC/CEC standards and carries a NEMA 12 rating, suitable for Ordinary/Non-Hazardous Locations. It also has UL Canadian certification documentation, ensuring compliance for Canadian installations. Always confirm local code requirements and use appropriate installation instructions for Canada and North America.
Leverage the light copper-free aluminum construction to minimize handling damage, and follow IF 863 wire pulling guidance to prevent insulation wear. Use compatible gaskets and covers for your environment, ensure proper sealing for NEMA 12 protection, and document compatibility with Mark 9/Form 8 components to simplify future upgrades and routine inspections.
