Eaton Crouse-Hinds C77 Condulet Form 7 - NEMA 12
Part Number: C77
Quick Summary
Eaton Crouse-Hinds C77 Condulet Form 7 conduit outlet body protects wiring in industrial control panels. Many sites struggle with tight spaces, bend-radius constraints, and regulatory compliance, which complicate wiring installations. This form 7 body meets NEC/CEC standards, carries a NEMA 12 rating, and is suitable for ordinary/non-hazardous locations. Its durable construction and standard Condulet compatibility enable faster installs, easier maintenance, and lower lifecycle costs for industrial automation projects.
Product Information
Extended Description

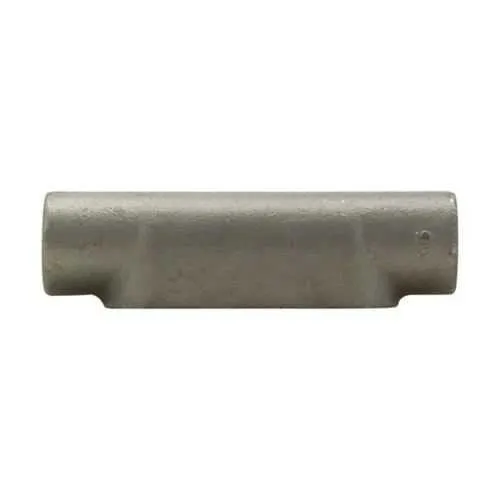

C77 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, C shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
C77
Product Length/Depth
12 in
Product Height
3.63 in
Product Width
4.25 in
Product Weight
8.6 lb
UPC
782274746265
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
C
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - C77
Eaton Specification Sheet - C77
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction delivers high impact resistance and excellent durability in harsh industrial environments. This material choice provides superior mechanical strength, improved corrosion resistance, and longer service life, reducing the frequency of disruptive replacements in plants with dust, moisture, or vibration. The C77 is designed for 2-1/2 inch trade-size conduit runs, making it a reliable choice for process lines, heavy equipment enclosures, and retrofit projects where rugged protection matters. Feature: The Form 7 C-shaped conduit body simplifies wire pulling and routing. The geometry provides clear access to conductors, reduces snag points, and speeds installation, especially in cramped panels or overhead runs. Business impact: faster wiring, fewer field modifications, and less risk of damage during pulls translate to shorter project cycles and lower labor costs across multi-district installations. Feature: Dimensions and weight—12 inches long, 3.63 inches high, 4.25 inches wide, and 8.6 pounds—offer a balanced combination of strength and manageability. Impact: the compact footprint and predictable handling improve fit in tight panels, while the weight supports safer lifting and fewer bracing requirements. Application: ideal for mid-size control panels, gear racks, and cabinet roofs where space is at a premium. Feature: Certifications and ratings include NEMA 12 and NEC/CEC compliance for ordinary/non-hazardous locations. Impact: code alignment reduces rework risk, accelerates acceptance testing, and simplifies procurement across regulated facilities. Application: suitable for factory floors, processing lines, and automation equipment that must meet widely adopted industrial standards. Feature: Broad documentation and compatibility with standard Condulet components, including catalog pages, datasheets, and installation instructions (IF 964). Impact: simplifies design review, procurement, and field training, helping technicians source spares quickly and maintain consistency across sites. Application: ideal for turnkey automation projects and repeated-install programs where standardization drives ROI.
Get a Quick Quote for a Eaton Crouse-Hinds C77
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds C77?
Enquire Now
FAQs
Start by verifying mounting locations and selecting compatible entry points. Use standard conduit fittings and follow the IF 964 installation sheet for pull paths and torque guidance. Ensure the body is oriented to allow full access to conductors, seal where needed, and complete code-compliant wire pulling within the 2-1/2 inch trade-size channel.
The C77 is a 2-1/2" trade-size Form 7 conduit outlet body, 12 inches long, 3.63 inches tall, 4.25 inches wide, weighing 8.6 pounds. It is made from Feraloy iron alloy, shaped as a C, with a NEMA 12 rating and NEC/CEC compliance, and the UPC is 782274746265.
Ideal for industrial control panels, equipment enclosures, and wiring runs in ordinary locations. It supports 2-1/2" conduit, fits compact panel layouts, and helps wire pull routes in manufacturing, packaging lines, and automation gear, delivering reliable conductor protection in challenging environments.
It carries NEC/CEC compliance and a NEMA 12 rating for protection in ordinary/non-hazardous locations. UL certification references exist for Condulet Form 7 components. This combination supports regulatory acceptance, safe operation, and easier project sign-off for industrial installations.
Using the C77 Condulet Form 7 reduces wiring time, minimizes on-site modifications, and lowers lifecycle costs through durable Feraloy alloy construction. Its standardization with Form 7 components improves procurement efficiency and site-to-site consistency, delivering faster deployments and predictable maintenance in automation and electrical distribution projects.
