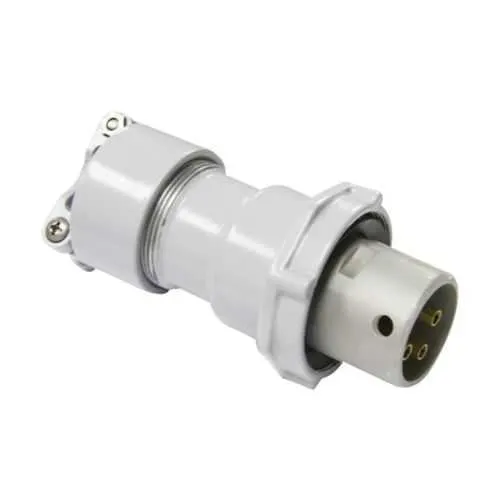

Eaton Crouse-Hinds PowerMate CCP plug CCP15044CD - NEMA 4X
Part Number: CCP15044CD
Quick Summary
PowerMate CCP plug delivers high-current power for heavy equipment and industrial automation setups. Engineers often face downtime from undersized connectors, corrosion, and unreliable performance in demanding environments. This plug carries NEC/CEC compliance, NEMA 4X enclosure protection, and ordinary/non-hazardous area classification to ensure safe, reliable operation. By leveraging copper-free aluminum construction and a robust 150A rating, it supports safer, cost-effective installations while aligning with PowerMate drilling pin and sleeve device ecosystems for standardized, scalable power distribution.
Product Information
Extended Description
CCP15044CD Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerMate CCP plug, 150A, 0.875-1.906", Four-wire, four-pole, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series PowerMate CCP plug
Catalog Number
CCP15044CD
Product Length/Depth
10.8 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
5.58 lb
UPC
662276288218
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
150A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Cable diameter
0.875-1.906"
Voltage rating
600 Vac/250 Vdc
Material
Copper-free aluminum
Eaton Crouse-Hinds CCP15044CD 3D drawing
PowerMate Drilling Pin and Sleeve Devices brochure
PowerMate Drilling Pin and Sleeve Devices catalog page
PowerMate Drilling Pin and Sleeve Devices UL certification (Plugs and Connectors)
PowerMate Drilling Pin and Sleeve Devices UL certification (Plugs and Connectors)
IF 1834 - PowerMate Pin and Sleeve Devices with Nested Bushing
IF 1834 - PowerMate Pin and Sleeve Devices with Nested Bushing
PowerMate Connectors
Feature → Business Impact → Application: The CCP15044CD delivers 150A, four-wire, four-pole configuration, enabling high-power, multi-line connections with secure grounding. Benefit: reduces downtime and wiring complexity in heavy machinery and manufacturing lines. Application: ideal for palletizers, robotic cells, and CNC front-ends where rugged power delivery is critical.Feature → Business Impact → Application: 600 Vac/250 Vdc rating expands compatibility across AC and DC circuits, supporting mixed-environment power systems. Benefit: minimizes inventory of different plug types and simplifies maintenance. Application: industrial controls, process lines, and outdoor equipment daisy-chains.Feature → Business Impact → Application: Copper-free aluminum housing plus NEMA 4X protection provides corrosion resistance and enclosure integrity. Benefit: extends life in non-hazardous outdoor locations and harsh shop floors, lowering replacement costs. Application: outdoor substations, loading docks, and weather-exposed installations.Feature → Business Impact → Application: 10.8 in length with 4.13 in width and height facilitates straightforward integration with PowerMate drilling pin and sleeve devices. Benefit: reduces installation time and cabinet clearance concerns. Application: plug-and-sleeve systems in drilling operations and mobile power carts.Feature → Business Impact → Application: NEC/CEC compliance plus ordinary/non-hazardous area classification ensures regulatory alignment and safer operation. Benefit: simplifies procurement audits and asset risk management. Application: general industrial environments, construction sites, and non-hazardous process areas.
Get a Quick Quote for a Eaton Crouse-Hinds CCP15044CD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CCP15044CD?
Enquire Now
FAQs
The CCP15044CD is a four-wire, four-pole plug sized for PowerMate drilling pin and sleeve devices. It measures 10.8 inches long with a 4.13 inch width and height, and uses copper-free aluminum housing. Plan for compatible mating receptacles, appropriate cable diameters (0.875 to 1.906 inches), and adequate enclosure space to maintain the NEMA 4X protection and safe grounding (Style 1).
Yes. The plug features a NEMA 4X enclosure rating and ordinary/non-hazardous area classification, which supports reliable operation in non-hazardous outdoor or workshop environments. Its copper-free aluminum body provides corrosion resistance, reducing maintenance needs and extending service life in exposed industrial applications.
The CCP15044CD adheres to NEC/CEC standards and carries a NEMA 4X rating, with area classification for Ordinary/Non-Hazardous Locations. These certifications ensure electrical safety, code compliance, and environmental protection for equipment used in general industrial facilities, enabling smoother procurement audits and safer field installations.
Key specs include a 150A amperage rating and a voltage rating of 600 Vac/250 Vdc. The configuration is four-wire, four-pole with Style 1 grounding. The cable diameter range is 0.875–1.906 inches. This enables reliable connections with PowerMate drilling pin and sleeve devices and standard industrial power distribution hardware.
By standardizing on the CCP15044CD with its durable copper-free aluminum housing, 150A capacity, and NEMA 4X protection, you reduce maintenance and replacement costs, improve uptime in non-hazardous locations, and streamline installation across multiple lines. Compatibility with PowerMate components also lowers training time and inventory complexity for maintenance teams.
