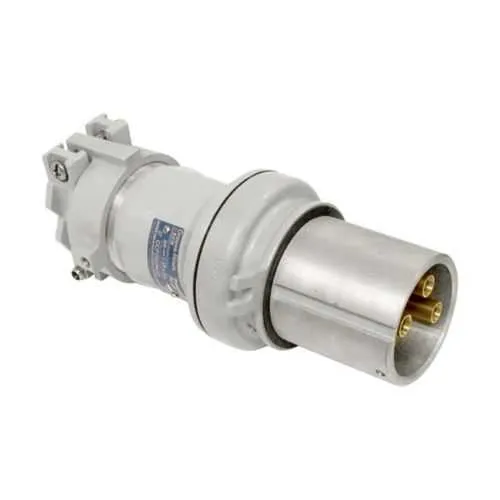

PowerMate CCP plug CCP20033CD - 4X
Part Number: CCP20033CD
Quick Summary
PowerMate CCP plug delivers rugged high-current electrical power connections for industrial drilling and sleeve devices in rugged facilities. Engineers often struggle with corrosion, downtime, and complex installation in harsh environments, which drives procurement delays and budget overruns. This plug meets NEC/CEC standards and carries a NEMA 4X enclosure rating, while its area classification covers Ordinary/Non-Hazardous Locations. By leveraging copper-free aluminum construction and a 200 A rating, it supports reliable, long-life service; the design also integrates seamlessly with PowerMate drilling-pin-and-sleeve devices, reducing field wiring labor. In practice, this translates to faster commissioning, lower maintenance costs, and predictable performance across industrial automation and distribution applications.
Product Information
Extended Description
CCP20033CD Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerMate CCP plug, 200A, 0.875-1.906", Two-wire, three-pole, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series PowerMate CCP plug
Catalog Number
CCP20033CD
Product Length/Depth
13.25 in
Product Height
7.5 in
Product Width
7.5 in
Product Weight
11.55 lb
UPC
662276364677
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
200A
Grounding type
Style 2
Configuration
Two-wire, three-pole
Cable diameter
0.875-1.906"
Voltage rating
600 Vac/250 Vdc
Material
Copper-free aluminum
Eaton Crouse-Hinds CCP20033CD 3D drawing
PowerMate Drilling Pin and Sleeve Devices brochure
PowerMate Drilling Pin and Sleeve Devices catalog page
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
IF 1652 - 200A PowerMate Pin and Sleeve Devices
Eaton Specification Sheet - CCP20033CD
Eaton Specification Sheet - CCP20033CD
High-current capability translates to fewer connectors and reduced wiring complexity, enabling faster assembly and lower inventory costs. The CCP20033CD supports 200 A service with a 600 VAC/250 VDC rating, empowering reliable performance for both AC and DC applications in heavy machinery and distribution feeders. Copper-free aluminum construction offers weight savings and corrosion resistance, improving lifecycle costs in outdoor, washdown, or harsh environments while maintaining robust electrical integrity. The two-wire, three-pole configuration with Style 2 grounding ensures compatibility with standard PowerMate mating devices, simplifying installation and maintenance in retrofit or new-build projects. NEMA 4X protection plus NEC/CEC compliance provide a concrete pathway to regulatory-ready installations and reduced risk in Ordinary/Non-Hazardous Locations. The compact 13.25 in length, 7.5 in height and 7.5 in width profile fits constrained spaces without sacrificing serviceability, while the availability of 3D CAD drawings, brochure, and spec sheets accelerates design and procurement decisions. Compatibility with PowerMate drilling-pin-and-sleeve devices supports standardization across plant-wide power distribution, delivering measurable efficiency gains and predictable performance.
Get a Quick Quote for a Eaton Crouse-Hinds CCP20033CD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CCP20033CD?
Enquire Now
FAQs
The CCP20033CD is designed as a two-wire, three-pole plug with Style 2 grounding that mates with standard PowerMate drilling-pin-and-sleeve devices. Its copper-free aluminum housing keeps weight manageable while delivering 200 A service and the 600 VAC/250 VDC rating. For best results, follow the Eaton installation sheets and verify enclosure protection (NEMA 4X) and area classification for your specific location.
This plug is rated for 200 A, with a voltage rating of 600 VAC / 250 VDC. It uses copper-free aluminum construction, providing good corrosion resistance and a lighter weight. The device is intended for ordinary/non-hazardous locations and supports both AC and DC application scenarios typical in industrial power distribution and control cabinets.
Yes. The CCP20033CD carries a NEMA 4X rating, offering robust protection against dust, water, and corrosion. Coupled with copper-free aluminum and NEC/CEC compliance, it suits outdoor or washdown environments found in manufacturing floors, assembly lines, and industrial facilities that require reliable, long-life power distribution.
The device adheres to NEC/CEC standards and is listed for Ordinary/Non-Hazardous Locations. It also aligns with PowerMate Drilling Pin and Sleeve Devices guidelines, and the NEMA 4X enclosure rating ensures protection against environmental exposure. Documentation such as installation sheets and datasheets are available to support certification packages.
Eaton provides multiple resources including 3D CAD drawing packages, PowerMate brochures, catalog pages, and specification sheets. Access to installation instructions (IF 1652) and UL/cUL certification reports further streamlines design reviews, compliance checks, and procurement approvals, helping accelerate project timelines and reduce rework.
