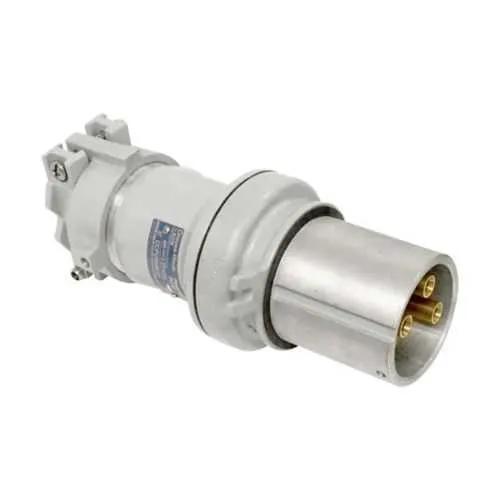

Eaton CCP20044CD RS PowerMate CCP plug - NEMA 4X 200A
Part Number: CCP20044CD
Quick Summary
PowerMate CCP plug delivers high-current power for industrial equipment in demanding environments, enabling safe, reliable connections. Engineers and procurement teams face challenges with heavy, difficult-to-manage connectors that slow installs and escalate maintenance. This CCP20044CD RS is designed for ordinary/non-hazardous locations while delivering robust performance; it carries NEC/CEC compliance and a NEMA 4X rating for harsh environments. By leveraging copper-free aluminum and a reverse-service option, it reduces weight, simplifies field installation, and lowers lifecycle costs. For integrators seeking durable, code-compliant power connection solutions, this plug aligns with PowerMate drilling-pin-and-sleeve systems and enhances overall plant reliability.
Product Information
Extended Description
CCP20044CD Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerMate CCP plug, 200A, 0.875-1.906", Four-wire, four-pole, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series PowerMate CCP plug
Catalog Number
CCP20044CD
Product Length/Depth
13.13 in
Product Height
7.5 in
Product Width
7.5 in
Product Weight
12.94 lb
UPC
662276364899
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
200A
Grounding type
Style 1
Configuration
Four-wire, four-pole
Cable diameter
0.875-1.906"
Voltage rating
600 Vac/250 Vdc
Material
Copper-free aluminum
Eaton Crouse-Hinds CCP20044CD 3D drawing
PowerMate Drilling Pin and Sleeve Devices brochure
PowerMate Drilling Pin and Sleeve Devices catalog page
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
IF 1652 - 200A PowerMate Pin and Sleeve Devices
PowerMate Connectors
PowerMate Connectors
Feature: 200A amperage rating and 600 Vac/250 Vdc voltage rating → Business impact: Supports high-load equipment without overheating or voltage drop, improving uptime and reducing fuse or breaker trips → Application: Heavy industrial motors and distribution panels in manufacturing lines. Feature: Four-wire, four-pole configuration with Style 1 grounding → Business impact: Safer, predictable grounding and easier fault isolation, lowering risk during maintenance → Application: Critical power feeds in control panels and remote sensor cabinets. Feature: Copper-free aluminum housing → Business impact: Lighter weight and better corrosion resistance, cutting installation time and long-term maintenance costs → Application: Outdoor or semi-protected installations where corrosion is a concern. Feature: Reverse service capability → Business impact: Flexible service orientation during commissioning or service events, minimizing downtime → Application: Reconfigurable plant layouts or retrofit projects. Feature: NEMA 4X enclosure rating and ordinary/non-hazardous locations classification → Business impact: Dust, water, and corrosion resistance in standard plant environments, ensuring compliance and durability → Application: Factory floors, washdowns, and non-hazardous processing areas. Feature: Dimensions and weight (13.25 in length, 7.5 in height/width, 12.95 lb) → Business impact: Clear footprint planning and robust, rugged performance in crowded electrical rooms → Application: Space-constrained installations where a sturdy, high-current plug is essential.
Get a Quick Quote for a Eaton Crouse-Hinds CCP20044CD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CCP20044CD?
Enquire Now
FAQs
To install the CCP20044CD RS, begin by selecting a mounting location that allows the 13.25 inch length and 7.5 inch width for clear access. Verify cable diameter compatibility (0.875 to 1.906 inches) and route four-wire conductors to the four-pole connection. Align the plug with the mating receptacle, secure with approved hardware, and torque per the installation instructions IF1652. Use the reverse-service feature to orient the plug during commissioning or servicing. This approach minimizes downtime and ensures a safe, code-compliant connection for high-current applications.
The CCP20044CD RS is rated for 200A with a voltage rating of 600 Vac / 250 Vdc. It utilizes a four-wire, four-pole configuration with Style 1 grounding, delivering reliable, high-current performance for demanding industrial loads. This combination supports consistent power delivery to power-mate devices and other high-load equipment while maintaining safe operation under NEC/CEC standards.
Yes. The device is specified for Ordinary/Non-Hazardous Locations and carries a NEMA 4X enclosure rating, providing protection against dust, water, and corrosion in standard factory settings. This makes it appropriate for general manufacturing floors, assembly lines, and non-hazardous processing areas where high-current connections are needed without the complexities of hazardous-location equipment.
The CCP20044CD RS aligns with NEC/CEC standards and carries a NEMA 4X enclosure rating for reliable protection in non-hazardous environments. It is designed to support PowerMate drilling-pin-and-sleeve devices and is compatible with UL/cUL certification contexts via manufacturer literature. These certifications help ensure compliance during audits and ease integration into regulated industrial plants.
The copper-free aluminum construction reduces weight and improves corrosion resistance, easing handling during installation and decreasing long-term maintenance costs. The reverse service capability adds flexibility for servicing, reducing downtime during turnarounds. Combined with the 200A/600 Vac rating and robust NEMA 4X enclosure, the plug delivers a favorable total cost of ownership by enhancing uptime and simplifying field upgrades or retrofits.
