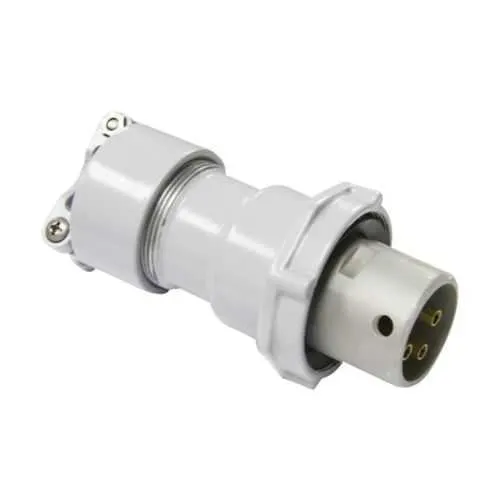

Eaton CCP6033BC PowerMate CCP Plug - NEMA 4X, 60A
Part Number: CCP6033BC
Quick Summary
PowerMate CCP plug from Eaton Crouse-Hinds provides rugged, high-current power connections for industrial equipment in non-hazardous settings. Many projects struggle with cable diameter compatibility and corrosion resistance in harsh plants, which drives maintenance cost and downtime. This plug is engineered to meet NEC/CEC standards and offers NEMA 4X enclosure protection with UL/cUL certification, ensuring compliance and safe operation. The copper-free aluminum body reduces weight while resisting corrosion, and its 0.440-1.375 inch cable diameter range supports a broad set of power cables. With 60A capacity and a 600 Vac/250 Vdc rating, it delivers reliable, serviceable connections for PowerMate drilling pin-and-sleeve devices and related automation hardware.
Product Information
Extended Description
CCP6033BC Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerMate CCP plug, 60A, 0.440-1.375", Three-wire, three-pole, Style 1, Copper-free aluminum, 600 Vac/250 Vdc
Product Name
Eaton Crouse-Hinds series PowerMate CCP plug
Catalog Number
CCP6033BC
Product Length/Depth
8.17 in
Product Height
3.63 in
Product Width
3.63 in
Product Weight
2.2 lb
UPC
662276276628
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Amperage Rating
60A
Grounding type
Style 1
Configuration
Three-wire, three-pole
Cable diameter
0.440-1.375"
Voltage rating
600 Vac/250 Vdc
Material
Copper-free aluminum
Eaton Crouse-Hinds CCP6033BC 3D drawing
PowerMate Drilling Pin and Sleeve Devices brochure
PowerMate Drilling Pin and Sleeve Devices catalog page
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
PowerMate Drilling Pin and Sleeve Devices cUL certification (Plugs and Connectors)
IF 1834 - PowerMate Pin and Sleeve Devices with Nested Bushing
IF 1834 - PowerMate Pin and Sleeve Devices with Nested Bushing
Eaton Specification Sheet - CCP6033BC
Eaton Specification Sheet - CCP6033BC
Feature: 60A amperage rating and 600 Vac/250 Vdc voltage rating → Business Impact: Handles high-load industrial equipment reliably, reducing overload events and electrical noise → Application: Suitable for heavy-duty PowerMate installations and drilling-pin-sleeve devices. Feature: Copper-free aluminum housing → Business Impact: Lighter weight and improved corrosion resistance lower installation effort and maintenance costs → Application: Outdoor/industrial environments where durability and ease of handling matter. Feature: Three-wire, three-pole configuration with Style 1 grounding → Business Impact: Safer, simplified wiring and robust grounding for critical power connections → Application: Drilling pin-and-sleeve and other three-phase-style connections in plant floors. Feature: Cable diameter range 0.440-1.375 inches → Business Impact: Broad compatibility reduces inventory and field adaptation needs → Application: Connects a wide range of cables without custom assemblies. Feature: NEMA 4X enclosure and NEC/CEC compliance → Business Impact: Enhanced protection against dust, water ingress, and regulatory risk → Application: Ordinary/non-hazardous locations in manufacturing environments. Feature: Dimensions and weight (8.17 in L, 3.63 in W/H, 2.2 lb) → Business Impact: Manageable size and weight simplify mounting and service → Application: Field replacements and service calls for PowerMate devices. Feature: Availability of official CAD drawings and installation literature → Business Impact: Accelerates design-in and reduces installation errors → Application: Engineering and procurement teams planning PowerMate integration.
Get a Quick Quote for a Eaton Crouse-Hinds CCP6033BC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CCP6033BC?
Enquire Now
FAQs
When installing CCP6033BC, ensure cable diameters between 0.440 and 1.375 inches are securely terminated within the copper-free aluminum housing. Verify grounding follows Style 1 and that the panel environment is within Ordinary/Non-Hazardous Locations per NEC/CEC. Use appropriate mating connectors and maintain NEMA 4X enclosure protection to resist dust and water ingress, reducing field maintenance needs.
Rely on the 60A amperage rating and 600 Vac/250 Vdc voltage rating to guarantee safe operation under peak loads. The three-wire, three-pole configuration provides consistent grounding and reliable phasing, while the copper-free aluminum body minimizes weight and corrosion risk, improving uptime in continuous-running equipment.
Yes. The PowerMate CCP6033BC is designed for ordinary/non-hazardous locations with a NEMA 4X enclosure. Its three-wire, three-pole configuration and 60A rating align with standard drilling pin-and-sleeve device requirements, while UL/cUL certification confirms compliance for plugs and connectors used in such environments.
CCP6033BC complies with NEC/CEC standards and carries a NEMA 4X enclosure rating, ensuring protection against dust, water, and corrosion. UL/cUL certification for plugs and connectors provides third-party assurance of safety and reliability, which is critical for regulatory compliance and risk management in industrial facilities.
Choosing CCP6033BC delivers reliable, high-current connections with broad cable compatibility, reducing inventory needs and installation time. The copper-free aluminum build lowers weight and corrosion risk, while NEC/CEC compliance and UL/cUL listings minimize regulatory risk and maintenance costs over the equipment’s life cycle.
