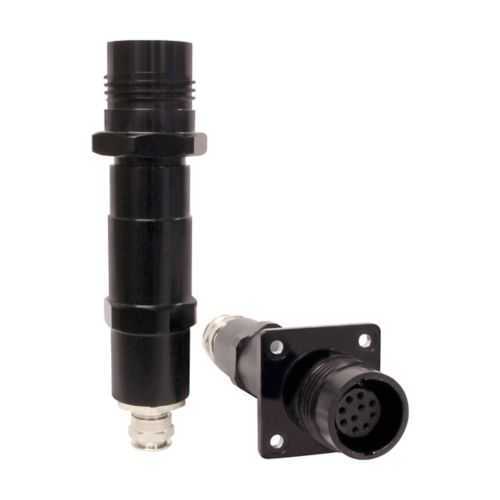

Eaton Crouse-Hinds CEX-133-A12-316PN Cable Mounted Plug - Zone 1
Part Number: CEX-133-A12-316PN
Quick Summary
CEX-133-A12-316PN is a cable mounted plug that provides hazardous-location connectivity for unarmoured cables in industrial environments. Design teams often struggle with safe gland termination, rugged protection, and proving compliance in hazardous-area installations. It carries IECEx/ATEX Zone 1 approval, IP68/IP66 protection, and a NEMA 6P 4X rating to support mission-critical equipment. By combining robust construction with quick, crimped #10 AWG contacts, it delivers reliable connectivity while streamlining installation and maintenance. This makes it well-suited for Roughneck multi-pin connectors in mining, oil & gas, and chemical processing, reducing downtime and lifecycle costs.
Product Information
Extended Description
CEX-133-A12-316PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 40A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #10 AWG, Crimp, Pin, 10.5 - 15.5 inner sheath, 13.5 - 21.0 outer sheath, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-A12-316PN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1 lb
UPC
662276691971
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP68 IP66
Shell size
12
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
10.5 - 15.5
Outer sheath (min/max)
13.5 - 21.0
Contact size
#10 AWG
Amperage Rating
40A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133-A12-316PN
Feature: Hazardous-location certification and rugged enclosure. Business Impact: Ensures regulatory compliance and minimizes risk from dust, moisture, and ignition hazards in demanding environments. Application: Ideal for mining, offshore platforms, and chemical processing facilities where hazardous locations are common. Feature: EEx d cable gland for hazardous-area terminations. Business Impact: Provides safe, proven sealing with a robust gland, reducing field termination errors and rework. Application: Supports unarmoured cable runs in exposed or harsh environments. Feature: Silver-plated copper contacts with crimp termination. Business Impact: Delivers high conductivity and corrosion resistance, extending service life in humid or aggressive atmospheres. Application: Suitable for motor control, sensors, and control circuits using #10 AWG conductors. Feature: 40A amperage rating and cable range compatibility (#10 AWG). Business Impact: Supports common industrial loads while minimizing the need for multiple connector types. Application: Practical for control panels and device wiring in medium- current applications. Feature: Shell size 12 and compact dimensions (6.57 in long; 1.75 in wide and high). Business Impact: Enables easier installation in crowded panels and restricted spaces, reducing assembly time. Application: Ideal for space-constrained control enclosures in hazardous environments. Feature: NEMA 6P 4X and NEC/CEC IECEx/ATEX alignment. Business Impact: Provides rugged protection and cross-border compliance, lowering lifecycle and maintenance costs. Application: Global deployments in mining, chemical processing, and oil & gas equipment.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-A12-316PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-A12-316PN?
Enquire Now
FAQs
This plug uses an EEx d gland for hazardous-area terminations and provides Zone 1 IECEx/ATEX certification with IP68/IP66 protection. Plan for pre-assembled termination with #10 AWG conductors, ensure proper gland sealing, and respect the inner/outer sheath ranges (10.5-15.5 mm and 13.5-21.0 mm) to maintain ingress protection and compliant termination in unarmoured cables.
The connector is rated for 40A with #10 AWG conductors and crimp termination, offering high-conductivity silver-plated copper contacts. This combination supports reliable motor control and sensing circuits while maintaining corrosion resistance and robust electrical performance in harsh environments.
Yes. It carries IECEx/ATEX Zone 1 approval and IP68/IP66 protection, along with NEMA 6P 4X ratings, making it well-suited for offshore platforms, mining sites, and chemical plants where explosive atmospheres and harsh conditions are present.
The product conforms to NEC/CEC IECEx/ATEX standards, has Zone 1 hazardous-area approval, and carries NEMA 6P 4X protection. These certifications support global compliance and cross-border equipment deployment in hazardous environments.
Pre-mated, crimped #10 AWG contacts with a robust EEx d gland simplify field termination, reduce wire termination errors, and improve seal integrity. The rugged IP-rated enclosure and corrosion-resistant contacts lower replacement frequency and service time, delivering measurable lifecycle cost savings.
