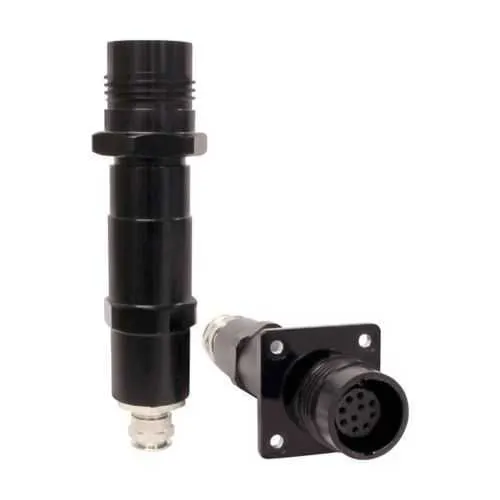

Eaton Crouse-Hinds CEX-133-A12-327PN - Zone 1 Ex d Plug
Part Number: CEX-133-A12-327PN
Quick Summary
CEX-133-A12-327PN cable mounted plug from Eaton Crouse-Hinds provides rugged hazardous-location connectivity for industrial automation and control panels in petrochemical, mining, and offshore environments. In practice, incorrect seals, gland choices, or inadequate ingress protection can lead to costly downtime and noncompliance. This device combines Zone 1 Ex d protection with IP68/IP66 sealing and a robust NEMA 6P 4X enclosure, delivering reliable operation even under immersion or washdown. By using the right gland, cable type, and termination method, you reduce field failures and maintenance cycles. The product’s rugged construction and industry-standard certifications support compliant installations, faster commissioning, and extended service life, while integrating smoothly with Roughneck connectors and standard #12 AWG wiring.
Product Information
Extended Description
CEX-133-A12-327PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #12 AWG, Crimp, Pin, 10.5 - 15.5 inner sheath, 13.5 - 21.0 outer sheath, 12 shell, 3 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-A12-327PN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1 lb
UPC
662276694828
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP68 IP66
Shell size
12
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
10.5 - 15.5
Outer sheath (min/max)
13.5 - 21.0
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133-A12-327PN
Hazardous-area protection and reliability drive business value. Feature: Zone 1 Ex d hazardous-location compliance paired with robust Eex d gland. Business impact: ensures safe installation in potentially explosive environments, reducing compliance risk and commissioning delays. Application: motor control panels in oil & gas, chemical processing, or mining where atmospheric ignition sources are present. Feature: Unarmoured cable compatibility with #12 AWG conductors and crimp contact termination. Business impact: simplifies field assembly, lowers termination errors, and improves current-carrying capacity for 30A circuits. Application: field connections in hazardous zones requiring durable, vibration-resistant terminations. Feature: IP68/IP66 protection and NEMA 6P 4X rating. Business impact: prolonged enclosure sealing against water, dust, and harsh washdowns, lowering maintenance costs. Application: outdoor or wet environments and rugged plant floors. Feature: Roughneck shell size 12 with a 12-shell configuration and 3 contacts. Business impact: standardized, modular connectivity enabling faster panel builds and easier replacement. Application: multi-pin coupling for reliable, scalable control systems. Insight: crimp termination and silver-plated copper contacts offer corrosion resistance for long service life in aggressive environments.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-A12-327PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-A12-327PN?
Enquire Now
FAQs
Install the plug using the Eex d gland specified for Zone 1 environments, and terminate with crimp contacts for reliable current path and vibration resistance. Ensure the inner sheath is within 10.5–15.5 mm and outer sheath within 13.5–21.0 mm to maintain proper seal, and verify the 12-shell, 3-contact configuration matches the mating connector. Follow the IF 1683 installation guidance for hazardous-area assemblies to ensure compliant gasketing and ingress protection.
The CEX-133-A12-327PN is rated for 30A with #12 AWG conductors and a pin contact configuration. It features an Eex d gland for Zone 1 hazardous locations, unarmoured cable compatibility, and an IP68/IP66 rating along with a NEMA 6P 4X enclosure, suitable for immersion and harsh washdown environments.
Best suited for hazardous-area control panels, pumps, and motors in oil & gas, chemical processing, and mining where Zone 1 environments exist. Its robust sealing and gland protection support reliable operation under exposure to water, dust, and explosive atmospheres, while the 30A rating and #12 AWG compatibility align with common control-system wiring practices.
This connector carries IECEx/ATEX certifications for Zone 1 hazardous locations, NEC/CEC standards, and IP66/IP68 ingress protection, plus a NEMA 6P 4X enclosure rating. It is designed for Hazardous/Classified Locations, ensuring safe operation under explosive atmosphere conditions and demanding industrial environments.
The CEX-133-A12-327PN reduces maintenance downtime through reliable gas-tight sealing and robust gland protection, minimizing re-terminations and field errors. Its standardized Roughneck design accelerates commissioning, while corrosion-resistant contacts and durable housing extend service life in harsh environments, delivering lower total cost of ownership over the asset lifecycle.
