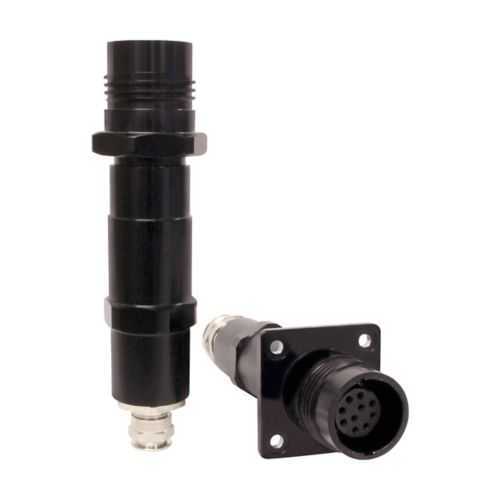

Eaton Crouse-Hinds CEX-133-B-12-354-PN - Zone 1 Plug
Part Number: CEX-133-B-12-354-PN-CH
Quick Summary
CEX-133-B-12-354-PN is a rugged cable-mounted plug designed for hazardous‑location wiring in demanding industrial environments. This connectors solution simplifies field assembly by integrating a sealed Eex d gland and a robust electrical interface for unarmoured cables up to 30A. Manufacturers and engineers often struggle with sealing reliability, gland compatibility, and regulatory compliance when wiring in Zone 1 conditions; this plug addresses those pain points with certified protection and durable construction. Key certifications include IECEx/ATEX Zone 1 approval, IP66/IP68 ingress protection, and NEMA 4X 6P enclosure rating, ensuring safe operation outdoors and in corrosive environments. By streamlining installation and improving long-term reliability, it supports faster commissioning, lower maintenance costs, and compliant hazardous-location wiring for control panels and field junctions.
Product Information
Extended Description
CEX-133-B-12-354-PN-CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #12 AWG, Crimp, Pin, 13.5 - 20.5 inner sheath, 18.0 - 27.5 outer sheath, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-B-12-354-PN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1 lb
UPC
662275360397
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
4X 6P
Ingress protection (IP) ratings
IP66 IP68
Shell size
12
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
13.5 - 20.5
Outer sheath (min/max)
18.0 - 27.5
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Feature: 30A amperage rating and #12 AWG copper pins. Business Impact: Enables reliable power and signal transmission for common control circuits within hazardous environments. Application: Ideal for control panels and field wiring in Zone 1 locations. Feature: Integrated EEx d gland. Business Impact: Delivers robust ingress protection and explosion protection, reducing gland mismatches and retrofit needs. Application: Suitable for unarmoured cables in outdoor and manufacturing environments. Feature: Unarmoured cable compatibility. Business Impact: Simplifies sourcing and stocking while speeding up installation. Application: On-site wiring with readily available unarmoured conductors. Feature: Precise inner/outer sheath ranges (13.5–20.5 mm / 18.0–27.5 mm). Business Impact: Improves fit and seal integrity across a range of cable builds, lowering rework. Application: Field installations with varying sheath thicknesses. Feature: Silver plated copper contacts. Business Impact: Lower contact resistance and superior corrosion resistance, extending service life. Application: Long-term reliability in damp or corrosive environments. Feature: Crimp termination with pin contacts. Business Impact: Faster, solder-free assembly and robust retention in harsh conditions. Application: Automated and manual wiring harness assembly. Feature: IP66/IP68 and NEMA 4X 6P ratings. Business Impact: High protection against water, dust, and washdown exposure, reducing downtime. Application: Outdoor, washdown, and industrial floor environments. Feature: IECEx/ATEX Zone 1 and NEC/CEC compliance. Business Impact: Global suitability and regulator-aligned safety, streamlining procurement. Application: Global projects requiring hazardous-location approval and standard compliance.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-B-12-354-PN-CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-B-12-354-PN-CH?
Enquire Now
FAQs
This connector supports unarmoured cables with inner sheath 13.5–20.5 mm and outer sheath 18.0–27.5 mm, using a crimp Pin contact and a built‑in EEx d gland. Ensure shell size 12, copper conductors (#12 AWG), and correct gland sizing to maintain IP66/IP68 sealing and Zone 1 compliance during installation.
IECEx/ATEX Zone 1 certification confirms suitability for hazardous locations where flammable atmospheres may be present. NEC/CEC standards indicate electrical safety and performance requirements across North American and international markets. Together, they reduce project risk by ensuring regulatory compliance and proven protection in volatile environments.
Yes. The connector is rated for 30A with #12 AWG copper contacts, making it appropriate for control circuits and smaller motor loads in hazardous locations. Use the crimp termination as specified to maintain current capacity and seal integrity.
IP66/IP68 protect against dust, water ingress, and immersion under defined conditions, while NEMA 4X offers corrosion resistance in washdown and outdoor settings. Together, they minimize downtime, reduce maintenance frequency, and extend service life in challenging environments typical of industrial facilities.
The single, approved hazardous-location plug reduces assembly time, inventory complexity, and risk of noncompliance. Long-term benefits include fewer field faults, lower replacement costs, and faster commissioning, resulting in lower total cost of ownership for control panels and field connections.
