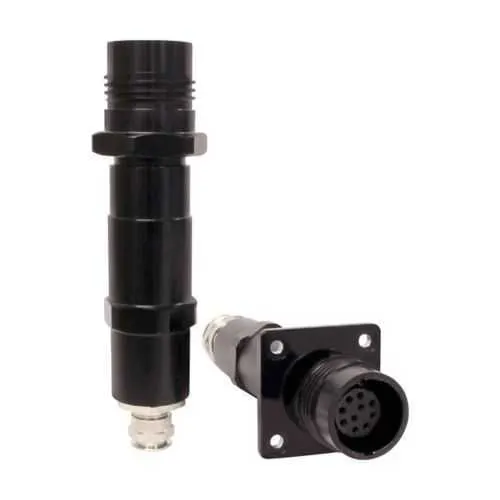

Eaton Crouse-Hinds CEX-133-B12-334PN Roughneck Plug - Zone 1
Part Number: CEX-133-B12-334PN
Quick Summary
CEX-133-B12-334PN is a rugged cable-mounted plug that enables safe, reliable connections in hazardous locations. Maintenance teams often struggle with leaks at glands and compatibility gaps when using unarmoured cable, leading to downtime and safety concerns. This product delivers IECEx/ATEX Zone 1 certification, IP68/IP66 ingress protection, and NEMA 6P 4X ratings to withstand dust, moisture, and corrosive environments. Designed for field installation and compliant procurement, it supports #16 AWG conductors with a crimp termination and a robust Eex d gland, delivering long service life and reduced lifecycle costs for oil & gas, chemical processing, and heavy industry installations.
Product Information
Extended Description
CEX-133-B12-334PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 18A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #16 AWG, Crimp, Pin, 13.5 - 20.5 inner sheath, 18.0 - 27.5 outer sheath, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-B12-334PN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1 lb
UPC
662276683488
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP68 IP66
Shell size
12
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
13.5 - 20.5
Outer sheath (min/max)
18.0 - 27.5
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133-B12-334PN
Feature: EEx d hazardous-area cable gland provides robust sealing and intrinsically safe interfaces. Business Impact: Reduces gland leaks, improving operator safety and uptime in Zone 1 environments. Application: Suitable for continuous operation in hazardous locations with unarmoured cables. Feature: Unarmoured cable compatibility with a 13.5–20.5 mm inner sheath and 18.0–27.5 mm outer sheath. Business Impact: Simplifies wiring from standard field devices without armoring, cutting installation time. Application: Field wiring for control panels and hazardous-area equipment. Feature: 18 A amperage rating with #16 AWG silver-plated copper contacts. Business Impact: Supports common control signals and power interfaces with reliable, low-contact resistance. Application: Power and signal connections in industrial automation networks. Feature: Crimp termination and male pin contact configuration. Business Impact: Delivers quick, vibration-resistant terminations that resist loosening in harsh environments. Application: Field connections for actuators, sensors, and thin-win wiring in hazardous areas. Feature: IP68/IP66 protection and Zone 1 certification. Business Impact: Ensures ingress protection against dust and water, and compliance for hazardous-location installations. Application: Offshore platforms, chemical plants, and processing facilities where equipment is exposed to moisture and dust. Feature: 12-shell housing with compact dimensions (6.57 in length, 1.75 in width/height). Business Impact: Enables space-efficient mounting in control cabinets and restricted enclosures. Application: Industrial cabinets and hazardous-location junctions where footprint matters.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-B12-334PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-B12-334PN?
Enquire Now
FAQs
Begin by selecting the EEx d gland for the unarmoured branch, strip the #16 AWG conductors, and perform a proper crimp termination to the silver-plated copper pins. Insert the termination into the 12-shell housing, ensure the inner and outer sheath dimensions match the specified ranges, and tighten the gland to achieve IP68/IP66 sealing. This method reduces ingress paths and ensures compliance with Zone 1 requirements for hazardous locations.
The CEX-133-B12-334PN carries IECEx/ATEX Zone 1 certification, is rated IP68/IP66 for ingress protection, and meets NEMA 6P 4X standards. It is designed for 18 A with #16 AWG silver-plated copper contacts in a male pin configuration with crimp termination, suitable for unarmoured cables in hazardous-area equipment.
Yes. The product is designed for Hazardous/Classified Locations with Zone 1 certification, EEx d gland, and rugged IP66/IP68 protection. It supports critical control and power wiring with reliable sealing, making it well-suited for offshore platforms, refineries, and chemical plants where explosive atmospheres and moisture ingress are common concerns.
Expect IECEx/ATEX compliance for Zone 1 hazardous locations, NEMA 6P 4X rating for harsh environments, and IP68/IP66 ingress protection. These standards ensure safe operation under dust, water exposure, and corrosive conditions, aligning with typical industrial automation and process-control requirements.
The crimp termination with silver-plated copper contacts provides durable electrical connections that resist corrosion and loosening under vibration. The rugged EEx d gland and robust sealing reduce leak risks, extend service life in harsh environments, and minimize downtime—delivering lower maintenance costs and a faster return on investment in hazardous-location installations.
