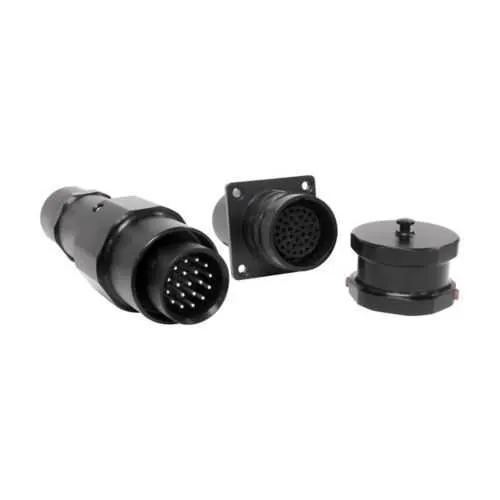

Eaton Crouse-Hinds CEX-133-B16-328PN - IECEx Zone 1
Part Number: CEX-133-B16-328PN
Quick Summary
Eaton Crouse-Hinds CEX cable mounted plug provides rugged power connections for hazardous-area machinery. Engineers struggle with unarmoured, gasketed IP68 solutions that fit tight spaces and meet hazardous-location codes. It carries IECEx/ATEX Zone 1 certification, IP68/IP66 ingress protection, and NEMA 6P 4X suitability for rugged, hazardous environments. As a result, it supports fast, compliant installation with Eex d glands and 16-shell configurations, delivering reliability, safer maintenance, and lower total cost of ownership. This makes it a strategic choice for panel builders, OEMs, and field engineers who demand robust hazardous-location connectors with durable copper contacts and proven sealing.
Product Information
Extended Description
CEX-133-B16-328PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 55A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #8 AWG, Crimp, Pin, 13.5 - 20.5 inner sheath, 18.0 - 27.5 outer sheath, 16 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-B16-328PN
Product Length/Depth
8.57 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.5 lb
UPC
662276694866
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP68 IP66
Shell size
16
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
13.5 - 20.5
Outer sheath (min/max)
18.0 - 27.5
Contact size
#8 AWG
Amperage Rating
55 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133-B16-328PN
Feature: Rugged enclosure and hazardous-location ratings. Business impact: Protects against dust, water ingress, and explosive atmospheres, enabling safe operation in Zone 1 environments. Application: Offshore platforms, chemical plants, and continuous-process facilities. Feature: EEx d gland compatibility with unarmoured cable. Impact: Simplifies installation, reduces sealing failure risk, and speeds field terminations. Application: Control cabinets and field junctions with tight space constraints. Feature: 55 A rating and #8 AWG crimp contacts. Impact: Supports high current loads with low contact resistance, improving motor starters and power feeds. Application: Heavy machinery and multi-pin connectors in hazardous areas. Feature: 16 shell size and copper contacts with silver plating. Impact: Reliable mechanical fit and durable electrical performance across temperature cycles. Application: Multi-pin assemblies in challenging environments. Feature: IECEx/ATEX Zone 1, IP68/IP66, and NEMA 6P 4X certifications. Impact: Global compliance and rugged protection reduce rework and warranty costs. Application: Global projects requiring hazardous-location compliance and long-term reliability.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-B16-328PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-B16-328PN?
Enquire Now
FAQs
The CEX-133-B16-328PN uses an EEx d gland designed for wiring unarmoured cables, which is essential for safe terminations in hazardous areas. It is Zone 1 certified under IECEx/ATEX, meaning equipment can operate in environments with explosive gas atmospheres. The gland provides a robust seal against dust, moisture, and chemical exposure, reducing ignition risk during field terminations.
It accepts #8 AWG conductors terminated by crimp contacts made of silver-plated copper, providing low contact resistance and high current capability. This combination is ideal for 55 A ratings and multi-pin assemblies, offering reliable, vibration-resistant connections in demanding hazardous-location environments.
Yes. The connector carries IP68 and IP66 protection ratings and is suitable for NEMA 6P 4X environments, enabling operation in wet, dusty, and harsh hazardous locations. The combination of sealing and rugged construction supports long service life with minimal maintenance in chemical plants, oil & gas facilities, and similar settings.
The connector features an 8.57 inch length, 2.25 inch width, and 2.25 inch height, housed in a 16-shell configuration. This compact footprint facilitates panel mounting in restricted spaces while maintaining compatibility with unarmoured cable assemblies and the EEx d gland for sealed terminations.
It meets IECEx/ATEX Zone 1 and NEC/CEC standards, along with IP68/IP66 and NEMA 6P 4X where applicable. This global certification suite enables use across regions without re-engineering, reducing regulatory risk, accelerating procurement, and supporting deployment in multinational projects requiring hazardous-location compliance.
