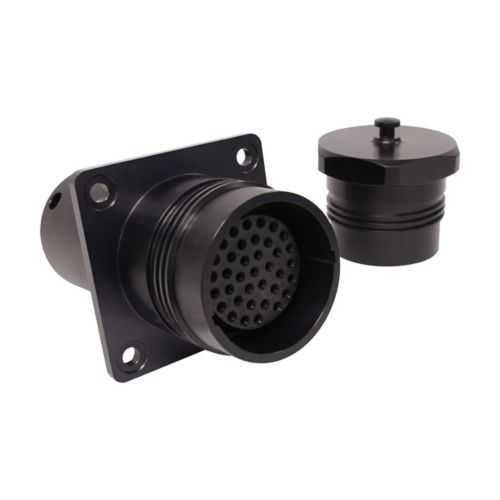

Eaton Crouse-Hinds CEX-133-C20-359PN Cable Plug - Ex d
Part Number: CEX-133-C20-359PN
Quick Summary
CEX-133-C20-359PN is a rugged cable mounted plug used for hazardous-location wiring in tough industrial environments. Facilities teams often wrestle with gland compatibility, secure terminations, and reliable sealing on unarmoured cables. This connector features IECEx/ATEX certifications and Zone 1 hazardous-area rating with IP66/IP68 protection, delivering safety and integrity in demanding installations. By pairing a #8 AWG copper contact with silver-plated contacts and Crimp termination, it simplifies field assembly and minimizes fault points. Designers and procurement managers benefit from a proven, compact shell size 20 and a robust 55 A amperage rating, reducing downtime and lifecycle costs while maintaining compliance with global standards.
Product Information
Extended Description
CEX-133-C20-359PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 55A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #8 AWG, Crimp, Pin, 18.0 - 27.5 inner sheath, 23.0 - 34.0 outer sheath, 20 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133-C20-359PN
Product Length/Depth
8.57 in
Product Height
2.25 in
Product Width
2.25 in
Product Weight
1.5 lb
UPC
662276694842
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
4X 6P
Ingress protection (IP) ratings
IP66 IP68
Shell size
20
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
18.0 - 27.5
Outer sheath (min/max)
23.0 - 34.0
Contact size
#8 AWG
Amperage Rating
55 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133-C20-359PN
Feature 55 A amperage rating → Business Impact supports high-current devices with reduced voltage drop and improved motor/heater startup reliability; Application suitable for demanding industrial loads such as lighting, controls, and actuators in hazardous environments. Feature Ex d gland for hazardous-location compatibility → Business Impact ensures safe gland integration and minimized ignition risk; Application ideal for unarmoured cables in Zone 1 installations where robust sealing is required. Feature IP66/IP68 protection and NEMA 4X 6P compatibility → Business Impact delivers ingress protection against dust, water, and harsh conditions, lowering maintenance and replacement costs; Application fits outdoor or washdown areas in chemical plants and offshore facilities. Feature Silver-plated copper contacts and Crimp termination → Business Impact reduces contact resistance and corrosion, improving reliability and long-term performance; Application supports fast, repeatable field terminations for #8 AWG conductors. Feature Shell size 20 and 8-27.5 mm inner/23-34 mm outer sheath ranges → Business Impact enables precise fitting within compact enclosures and flexible cable routing; Application enhances installation efficiency in tight spaces and complex layouts. This product’s compatibility with IECEx/ATEX standards, Zone 1 classification, and EEx d gland simplifies procurement and compliance across global facilities, making it a reliable choice for hazardous-area connectors and unarmoured cable systems.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133-C20-359PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133-C20-359PN?
Enquire Now
FAQs
The CEX-133-C20-359PN uses an EEx d gland and is designed for unarmoured cables with inner sheath in the range 18.0–27.5 mm and outer sheath 23.0–34.0 mm. It supports #8 AWG conductors with crimp termination, enabling secure, gas-tight connections in Zone 1 hazardous locations. When selecting glands, ensure compatibility with the gland thread and enclosure ratings to maintain IP66/IP68 protection and NEMA 4X performance.
This plug is rated for 55 A and uses silver-plated copper contacts for reliable conduction. It is supplied for Zone 1 hazardous locations under IECEx/ATEX and meets IP66/IP68 protection standards with a NEMA 4X 6P configuration, making it suitable for harsh environments and washdown areas.
Yes. The product carries IECEx/ATEX certifications with Zone 1 hazardous ratings and area classification for hazardous/classified locations. It is designed to operate safely in such environments, with a robust EEx d gland and corrosion-resistant contacts to maintain performance in demanding industrial settings.
The CEX-133-C20-359PN uses crimp termination for #8 AWG conductors and a compact shell size 20, which simplifies routing and reduces field assembly time. The integrated EEx d gland minimizes gland-to-cable transitions, and the unarmoured cable compatibility lowers preparatory work. Overall, expect shorter commissioning times and fewer sealing issues in Zone 1 installations.
By combining robust IP66/IP68 protection, Zone 1 certification, durable silver-plated contacts, and a reliable crimp-based termination, the connector reduces downtime, maintenance costs, and risk of ignition. The compatibility with standard #8 AWG conductors and unarmoured cables helps lower spare-part inventory, while IECEx/ATEX compliance supports global operations and safer, compliant plant performance.
