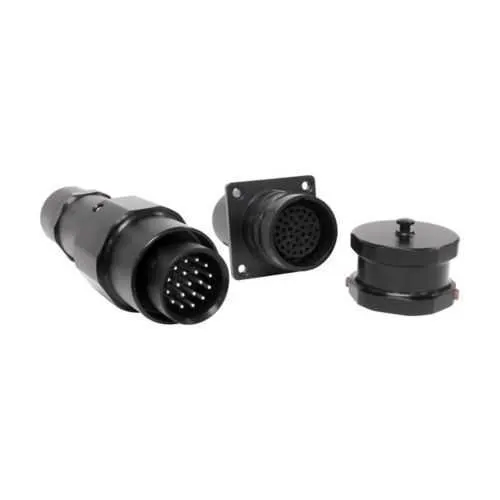

Crouse-Hinds CEX-133A16-312PN Cable Mounted Plug - Zone 1
Part Number: CEX-133A16-312PN
Quick Summary
Crouse-Hinds CEX-133A16-312PN is a rugged cable mounted plug designed for hazardous-location wiring in industrial automation. Engineers often face sealing, gland compatibility, and field-termination challenges in tough environments, which can lead to leaks, downtime, and non-compliance. This connector delivers IECEx/ATEX Zone 1, IP68/IP66, and NEMA 6P 4X certifications to support safe, compliant installations while withstanding demanding plant conditions. By pairing a 30A rating with #12 AWG silver-plated copper contacts and a crimp termination, it ensures reliable power and signal transmission in control panels, motor starters, and field wiring, helping reduce maintenance costs and unplanned downtime.
Product Information
Extended Description
CEX-133A16-312PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #12 AWG, Crimp, Pin, 10.0 - 15.5 inner sheath, 13.5 - 21.0 outer sheath, 16 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133A16-312PN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1.35 lb
UPC
662276653863
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP68 IP66
Shell size
16
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
10.0 - 15.5
Outer sheath (min/max)
13.5 - 21.0
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133A16-312PN
Feature → Business Impact → Application: Zone 1 IECEx/ATEX certification, IP68/IP66 protection and NEMA 6P 4X rating translate to compliant, safer operation in hazardous locations such as chemical plants, oil & gas facilities, and mining sites, reducing regulatory risk and potential process interruptions. Feature → Business Impact → Application: EEx d gland and unarmoured cable type provide robust sealing and straightforward installation in harsh environments, enabling faster commissioning and lower risk of ingress over the cable run in rugged plants. Feature → Business Impact → Application: 30A amperage rating with #12 AWG copper contacts and a crimp termination delivers reliable current capacity with minimal contact resistance, supporting compact control panels and dependable motor-control wiring in harsh environments. Feature → Business Impact → Application: Silver-plated copper contacts offer improved corrosion resistance and longevity under vibration and contamination, increasing connector life and reducing replacement intervals in continuous-duty systems. Feature → Business Impact → Application: Shell size 16 with a 6.57 in length footprint provides a compact yet robust solution for space-constrained harnesses, enabling easier routing in crowded panel environments. Feature → Business Impact → Application: Comprehensive documentation and compatibility with Roughneck multi-pin connectors (brochures, installation instructions, and catalog pages) streamline procurement, training, and on-site installation, lowering total cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133A16-312PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133A16-312PN?
Enquire Now
FAQs
For Zone 1 installations, ensure the EEx d gland is properly seated on unarmoured cable within the specified inner (10.0–15.5) and outer (13.5–21.0) sheath ranges, and perform a precise crimp termination with #12 AWG conductors. Confirm IP68/IP66 sealing and correct mating with the corresponding Roughneck connector to maintain hazardous-location compliance.
The CEX-133A16-312PN is certified for IECEx/ATEX Zone 1 operations, rated NEMA 6P 4X, and provides IP68 and IP66 protection. These certifications ensure safe operation, dust and water ingress resistance, and reliability in demanding environments such as chemical plants, petrochemical facilities, and mining operations.
Yes. It is designed for #12 AWG conductors with crimp termination and utilizes an EEx d gland for cable entries. The unarmoured cable configuration and 6.57 in length shell (Size 16) support compact panel mounting and straightforward field termination, compatible with the Roughneck multi-pin family and standard gland entries.
Typical applications include hazardous-area motor control, pump and valve assemblies, and sensor/actuator wiring in chemical processing, oil & gas exploration, and mining. The Zone 1 rating and rugged construction enable reliable operation under vibration, dust, and moisture, while maintaining compliance with IECEx/ATEX and NEC/CEC standards.
Users can reference the Roughneck literature and installation sheets, including IF 1683 instruction sheets, the Roughneck brochure, hazardous-area catalog pages, and the Eaton specification sheet for CEX-133A16-312PN. These assets support correct gland selection, crimp tooling, and compliant installation practices.
