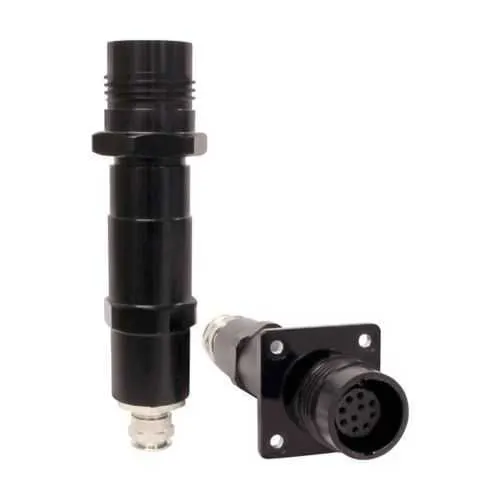

Eaton Crouse-Hinds CEX-133A212-355SN Cable Plug - Zone 1
Part Number: CEX-133A212-355SN
Quick Summary
CEX-133A212-355SN is a rugged cable-mounted plug for hazardous-area electrical connections in industrial automation. When sealing integrity and regulatory compliance matter, a poor fit invites downtime, field repairs, and safety risk. This unit carries IECEx/ATEX Zone 1 certification, IP66/IP68 sealing, and NEMA 4X 6P ruggedness to perform in harsh environments. Designed for unarmoured cables with #16 AWG conductors and crimped sockets, it offers easy field installation, consistent performance, and long-term cost savings. By aligning with Roughneck system components, it simplifies sourcing and maintenance across global sites, helping you minimize downtime and maximize uptime across facilities.
Product Information
Extended Description
CEX-133A212-355SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with gland, 18A, Eex d gland, Unarmoured, Female, Silver plated copper contact, #16 AWG, Crimp, Socket, 7.0 - 12.0 inner sheath, 10.5 - 16.0 outer sheath, 12 shell, 10 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX-133A212-355SN
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1.5 lb
UPC
662276650909
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
4X 6P
Ingress protection (IP) ratings
IP66 IP68
Shell size
12
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
7.0 - 12.0
Outer sheath (min/max)
10.5 - 16.0
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX-133A212-355SN
Feature: EEx d gland enables approved hazardous-area installation and reliable environmental sealing, reducing the risk of internal arcing or enclosure ingress. Business Impact: supports compliance with IECEx/ATEX Zone 1 and NEMA 4X demands while streamlining procurement and field deployment. Application: suitable for chemical processing, oil & gas, and mining facilities where safe electrical distribution in hazardous locations is non-negotiable. Feature: 18 A amperage rating with silver-plated copper contacts and crimp termination for #16 AWG conductors. Business Impact: delivers lower contact resistance, higher current capability, and reduced maintenance frequency, improving motor starts and actuator reliability. Application: drives high-demand industrial equipment with minimal voltage drop and robust corrosion resistance in coastal or chemically aggressive environments. Feature: 12-shell, 10-contact configuration in a female socket, unarmoured cable type with defined inner/outer sheath ranges. Business Impact: enables dense, flexible multi-pin wiring while maintaining rugged integrity and straightforward field termination. Application: ideal for hazardous-area multi-pin connections and scalable machine wiring. Feature: IP66/IP68 sealing and Zone 1 suitability with NEMA 4X 6P protection. Business Impact: ensures ingress protection and safe operation across harsh environments, reducing unplanned downtime. Application: appropriate for protected outdoor installations, chemical plants, and offshore facilities. Feature: EEx d gland and Roughneck compatibility for easy installation and maintenance. Business Impact: strain relief, consistent sealing, and simplified spare-part sourcing. Application: supports quick field servicing and standardization across plant fleets.
Get a Quick Quote for a Eaton Crouse-Hinds CEX-133A212-355SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX-133A212-355SN?
Enquire Now
FAQs
Installation requires respecting the EEx d gland specification for Zone 1 environments. Use the provided gland to achieve proper sealing against dust and moisture, ensuring the inner/outer sheath ranges (7.0–12.0 mm and 10.5–16.0 mm) are compatible with your cable size. Follow Eaton's installation sheets for torque, crimping, and strain-relief guidance to maintain IP66/IP68 integrity.
Yes. The connector is designed for #16 AWG conductors with crimp termination and silver-plated copper contacts. This arrangement minimizes contact resistance, supports reliable current transfer up to 18 A, and helps maintain connector performance through repeated mating cycles in harsh environments.
The CEX-133A212-355SN carries IECEx/ATEX Zone 1 certification, IP66/IP68 ingress protection, and NEMA 4X 6P ruggedness. It is designed for hazardous/classified locations such as chemical plants, oil and gas facilities, mining operations, and other environments requiring certified, sealed electrical connections.
The combination of a robust EEx d gland, sealed IP ratings, and rugged shell reduces ingress risk and limits maintenance frequency. Its 12-shell, 10-contact arrangement supports scalable wiring, while the unarmoured cable compatibility and crimp contacts simplify field servicing, enabling faster replacements and less downtime during outages or routine maintenance.
Key challenges include maintaining seal integrity in Zone 1 areas, accommodating a range of cable jackets and inner/outer sheath sizes, and ensuring reliable current transfer with flexible wiring. This plug addresses them with a gland-based seal, well-defined cable ranges, and durable silver-plated contacts, reducing risk of arcing, moisture intrusion, and connection failures.
