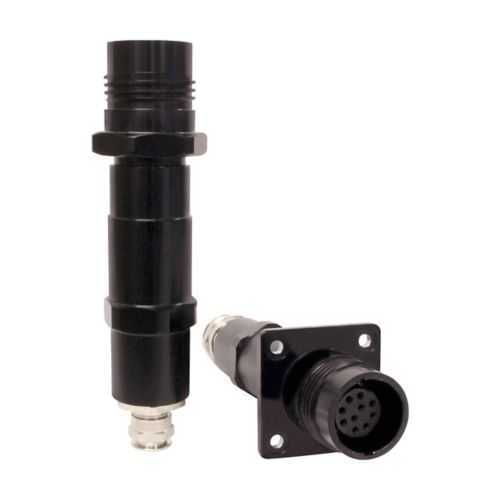

Eaton Crouse-Hinds CEX133-B12-354-PN-BS Cable Plug - Zone 1
Part Number: CEX133-B12-354-PN-BS-CH
Quick Summary
The Eaton Crouse-Hinds CEX133-B12-354-PN-BS cable mounted plug with cable gland enables safe hazardous-area connections. Engineers often struggle to maintain explosion-proof integrity and reliable terminations in Zone 1 environments. This assembly provides IECEx/ATEX certifications, NEC/CEC compliance, and IP66/IP68 protection for rugged risk management. Its armoured and sheathed cable compatibility, 30 A rating, and #12 AWG contacts translate to faster installations and lower downtime, boosting project ROI. In practice, you gain safer field connections and easier maintenance planning across chemical, oil and gas, and processing facilities. Designed for harsh environments, it supports scalable harnessing and compliant splices with minimal training.
Product Information
Extended Description
CEX133-B12-354-PN-BS-CH Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Armoured and sheathed, Male, Silver plated copper contact, #12 AWG, Crimp, Pin, 13.5 - 20.5 inner sheath, 18.0 - 27.5 outer sheath, 12 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX133-B12-354-PN-BS
Product Length/Depth
6.57 in
Product Height
1.75 in
Product Width
1.75 in
Product Weight
1 lb
UPC
662275356635
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
4X 6P
Ingress protection (IP) ratings
IP66 IP68
Shell size
12
Cable hardware
Eex d Gland
Cable type
Armoured and Sheathed
Inner sheath (min/max)
13.5 - 20.5
Outer sheath (min/max)
18.0 - 27.5
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX133-B12-354-PN-BS
Feature: EEx d cable gland for hazardous locations. This delivers explosion-protected integrity, supporting Zone 1 installations and reducing ignition risk, which translates to safer commissioning and ongoing operation in chemical plants and refineries. Application: Hazardous-area connectors used in oil, gas, mining, and petrochemical facilities. Business impact: Compliance with IECEx/ATEX and NEC/CEC standards, minimizing non-conformances and speeding audit readiness. Feature: Armoured and sheathed cable compatibility with inner/outer sheath ranges. This enables robust field wiring for #12 AWG conductors and armored cables, improving long-term durability and reducing failure modes in tough environments. Application: Industrial automation panels near wash-down zones or outdoor installations. Business impact: Lower maintenance frequency and extended service life, driving lower lifecycle costs. Feature: IP66/IP68 sealing and NEMA 4X 6P rugged enclosure. This protects against dust, water ingress, and harsh weather, ensuring uptime in challenging environments. Application: Outdoor substations, chemical plants, offshore platforms. Business impact: Fewer leaks and corrosion-related outages, boosting system reliability and safety compliance. Feature: Silver-plated copper contact and 30 A, #12 AWG performance. This combination provides reliable electrical conductivity and corrosion resistance, reducing contact resistance and heating. Application: Power distribution and signal integrity in hazardous locations. Business impact: Improved efficiency, reduced contact maintenance, and safer electrical connections. Feature: Crimp termination and 12 shell size. This supports quick, repeatable field assembly with secure, vibration-resistant connections. Application: Installation in compact enclosures and tight cable runs. Business impact: Shorter commissioning times, lower labor costs, and easier spares management. Feature: Global certifications and hazardous-location ratings. This ensures cross-border applicability and faster project deployment in multinational facilities. Application: Global manufacturing, energy, and process industries. Business impact: Streamlined procurement, reduced compliance risk, and consistent performance across sites.
Get a Quick Quote for a Eaton Crouse-Hinds CEX133-B12-354-PN-BS-CH
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX133-B12-354-PN-BS-CH?
Enquire Now
FAQs
Yes. It supports armoured and sheathed cables with inner sheath 13.5-20.5 mm and outer sheath 18.0-27.5 mm, using an EEx d gland and crimp contact for secure terminations.
The connector is rated for 30 A with #12 AWG silver-plated copper contacts, delivering reliable power delivery and corrosion resistance.
It is designed for Hazardous/Classified Locations (Zone 1) and is suitable for chemical plants, oil and gas facilities, and mining environments needing explosion protection.
It carries IECEx/ATEX and NEC/CEC compliance, IP66/IP68 sealing, and NEMA 4X 6P ratings, ensuring global applicability and rugged performance.
Crimp terminations and robust seals reduce field labor and rework, while the corrosion-resistant contacts and IP ratings lower maintenance frequency and extend service life, improving total cost of ownership.
