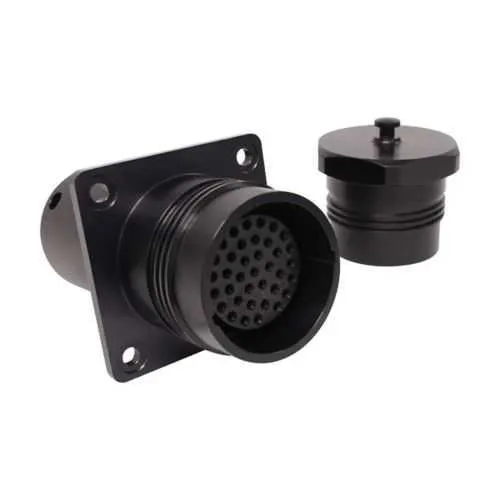

Eaton Crouse-Hinds CEX133-C220-386PN Roughneck Plug - Zone 1
Part Number: CEX133-C220-386PN
Quick Summary
Eaton Crouse-Hinds Roughneck CEX133-C220-386PN cable-mounted plug with cable gland provides rugged, secure terminations for hazardous-area wiring. Engineers often contend with gland leaks and inconsistent protection ratings in hostile environments, leading to delays and maintenance costs. This product carries IECEx/ATEX Zone 1 approval, IP66/IP68 protection, and a NEMA 6P 4X rating, delivering proven safety and reliability. Designed for unarmoured cable with #12 AWG conductors and crimp termination, it accelerates installation while reducing long-term service expenses. By pairing strong sealing, robust materials, and easy field assembly, it supports compliant, efficient electrical distribution in demanding plants and refineries.
Product Information
Extended Description
CEX133-C220-386PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, #12 AWG, Crimp, Pin, 23.0 - 34.0 inner sheath, 29.0 - 41.0 outer sheath, 20 shell, 37 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX133-C220-386PN
Product Length/Depth
8.57 in
Product Height
2.75 in
Product Width
2.75 in
Product Weight
1.5 lb
UPC
662276717138
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP66 IP68
Shell size
20
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
23.0 - 34.0
Outer sheath (min/max)
29.0 - 41.0
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX133-C220-386PN
Feature 1: 30A amperage rating with crimp termination. Business Impact: Enables secure, code-compliant connections for typical motor and control circuits without rework. Application: Panel installations and hazardous-area motor feeds using #12 AWG conductors. Feature 2: EEx d gland with IP66/IP68 protection. Business Impact: Maintains ingress protection in wet, dusty environments and under frequent washdowns, reducing fault rates. Application: Chemical plants, off-shore platforms, mining sites. Feature 3: Unarmoured cable compatibility with defined inner/outer sheath ranges. Business Impact: Simplifies field wiring by accommodating common customer cables, lowering inventory needs. Application: Flexible site wiring for hazardous locations. Feature 4: Silver-plated copper contacts with pin termination. Business Impact: Low contact resistance, high corrosion resistance, extended connector life. Application: Harsh atmospheres requiring durable electrical interfaces. Feature 5: Shell size 20 with 37 contacts and male pin configuration. Business Impact: Supports multi-circuit connectivity in a compact footprint, enabling richer harness design. Application: Control panels and multi-line assemblies in hazardous areas. Feature 6: Comprehensive certification suite (IECEx/ATEX Zone 1, IP66/IP68, NEMA 6P 4X). Business Impact: Regulatory alignment minimizes project risk and accelerates approvals. Application: Global industrial installations needing strict compliance and robust sealing.
Get a Quick Quote for a Eaton Crouse-Hinds CEX133-C220-386PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX133-C220-386PN?
Enquire Now
FAQs
For hazardous-location installations, use the EEx d gland to seal the unarmoured cable and ensure mating to compatible Roughneck connectors. Verify the Zone 1 IECEx/ATEX rating, IP66/IP68 protection, and NEMA 6P 4X suitability. Use #12 AWG conductors with crimp termination, and follow installation instructions IF 1683 for correct torque and sealing.
Yes. The connector is designed for #12 AWG copper conductors with crimp termination, providing a reliable, low-resistance path. Ensure proper crimp tooling and the correct crimp terminals to maintain sealing integrity and electrical performance in hazardous environments.
The plug carries IECEx/ATEX Zone 1 approval, IP66/IP68 ingress protection, and a NEMA 6P 4X rating, making it suitable for hazardous/classified locations in chemical plants, oil & gas, mining, and other challenging facilities where rugged sealing and dependable electrical contacts are required.
The unit uses shell size 20, measures 8.57 inches in length with a height and width of 2.75 inches, and weighs about 1.5 pounds. This compact yet sturdy form factor facilitates enclosure packing, simplifies cable routing, and supports easy integration into existing Roughneck assemblies without excessive enclosure modification.
Technical literature is available through Eaton’s download center: the Roughneck brochure, Roughneck Hazardous Area catalog page, IF 1683 installation sheet, and the Eaton Specification Sheet for CEX133-C220-386PN. Accessing these documents helps verify wiring methods, gland selection, and installation steps to ensure compliant, efficient setups.
