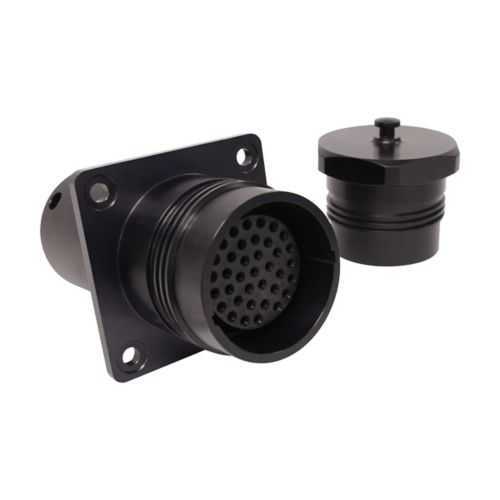

Eaton Crouse-Hinds CEX133-C220-386SN Cable Plug - Zone 1
Part Number: CEX133-C220-386SN
Quick Summary
CEX133-C220-386SN cable mounted plug from Eaton Crouse-Hinds provides field-ready, hazardous-location connections. Engineers often struggle with reliable seals, correct gland selection, and approvals when wiring in dangerous environments. This solution carries IECEx/ATEX, IP66/IP68, and NEMA 6P 4X certifications, underpinning safe operation in Zone 1 installations. With an emphasis on unarmoured cables, #12 AWG contacts, and a 30A rating, it delivers durable performance and lifecycle value for industrial automation projects. The design supports rapid installation, consistent crimp terminations, and easy sourcing across maintenance cycles, helping procurement streamline compliance and reduce downtime.
Product Information
Extended Description
CEX133-C220-386SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 30A, Eex d gland, Unarmoured, Female, Silver plated copper contacts, #12 AWG, Crimp, Socket, 23.0 - 34.0 inner sheath, 29.0 - 41.0 outer sheath, 20 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX133-C220-386SN
Product Length/Depth
9.07 in
Product Height
3.25 in
Product Width
3.25 in
Product Weight
1.5 lb
UPC
662276717145
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP66 IP68
Shell size
20
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
23.0 - 34.0
Outer sheath (min/max)
29.0 - 41.0
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX133-C220-386SN
Feature: 30A amperage rating enables reliable power delivery to standard industrial actuators and motors. Business Impact: Supports demanding loads without overheating, reducing circuit protection trips and extending equipment life. Application: Hazardous-area pumps and fans in chemical plants. Feature: Eex d gland for hazardous locations provides certified explosion protection. Business Impact: Ensures compliance, lowers risk of ignition sources, and simplifies compliance audits. Application: Wiring into hazardous-zone control panels. Feature: Unarmoured cable compatibility lowers weight and cost while simplifying field wiring. Business Impact: Faster installation, easier handling in tight spaces, reduced stock diversity. Application: Conveyor drives and remote I/O connections. Feature: Inner sheath 23.0–34.0 mm and outer sheath 29.0–41.0 mm ranges accommodate a wide cable diameter window. Business Impact: Broad compatibility reduces need for multiple adapters and reduces project lead time. Application: Field connections to varied cable builds. Feature: Silver-plated copper contacts improve conductivity and corrosion resistance. Business Impact: Longer connector life in damp or outdoor environments, lower contact resistance over time. Application: Outdoor service entrances and wash-down areas. Feature: IP66/IP68 protection and NEMA 6P 4X ratings provide rugged enclosure protection. Business Impact: Enhances reliability in wet, dusty, and harsh environments, lowering maintenance frequency. Application: Outdoor installations, chemical plants, offshore facilities. Feature: Socket contact with crimp termination offers secure, field-ready assemblies. Business Impact: Quick, repeatable terminations with high mechanical integrity; reduces rework. Application: Quick-change assemblies in production lines.
Get a Quick Quote for a Eaton Crouse-Hinds CEX133-C220-386SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX133-C220-386SN?
Enquire Now
FAQs
Yes. The CEX133-C220-386SN uses an Eex d gland designed for hazardous locations and supports unarmoured cables with a #12 AWG conductor. Its 23.0-34.0 mm inner sheath and 29.0-41.0 mm outer sheath ranges accommodate a variety of common field cables, simplifying procurement and on-site wiring.
Key specs include a 30A amperage rating and a socket contact termination using crimp technology with silver-plated copper contacts. This combination offers solid current handling, reliable contact resistance, and improved corrosion resistance suitable for long-term operation in challenging environments.
Absolutely. The CEX133-C220-386SN is certified for IECEx/ATEX Zone 1 and is designed to withstand hazardous-location conditions. Paired with IP66/IP68 protection and NEMA 6P 4X ratings, it is well-suited for chemical plants, mining, and offshore facilities where explosive atmospheres exist.
This connector is certified under IECEx/ATEX for Zone 1 hazardous locations and carries IP66/IP68 and NEMA 6P 4X ratings. These certifications support regulatory compliance, safe installation, and ongoing maintenance in harsh industrial environments.
The combination of crimp termination, silver-plated copper contacts, and robust sealing reduces maintenance needs by delivering reliable, long-lasting electrical contact and ingress protection. IECEx/ATEX compliance minimizes regulatory risk, while modular compatibility and proven gland design shorten replacement cycles and downtime.
