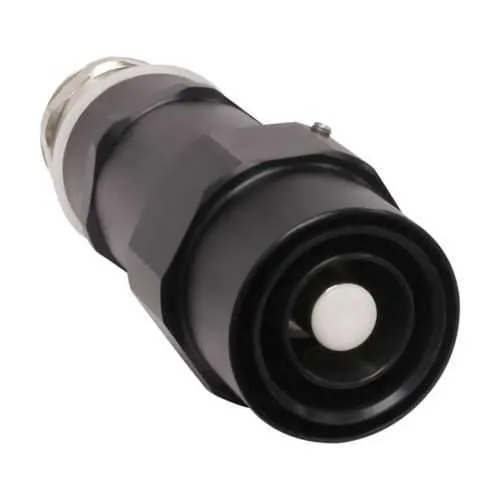

Eaton Crouse-Hinds CEX133-C2C24-386PN Roughneck Plug - IP66/IP68

Part Number: CEX133-C2C24-386PN
Manufacturer
Eaton Crouse-Hinds
Part number
CEX133-C2C24-386PN

Quick Summary

CEX133-C2C24-386PN is a rugged cable mounted plug for hazardous-area electrical connections. In demanding environments, you need dependable sealing and safe gland termination to prevent leaks and downtime. This design carries IECEx/ATEX Zone 1, IP66/IP68 ingress protection, and a NEMA 6P 4X enclosure rating, ensuring safe operation in explosive atmospheres and harsh washdowns. By combining unarmoured cable compatibility with a high-current 777 kcmil contact and silver-plated copper, it delivers reliable power transfer with minimal contact resistance. The solution also supports fast installation and long-term durability, helping OEMs and integrators meet project timelines and lifecycle cost targets while maintaining safety standards.

Product Information

Extended Description

CEX133-C2C24-386PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 1030A, Eex d gland, Unarmoured, Male, Silver plated copper contacts, 777 kcmil, Crimp, Pin, 23.0 - 34.0 inner sheath, 29.0 - 41.0 outer sheath, C24 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX133-C2C24-386PN
Product Length/Depth
9.07 in
Product Height
3.25 in
Product Width
3.25 in
Product Weight
1.5 lb
UPC
662276694576
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP66 IP68
Shell size
C24
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
23.0 - 34.0
Outer sheath (min/max)
29.0 - 41.0
Contact size
777 kcmil
Amperage Rating
1030 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Contact material
Silver plated copper
Feature: High amperage and large contact size enable efficient power delivery. Business Impact: Reduces the number of terminations and minimizes voltage drop on high-amp circuits. Application: Power distribution to motors and feeders in hazardous environments. Paragraph continues with real-world context and long-tail keywords such as hazardous area connectors, IP66/IP68 rugged connectors, and silver-plated copper contacts to support reliability and corrosion resistance. Feature: EEx d gland for explosive atmosphere protection. Business Impact: Improves safety margins and compliance with zone-specific standards. Application: Installations in chemical plants and offshore facilities where gas group IIC/IIA considerations apply. Feature: Unarmoured cable compatibility with 23.0–34.0 mm inner sheath and 29.0–41.0 mm outer sheath. Business Impact: Broad cable compatibility reduces parts diversity and speeds up procurement. Application: Retrofit projects and new builds in harsh environments. Feature: Crimp termination with 777 kcmil contact size. Business Impact: Secure, vibration-resistant connections that resist wear over time. Application: Heavy-duty power interfaces in industrial automation. Feature: IP66/IP68 and NEMA 6P 4X ratings. Business Impact: Superior ingress protection and rugged enclosure suitability. Application: Outdoor, washdown, and wet-location installations. Feature: Male pin contact with silver-plated copper. Business Impact: High conductivity and long-term corrosion resistance. Application: Critical connections in demanding industrial networks and control systems. Feature: General suitability of Roughneck connector family. Business Impact: Streamlined spare parts, easier stocking, and faster field support. Application: OEM equipment and plant maintenance programs.

Get a Quick Quote for a Eaton Crouse-Hinds CEX133-C2C24-386PN

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds CEX133-C2C24-386PN? Enquire Now

FAQs

This connector is designed for unarmoured cables with inner sheath 23.0–34.0 mm and outer sheath 29.0–41.0 mm, enabling straightforward field termination using crimp contacts. The EEx d gland provides a secure, gas-tight seal in hazardous locations, reducing leakage risk during installation and maintenance.
The unit is IECEx/ATEX Zone 1 certified and carries IP66/IP68 ingress protection, along with a NEMA 6P 4X enclosure rating. These certifications ensure safe operation in explosive atmospheres, washdown environments, and demanding industrial settings.
Yes, the connector uses crimp termination with 777 kcmil silver-plated copper contacts. Crimping provides a high-integrity, vibration-resistant connection, reduces assembly time, and minimizes contact resistance for reliable high-current performance in harsh environments.
Absolutely. The CEX133-C2C24-386PN is designed for unarmoured cables and includes an EEx d gland for hazardous-location safety. Its robust shell and seals are optimized for Zone 1 applications, delivering safe and compliant operation.
Roughneck plugs consolidate multiple components into a single rugged unit, reducing spare parts and installation time. The IP66/IP68 rating, corrosion-resistant contacts, and durable enclosure translate to longer service intervals and lower downtime, improving overall lifecycle costs for plant operators and OEMs.
