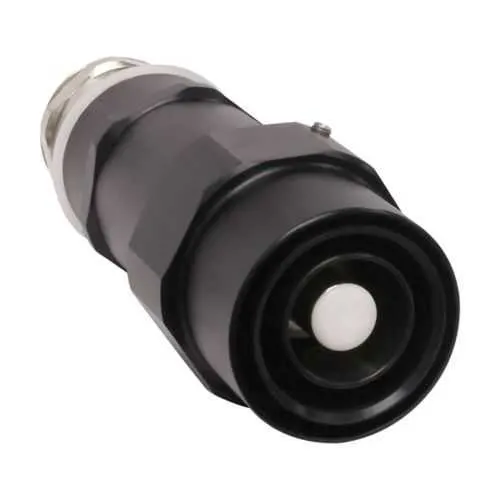

Eaton Crouse-Hinds CEX133-D2C24-386SN Cable Plug - Zone 1
Part Number: CEX133-D2C24-386SN
Quick Summary
CEX133-D2C24-386SN is a rugged cable mounted plug designed for hazardous area installations. Engineers rely on it to securely connect large, unarmoured power cables in Zone 1 environments, reducing exposure to dust, moisture, and arc hazards. This connector carries NEC/CEC and IECEx/ATEX certifications, including Zone 1 hazardous rating, IP66/IP68 protection, and a NEMA 6P 4X enclosure rating for heavy-duty service. The device’s EEx d gland and 777 kcmil contact size support high-current motor feeds, while silver-plated copper contacts ensure low resistance over time. By delivering a compact, compliant solution, it enables safer installations, faster commissioning, and lower total cost of ownership for plant operators and integrators.
Product Information
Extended Description
CEX133-D2C24-386SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland, 1030A, Eex d gland, Unarmoured, Female, Silver plated copper contacts, 777 kcmil, Crimp, Socket, 35.0 - 48.0 inner sheath, 42.0 - 56.0 outer sheath, C24 shell
Product Name
Eaton Crouse-Hinds series Roughneck CEX cable mounted plug with cable gland
Catalog Number
CEX133-D2C24-386SN
Product Length/Depth
9.07 in
Product Height
3.25 in
Product Width
3.25 in
Product Weight
1.35 lb
UPC
662276711679
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 1
NEMA Rating
6P 4X
Ingress protection (IP) ratings
IP66 IP68
Shell size
C24
Cable hardware
Eex d Gland
Cable type
Unarmoured
Inner sheath (min/max)
35.0 - 48.0
Outer sheath (min/max)
42.0 - 56.0
Contact size
777 kcmil
Amperage Rating
1030 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Contact material
Silver plated copper
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Hazardous Area Multi-pin and Single Pole Connectors catalog page
IF 1683 - Roughneck Hazardous Multi-pin Connector
Eaton Specification Sheet - CEX133-D2C24-386SN
Feature: 1030 A amperage rating with a 777 kcmil contact size. Business Impact: Enables reliable high-power delivery to large motors and critical equipment, reducing the need for parallel connections and minimizing heat buildup. Application: Ideal for heavy motor feeds in oil, gas, and chemical processing facilities operating in Zone 1 environments. Feature: EEx d gland and unarmoured cable compatibility. Business Impact: Simplifies seal integrity and gland retention, cutting现场 installation time while improving safety margins. Application: Field-to-enclosure cabling where harsh chemicals or abrasive dust are present. Feature: Shell size C24 with socket contact and Crimp termination using silver-plated copper. Business Impact: Delivers corrosion resistance and low mating resistance for long service life and dependable performance under demanding conditions. Application: Coastal or chemically active plants with frequent connection cycles. Feature: IP66/IP68 ingress protection and hazardous area Zone 1 rating with NEMA 6P 4X compatibility. Business Impact: Protects against water ingress, dust, and explosion hazards, reducing maintenance intervals and unplanned downtime. Application: Outdoor or submerged layouts, offshore platforms, and refineries requiring rugged reliability. Feature: Cable specification support with unarmoured cable and inner/outer sheath ranges (35.0–48.0 mm, 42.0–56.0 mm). Business Impact: Enables flexible cabling options and faster terminations, lowering installation costs and inventory complexity. Application: Systems integrating large-diameter field cables with standardized gland assemblies.
Get a Quick Quote for a Eaton Crouse-Hinds CEX133-D2C24-386SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CEX133-D2C24-386SN?
Enquire Now
FAQs
The CEX133-D2C24-386SN is designed for unarmoured cables with inner sheath 35.0–48.0 mm and outer sheath 42.0–56.0 mm, featuring an EEx d gland. This configuration simplifies sealing and gland retention in Zone 1 environments, reducing installation time and improving safety. When selecting cables, ensure the conductor size aligns with the 777 kcmil/1030 A rating and that connectors are crimped per the specified procedure to maintain IP66/IP68 integrity.
This plug carries NEC/CEC and IECEx/ATEX standards, including Zone 1 hazardous rating, IP66/IP68 ingress protection, and a NEMA 6P 4X enclosure rating. These certifications demonstrate suitability for explosive atmospheres and rugged industrial settings, helping ensure regulatory compliance, safer operation, and reduced risk of penalties or retrofits during audits.
With a 1030 A amperage rating and 777 kcmil contact size, the connector delivers robust, low-resistance power transfer. Silver-plated copper contacts reduce contact resistance over time, improving reliability and reducing maintenance. The Crimp termination method ensures a secure, vibration-resistant join, which is essential for high-load motor feeds in harsh environments.
Yes. The IP66/IP68 protection and Zone 1 certification make it suitable for outdoor, wet, and offshore environments. Its rugged shell size C24 and NEMA 6P 4X compatibility provide enclosure protection against dust, water, and physical impact, enabling durable service in demanding hazardous locations while simplifying installation and future upkeep.
By consolidating power connections into a single, certified assembly with high current capability and robust sealing, the CEX133-D2C24-386SN reduces installation time, lowers the number of potential failure points, and minimizes unplanned downtime. Long-term savings arise from lower maintenance costs, fewer component replacements, and improved compliance with regulatory standards, delivering a favorable ROI in capital-intensive facilities.
