Eaton CFS110-2023 PowerGard Receptacle - HazLoc
Part Number: CFS110-2023
Quick Summary
PowerGard receptacle assemblies provide safe, reliable electrical connections for hazardous locations in industrial facilities. They address a common pain point: rugged environments that threaten equipment integrity and uptime. This model is NEC/CEC compliant with Class I, Division 1 and Class II, Division 1 ratings and NEMA 3/3R protection, ensuring safe operation in demanding atmospheres. By combining copper-free aluminum construction with a compact 1 in trade size, it delivers durable performance without adding excessive weight to field panels. The design supports straightforward retrofit projects, aligns with standard gang boxes, and helps maintenance teams meet strict regulatory timelines. In short, it pairs robust safety with install efficiency and long-term ownership value.
Product Information
Extended Description

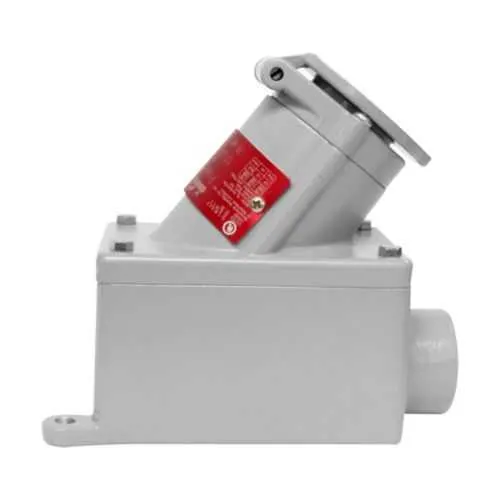

CFS110-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Dead end, 1", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS110-2023
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276357549
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS110-2023
Feature: 20A, 125 Vac two-wire, three-pole configuration in a single-gang, dead-end assembly. Business Impact: Delivers reliable power with straightforward wiring, reducing installation errors and commissioning time. Application: Suitable for hazardous/classified locations in process areas and control panels. Feature: Copper-free aluminum body. Business Impact: Improves corrosion resistance and lowers weight for easier handling and service. Application: Outdoor or chemically aggressive environments in hazardous zones. Feature: 1" trade size with 7.25 in length, 9 in height, 6.25 in width, and a 3.8 lb weight. Business Impact: Compact, field-install friendly footprint that fits standard gang boxes and minimizes enclosure remodeling. Application: Retrofit projects and new builds in tight electrical spaces. Feature: NEC/CEC compliance with Class I, Division 1; Class II, Division 1; Class III ratings and NEMA 3/3R protection. Business Impact: Ensures regulatory compliance and ignition protection across locations, reducing certification risk. Application: Hazardous locations requiring strict safety standards and reliable performance. Feature: Rich documentation and support resources including installation sheets and literature. Business Impact: Streamlines procurement, installation, and training with accessible references. Application: Projects in design and maintenance planning where fast access to specs speeds deployment.
Get a Quick Quote for a Eaton Crouse-Hinds CFS110-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS110-2023?
Enquire Now
FAQs
The CFS110-2023 is designed as a single-gang, dead-end receptacle with a 1 inch trade size, exposing straightforward mounting in standard electrical boxes used in hazardous locations. Its 20A, 125Vac, two-wire, three-pole configuration simplifies wiring and reduces field errors. For retrofit projects, follow the IF 1663 installation guidance to ensure proper sealing, grounding, and enclosure integrity in Class I, Division 1 environments.
Key specs include a 20A amperage rating, 125 Vac voltage rating, copper-free aluminum housing, two-wire, three-pole configuration, and a 1" trade size. It's built for hazardous/classified locations with NEC/CEC alignment and a NEMA 3/3R protection rating, making it suitable for both indoor and outdoor hazardous environments.
This receptacle is designed for Hazardous/Classified Locations, with NEC Class I, Division 1, Class II, Division 1, and Class III ratings. It suits chemical processing plants, oil and gas facilities, mining operations, and other industrial settings where ignition protection and robust enclosure performance are required. It is also appropriate for weather-exposed areas due to its NEMA 3/3R rating.
Essential documentation includes the PowerGard brochure, catalog pages, and the Eaton specification sheet for CFS110-2023. Installation guidance is provided in the IF 1663 PowerGard Receptacles sheet, with Canadian and US certification references available through UL and other regulators. These resources support proper selection, wiring, sealing, and compliance routing for hazardous locations.
PowerGard receptacles offer durable construction (copper-free aluminum) and compliant ratings (NEC/CEC, Class I–III, NEMA 3/3R) that reduce maintenance frequency and downtime. The combination of rugged materials, straightforward installation, and reliable performance lowers total cost of ownership by minimizing replacements, improving uptime, and simplifying audits and inspections in hazardous environments.
