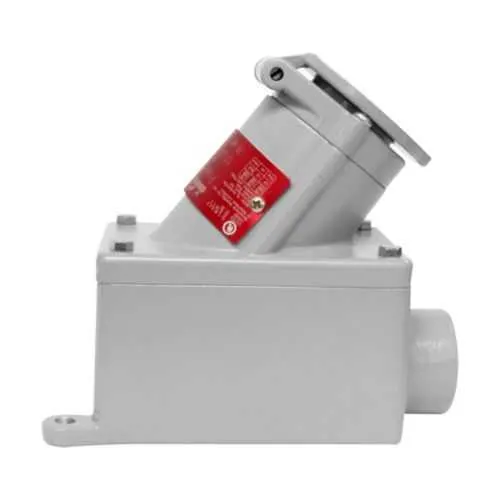

Eaton Crouse-Hinds CFS110-20232 PowerGard Receptacle Assembly - Hazardous/Classified Locations
Part Number: CFS110-20232
Quick Summary
Eaton Crouse-Hinds PowerGard receptacle assembly is a rugged explosion-proof solution for hazardous-location equipment enclosures. In harsh plant environments, unreliable connectors can cause costly downtime and safety risk. This unit carries NEC/CEC compliance along with Class I, Division 1; Class II, Division 1; and Class III ratings, plus a NEMA 3 and 3R enclosure standard to keep installations safe. With a copper-free aluminum body and a 1" trade size, it integrates with the PowerGard family to streamline procurement, maintenance, and overall total cost of ownership for critical process areas.
Product Information
Extended Description
CFS110-20232 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Dead end, 1", 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS110-20232
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276358720
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS110-20232
Feature: 20A, 250V AC rating with two-wire, three-pole configuration in a copper-free aluminum housing. Business Impact: Delivers reliable power delivery in hazardous locations while reducing corrosion-related maintenance and replacement costs. Application: Ideal for control panels and power distribution in chemical plants, oil refineries, and mining applications that demand rugged, compliant outlets. Feature: Single-gang, dead-end style for straightforward installation and compact footprint. Business Impact: Simplifies panel design and speeds up installation, cutting project timelines and labor costs. Application: Fits standard 1" trade-size openings in PowerGard-compatible enclosures across diverse industrial facilities. Feature: NEC/CEC compliance with NEC hazardous ratings (Class I, Division 1; Class II, Division 1; Class III) and NEMA 3/3R ratings. Business Impact: Improves regulatory alignment and reduces compliance risk during audits and inspections. Application: Essential for hazardous-location automation, process equipment, and remote assets in compliance-driven environments. Feature: Physical dimensions (7.25 in length, 9 in height, 6.25 in width) and weight (3.8 lb) optimized for ease of mounting and serviceability. Business Impact: Enables predictable fit and faster service, lowering maintenance downtime. Application: Suitable for fixed enclosures where space planning and accessibility are critical. Feature: Documentation and support ecosystem including installation sheets, catalogs, and datasheets. Business Impact: Accelerates procurement, bid preparation, and regulatory reviews. Application: Helpful for spec-driven projects, field engineers, and maintenance teams leveraging PowerGard resources for compliance and training.
Get a Quick Quote for a Eaton Crouse-Hinds CFS110-20232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS110-20232?
Enquire Now
FAQs
The CFS110-20232 is designed as an explosion-proof, single-gang receptacle for hazardous-location enclosures. It supports 20A at 250V AC and uses copper-free aluminum in a two-wire, three-pole configuration, making it suitable for demanding environments such as chemical plants, oil & gas facilities, and mining operations. Its dead-end, 1" trade-size design simplifies installation and integration with PowerGard systems.
Yes. This receptacle assembly complies with NEC/CEC standards and is rated for NEC hazardous locations, including Class I, Division 1; Class II, Division 1; and Class III. It also carries a NEMA rating of 3 and 3R, indicating suitability for both indoor and outdoor hazardous environments and protection against wind, rain, and external ice formation when used within appropriate enclosures.
This model is a single-gang, dead-end configuration with a 1" trade size, designed for straightforward mounting in PowerGard-compatible enclosures. Key dimensions are 7.25 in depth, 9 in height, and 6.25 in width, with a weight of 3.8 lb. Ensure enclosure cutouts, mounting hardware, and wiring practices meet local codes and the NEC/CEC requirements for hazardous locations.
A range of technical resources is available, including the PowerGard brochure, catalog pages, installation instructions IF 1663, and the official Eaton specification sheet for CFS110-20232. These documents aid in selection, bidding, installation, and compliance verification during project development and commissioning.
Using the CFS110-20232 improves safety and regulatory compliance in hazardous environments, reducing risk exposure and potential downtime. The copper-free aluminum construction lowers corrosion-related maintenance, while the robust NEC/CEC and NEMA ratings streamline audits and approvals. Overall, expectancy includes minimized maintenance costs and faster, safer panel upgrades within PowerGard installations.
