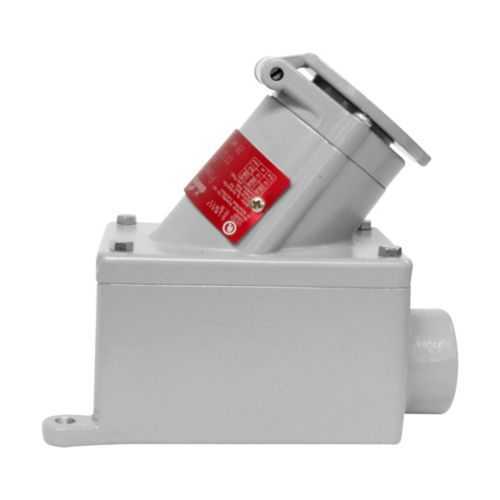

Eaton CFS150-20232-M15 Receptacle Assembly - Hazardous Locations
Part Number: CFS150-20232-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFS150-20232-M15
Category
Quick Summary
The Eaton Crouse-Hinds PowerGard receptacle assembly provides 20A, 250V protection for hazardous locations. Engineers face space constraints and compliance penalties when wiring in demanding environments, making robust enclosures essential. This unit meets NEC/CEC requirements and hazardous-location ratings—Class I, Division 1; Class II, Division 1; Class III—with a NEMA 3/3R housing. Leveraging copper-free aluminum and a 1/2" trade size reduces weight and simplifies installation, enabling faster projects and lower lifecycle costs. With PowerGard documentation and installation sheets available, you can rely on proven compatibility with hazardous-location wiring devices. This combination delivers reliable performance in oil, gas, and chemical processing facilities, ensuring uptime and safer operations.
Product Information
Extended Description
CFS150-20232-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Dead end, 1/2", M15 model, 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS150-20232-M15
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276517196
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Feature: 20A, 250V rating with two-wire, three-pole configuration. Business Impact: Handles standard loads safely in demanding locations while meeting regulatory requirements. Application: Ideal for equipment outlets in hazardous zones where reliable power is critical. Feature: Copper-free aluminum construction. Business Impact: Improves corrosion resistance and reduces weight for easier handling and longer service life. Application: Offshore platforms and chemical plants where durable enclosures are essential. Feature: Dead-end, single-gang enclosure with a 1/2" trade size. Business Impact: Simplifies installation in tight spaces, reduces conduit depth, and speeds commissioning. Application: Compact control panels and remote-siting outlets in constrained installations. Feature: NEC/CEC compliance with Class I, Division 1; Class II, Division 1; Class III ratings and NEMA 3/3R housing. Business Impact: Minimizes regulatory risk, enhances maintenance planning, and supports safe operation across hazardous locations. Application: Process facilities, refineries, and mining sites requiring proven explosion protection. Feature: Comprehensive PowerGard documentation and compatible installation materials. Business Impact: Enables faster procurement, field service, and consistent retrofit processes. Application: Project mobilization and retrofit campaigns where standardization reduces downtime.
Get a Quick Quote for a Eaton Crouse-Hinds CFS150-20232-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS150-20232-M15?
Enquire Now
FAQs
The CFS150-20232-M15 is designed as a single-gang, dead-end receptacle with a 1/2 inch trade size and a two-wire, three-pole configuration. It installs in standard single-gang boxes or hazardous-location-rated enclosures, with NEC/CEC compliance. For proper clearance, use the enclosure dimensions listed (7.25 in depth, 9 in height) to ensure safe operation and service access.
This receptacle is rated for 20A and 250V AC, constructed from copper-free aluminum. It features a two-wire, three-pole configuration in a single-gang, dead-end style, suitable for 1/2 inch trade size installations. Designed for hazardous locations under NEC/CEC, it supports reliable power delivery in demanding industrial environments.
Yes. The CFS150-20232-M15 is designed for hazardous/classified locations, with NEC hazardous ratings for Class I, Division 1 (and Class II, Division 1, Class III) and a NEMA 3/3R enclosure. These ratings align with oil, gas, chemical processing, and related industries where explosion protection and robust sealing are required.
The receptacle supports NEC/CEC compliance and hazardous-location ratings, including Class I, Division 1, Class II, Division 1, and Class III. It also carries a NEMA 3/3R enclosure rating, indicating suitability for outdoor or wet environments and reliable protection against elements and ingress in hazardous settings.
Installation instructions are available in the IF 1663 PowerGard Receptacles sheet, along with brochures and catalog pages for reference. Using PowerGard reduces commissioning time, improves regulatory compliance, and lowers maintenance costs through proven explosion protection and standardized components across hazardous locations, delivering a favorable total cost of ownership over the equipment lifecycle.
