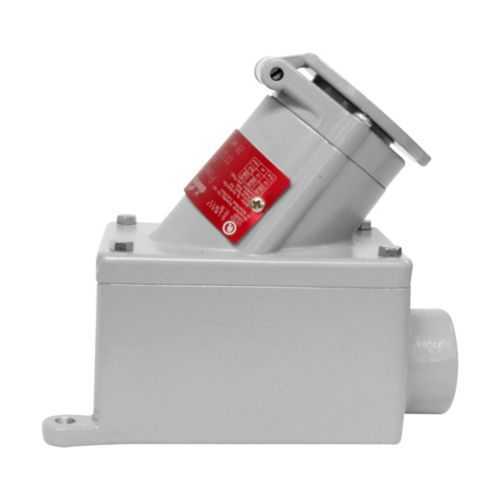

Eaton CFS175-1523 Receptacle Assembly - Hazardous Locations
Part Number: CFS175-1523
Quick Summary
The Eaton Crouse-Hinds CFS175-1523 receptacle assembly is a hazardous-location rated, 15A, 125V power connection designed for rugged industrial installations. In harsh facilities, conventional receptacles risk ignition, corrosion, and noncompliance, leading to costly downtime and safety concerns. It carries NEC/CEC compliance alongside Class I, Division 1; Class II, Division 1; and Class III hazardous-location ratings, plus NEMA 3 and 3R protection for reliable outdoor or indoor use. With a copper-free aluminum housing, dead-end configuration, and a single-gang footprint, it installs quickly and pairs with PowerGard back boxes to streamline installation and support long service life. This combination delivers safety, performance, and total cost of ownership advantages for engineers and procurement teams.
Product Information
Extended Description
CFS175-1523 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 15A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Dead end, 3/4", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS175-1523
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276361805
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
15A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS175-1523
Copper-free aluminum housing provides corrosion resistance and lighter weight, reducing maintenance and enabling longer service life in aggressive environments, which translates to lower lifecycle costs for plants and facilities. This feature supports safer operation in exposed or coastal locations while meeting environmental standards and reducing weight during installation and handling. The 15A, 125V two-wire, three-pole configuration simplifies wiring, minimizes field wiring errors, and accelerates commissioning, directly cutting labor time and potential rework at the job site. The dead-end, single-gang design with a 3/4" trade size ensures compatibility with standard enclosures, enabling rapid retrofits and straightforward integration with existing PowerGard back boxes. NEMA 3 and 3R ratings provide weather and moisture resistance for outdoor, washdown, or damp indoor areas, reducing weather-related downtime. NEC/CEC compliance and UL certifications give engineering teams confidence to meet regulatory requirements while maintaining high safety margins in chemical, oil & gas, and other hazardous industries. The overall footprint—7.25 in length, 9 in height, 6.25 in width—facilitates predictable installation planning and inventory management for procurement teams while supporting dependable performance in continuous operation scenarios.
Get a Quick Quote for a Eaton Crouse-Hinds CFS175-1523
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS175-1523?
Enquire Now
FAQs
The CFS175-1523 is designed for hazardous locations (NEC/CEC compliant) with Class I, Division 1; Class II, Division 1; Class III ratings and NEMA 3/3R protection. It fits single-gang dead-end installations in copper-free aluminum and integrates with PowerGard back boxes, making it ideal for chemical plants, refineries, and other demanding environments.
It is rated for 15A at 125Vac, configured as two-wire, three-pole, with a 3/4 inch trade size. The unit weighs about 3.8 lb and measures roughly 7.25 in long, 9 in high, and 6.25 in wide, suitable for standard mounting footprints in hazardous-area electrical installations.
Yes, the CFS175-1523 is designed to pair with PowerGard back boxes. This compatibility simplifies installation, reduces field wiring errors, and helps maintain a robust, explosion-proof assembly in hazardous locations.
This receptacle assembly carries NEC/CEC standards, NEC hazardous rating Class I Division 1, Class II Division 1, Class III, and NEMA ratings 3 and 3R. UL certification references are available in the provided documentation, ensuring regulatory compliance and safety approvals for critical industrial applications.
By delivering reliable hazardous-location performance, corrosion resistance (copper-free aluminum), and simplified installation with standard footprints, the CFS175-1523 reduces maintenance costs, minimizes downtime, and shortens project timelines. The combination with PowerGard back boxes also lowers commissioning risk and extends service life in demanding environments.
