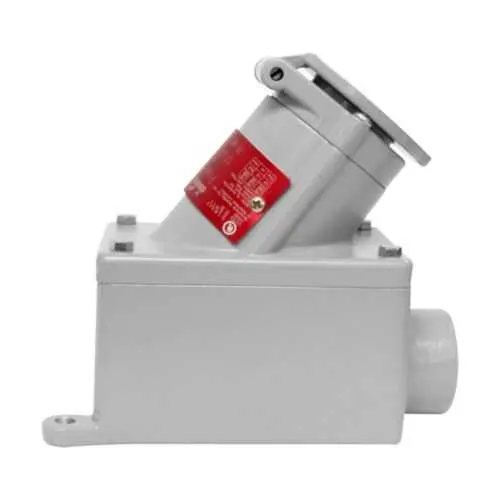

Eaton Crouse-Hinds CFS175-1523-M15 Receptacle Assembly - Hazardous Locations
Part Number: CFS175-1523-M15
Manufacturer
Eaton Crouse-Hinds
Part number
CFS175-1523-M15
Category
Quick Summary
PowerGard receptacle assembly provides rugged, explosion-proof electrical connections for hazardous locations. For engineers and procurement teams navigating strict codes and challenging environments, fast, compliant installation matters. This product carries NEC/CEC standards with Class I, Division 1 ratings and a NEMA 3/3R enclosure, offering proven protection in harsh industrial settings. Built with copper-free aluminum, it delivers corrosion resistance and lighter weight without sacrificing durability in dusty or damp locations. The single-gang, dead-end configuration simplifies wiring and reduces field assembly time, especially when paired with compatible PowerGard locking plugs and back boxes. Using a trusted PowerGard solution can lower maintenance costs, improve uptime, and support safer operations across oil, gas, and chemical processing facilities.
Product Information
Extended Description
CFS175-1523-M15 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 15A, Two-wire, three-pole, Copper-free aluminum, Single-gang, Dead end, 3/4", M15 model, 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS175-1523-M15
Product Length/Depth
7.25 in
Product Height
9 in
Product Width
6.25 in
Product Weight
3.8 lb
UPC
662276515550
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Single-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
3/4"
Amperage Rating
15A
Voltage rating
125 Vac
Material
Copper-free aluminum
Type
M15 model
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
PowerGard Explosionproof NEMA Locking Receptacles UL certification (PowerGard Receptacles and Back Boxes Classified for use with Appleton ECP Plugs and EFS Receptacles)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS175-1523-M15
The 15A, 125Vac two-wire, three-pole configuration in a single-gang, dead-end housing delivers a compact, code-compliant connection, reducing panel space and wiring complexity while supporting standard industrial loads. Copper-free aluminum provides corrosion resistance and lighter weight, improving handling, installation speed, and lifecycle performance in harsh environments. NEC/CEC compliance with Class I Division 1, Class II Division 1, and Class III ratings, plus NEMA 3 and 3R protections, delivers proven safety and reliability in hazardous locations. The dead-end design simplifies field wiring and is highly compatible with PowerGard NEMA locking plugs and back boxes, supported by official installation literature such as IF 1663 and the PowerGard brochure. This combination minimizes downtime, lowers maintenance costs, and extends service life in oil, gas, and chemical processing facilities. Compatibility with back boxes and locking plugs enhances upgrade paths without rework; industry-leading materials reduce corrosion-related failures over time.
Get a Quick Quote for a Eaton Crouse-Hinds CFS175-1523-M15
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS175-1523-M15?
Enquire Now
FAQs
Install in a single-gang, dead-end enclosure using a 3/4" trade size. The unit is a two-wire, three-pole design rated for 15A at 125V and is intended for Class I Division 1, Class II Division 1, and Class III environments. Follow the IF 1663 installation sheet and ensure proper grounding and enclosure sealing per NEC/CEC requirements to maintain hazardous-location integrity.
Yes. The PowerGard receptacle assembly is designed to work with PowerGard locking plugs and back boxes. Compatibility is supported by UL certifications and Eaton literature, including the PowerGard catalog pages and installation guides.
The unit aligns with NEC/CEC standards, carries NEC hazardous rating Class I, Division 1 (and Class II Division 1, Class III), and has NEMA ratings of 3 and 3R. It is designed for hazardous/classified locations and complies with relevant UL certifications.
Copper-free aluminum delivers corrosion resistance and lighter weight, improving handling and reducing total installed weight in constrained spaces. This material choice extends service life in harsh environments and lowers maintenance costs due to reduced corrosion-related issues.
Refer to the Eaton PowerGard specification sheet for CFS175-1523-M15, the IF 1663 installation sheet, and the PowerGard brochures/catalog pages listed under downloads. These documents provide detailed wiring diagrams, mounting guidance, and compatibility information for hazardous-location installations.
