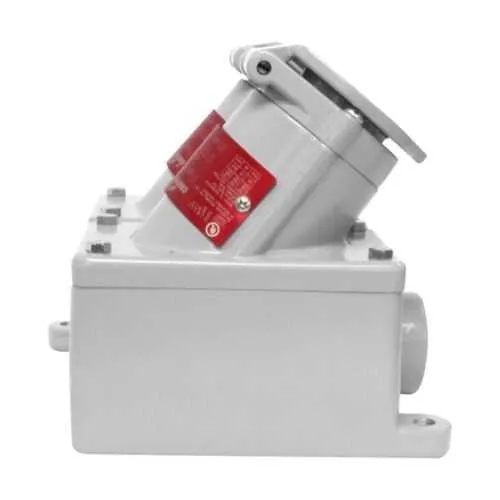

Eaton Crouse-Hinds CFS210-2023 Receptacle - Hazardous
Part Number: CFS210-2023
Quick Summary
PowerGard receptacle assembly is a rugged, code-compliant solution for hazardous locations. It delivers reliable electrical connectivity in challenging environments, supporting two-wire, three-pole operation at 125 Vac. This design helps maintenance teams reduce unplanned downtime by withstanding harsh chemicals and vibration while meeting NEC/CEC requirements. The configuration is rated for Hazardous/Classified Locations with NEMA 3 and 3R protection, giving you shore-to-site resilience. By selecting copper-free aluminum construction in a two-gang, dead-end enclosure with a 1-inch trade size, you gain faster installation, lower lifecycle costs, and simpler spare-part planning. For facilities seeking compliant, durable power distribution at scale, this receptacle assembly harmonizes safety, performance, and installability.
Product Information
Extended Description
CFS210-2023 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 1", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS210-2023
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276357891
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS210-2023
Copper-free aluminum enclosure reduces corrosion risk in aggressive environments, extending service life and cutting maintenance costs. This feature translates to longer intervals between inspections and lower replacement part spend, especially in offshore, chemical, or mining settings where exposure is constant. Two-gang, dead-end configuration with a 1 inch trade size enables compact, streamlined installs. It allows faster mounting in electrical switchgear or outdoor enclosures and simplifies field wiring when space is at a premium. The 20A, 125 Vac rating supports common industrial loads while meeting NEC/CEC requirements for hazardous locations. This rating helps specifiers avoid oversizing components while ensuring reliable operation under typical plant loads. Area classification and NEC/CEC compliance provide regulatory assurance for facilities operating in Class I, II, and III zones. NEMA 3 and 3R ratings add protection against weather and impact, reducing downtime in challenging environments. Compatibility with installation guidance like IF 1663 ensures technicians deploy PowerGard receptacles correctly. The copper-free aluminum, two-wire, three-pole configuration aligns with industry best practices and supports scalable distribution across multiple hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds CFS210-2023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS210-2023?
Enquire Now
FAQs
The CFS210-2023 is designed for hazardous and classified locations in industrial facilities, supporting NEC/CEC compliance and area classifications. It carries NEC Class I, Division 1, Class II, Division 1, and Class III ratings with NEMA 3/3R protection, making it suitable for chemical plants, oil and gas facilities, refineries, and other challenging environments.
Key specs include a 20A amperage rating, 125 Vac voltage rating, copper-free aluminum construction, two-wire, three-pole configuration, and a two-gang, dead-end design. It is rated for a 1" trade size and has a 7" length, 10" height, and 7" width footprint to fit common hazardous-location installations.
Yes. The CFS210-2023 is specified as a two-gang, dead-end receptacle with a 1" trade size, facilitating compact installation in limited spaces and ensuring compatibility with standard hazard-location enclosures and wiring conventions used in industrial facilities.
It carries NEC/CEC compliance, area classification for Hazardous/Classified Locations, and NEMA ratings of 3 and 3R. Canadian certifications for receptacles with plugs are also documented in UL reports, supporting cross-border installation and regulatory adherence in diverse sites.
Installation guidance is available in the IF 1663 PowerGard Receptacles instruction sheet. This document provides wiring, mounting, and safety steps to ensure correct deployment, along with compatibility notes for hazardous-location configurations and two-wire, three-pole connections.
