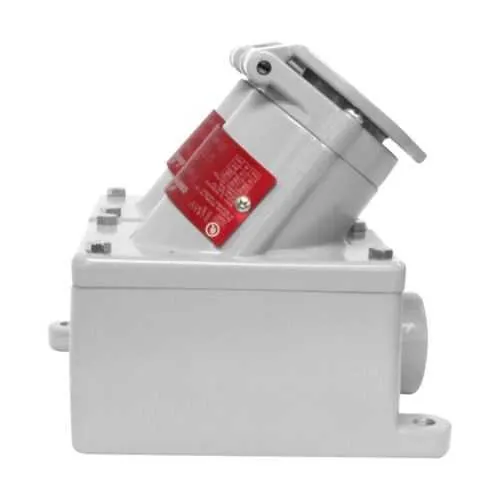

Eaton CFS210-20232 PowerGard Receptacle - Class I Div 1
Part Number: CFS210-20232
Quick Summary
PowerGard receptacle assemblies deliver explosion-protected connectivity for hazardous locations in industrial facilities. For engineers, downtime and noncompliance in explosive atmospheres can drive costly maintenance and safety risks. This Eaton design aligns with NEC/CEC standards, supports Class I, Division 1 ratings, and carries NEMA 3 and 3R protections for rugged outdoor and heavy-duty environments. By choosing this copper-free aluminum, two-gang dead-end receptacle, your power distribution meets stringent safety codes while reducing weight and simplifying installation. The unit is ready for two-wire, three-pole configurations at 1" trade size, enabling efficient integration into existing power distribution and automation networks.
Product Information
Extended Description
CFS210-20232 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 1", 250 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS210-20232
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276358881
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1"
Amperage Rating
20A
Voltage rating
250 V AC
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS210-20232
Feature: Explosion-protected PowerGard architecture provides sealed containment for energized connections. Business Impact: reduces ignition risk in hazardous atmospheres and accelerates regulatory onboarding across sites. Application: chemical processing, oil and gas, and mining facilities where reliability and compliance are non-negotiable. Feature: Copper-free aluminum housing delivers corrosion resistance with lighter weight. Business Impact: lowers lifecycle maintenance costs and allows simpler handling during installation. Application: offshore platforms, outdoor installations, and spaces with corrosive exposure. Feature: Two-gang, dead-end configuration at 1" trade size offers a compact footprint. Business Impact: enables easier panel integration and reduces enclosure crowding. Application: control panels and distribution hubs in constrained electrical spaces. Feature: 20A at 250V AC with two-wire, three-pole configuration. Business Impact: supports common industrial loads while maintaining robust protection. Application: powering motors, drives, and lighting in hazardous locations. Feature: NEC/CEC compliance with Class I Division 1 and NEMA 3/3R ratings. Business Impact: ensures regulatory adherence and durable performance in harsh environments. Application: hazardous area installations requiring proven safety certifications.
Get a Quick Quote for a Eaton Crouse-Hinds CFS210-20232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS210-20232?
Enquire Now
FAQs
The two-gang, dead-end design fits standard installations using a 1" trade size and copper-free aluminum construction. It supports two-wire, three-pole configurations and is compatible with NEC/CEC requirements for Class I, Division 1 environments, simplifying mounting in hazardous-area panels and junction boxes.
This unit adheres to NEC/CEC standards and carries NEC hazardous ratings for Class I, Division 1, with additional Class II and Class III considerations. It features NEMA 3 and 3R ratings for durable outdoor use in hazardous locations, aligning with area classifications for reliable, compliant operation.
The receptacle is rated at 20A and 250V AC, configured as two-wire, three-pole in a copper-free aluminum body. It comes in a two-gang, dead-end enclosure with a 1" trade size, suitable for powering typical industrial equipment while maintaining safe, explosion-protected connections.
Yes. With NEMA 3/3R protection and NEC hazardous-location ratings, it is designed for outdoor and rugged installations. The copper-free aluminum housing provides corrosion resistance, improving longevity in harsh environments such as chemical plants and mining sites.
The combination of explosion-proof construction, durable materials, and compliant certifications reduces maintenance downtime and regulatory risk. This translates to lower total cost of ownership, fewer unexpected outages, and faster commissioning in hazardous-area power distribution systems.
