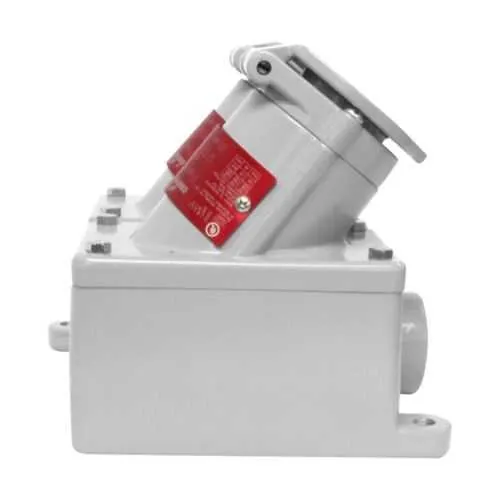

Eaton CFS250-1523 Receptacle Assembly - Hazardous Locations
Part Number: CFS250-1523
Quick Summary
Receptacle Assembly from Eaton Crouse-Hinds PowerGard delivers safe, reliable power distribution for hazardous locations on industrial sites. Owners struggle with maintenance outages and strict compliance in hazardous-environment installations, risking downtime. Built for Class I, Division 1 and Class II, Division 1 hazardous areas, with NEMA 3 and 3R ratings for rugged outdoor service. Designed to meet NEC/CEC standards while using copper-free aluminum, this two-gang, dead-end configuration simplifies installation and reduces total cost of ownership. Its copper-free aluminum housing resists corrosion in harsh environments, supporting long service life and reduced maintenance. This makes it a smart choice for panel builders, OEMs, and maintenance teams focused on uptime and safety in challenging settings.
Product Information
Extended Description
CFS250-1523 Eaton Crouse-Hinds: Eaton Crouse-Hinds series PowerGard receptacle assembly, 15A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 1/2", 125 Vac
Product Name
Eaton Crouse-Hinds series PowerGard receptacle assembly
Catalog Number
CFS250-1523
Product Length/Depth
7 in
Product Height
10 in
Product Width
7 in
Product Weight
6.44 lb
UPC
662276361850
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class III
NEMA Rating
3 3R
Number of gangs
Two-gang
Style
Dead end
Configuration
Two-wire, three-pole
Trade size
1/2"
Amperage Rating
15A
Voltage rating
125 Vac
Material
Copper-free aluminum
PowerGard Explosionproof NEMA Locking Receptacles brochure
PowerGard Explosionproof NEMA Locking Receptacles catalog page
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
PowerGard Explosionproof NEMA Locking Receptacles Canadian certification (Receptacles with Plugs Interlocked with Switches)
IF 1663 - PowerGard Receptacles
Eaton Specification Sheet - CFS250-1523
Feature copper-free aluminum housing resists corrosion in harsh environments. Business Impact extended service life and lower maintenance costs in explosive atmospheres. Application power distribution enclosures, outdoor installations, and panel boards in chemical plants and refineries. Feature 15A, 125V electrical rating with a two-wire, three-pole configuration. Business Impact reliable, code-compliant power for tools and control devices without over-sizing. Application hazardous-location receptacle assemblies in manufacturing lines and warehousing automation. Feature two-gang, dead-end configuration. Business Impact simplifies wiring routes, reduces installation time, and lowers error risk. Application shared power distribution points in electrical rooms and outdoor enclosures. Feature NEC/CEC compliance with Class I, Division 1; Class II, Division 1; Class III ratings and NEMA 3/3R. Business Impact compliance assurance reduces regulatory risk and insurance costs. Application hazardous-location facilities, mining, oil & gas, chemical processing. Feature 1/2 inch trade size compatibility. Business Impact supports easy integration with standard conduit fittings, speeding field installation. Application panel-mounted or enclosure-fed receptacles in industrial plants. Feature PowerGard branding and proven explosion-proof performance. Business Impact trusted uptime and vendor support from Eaton. Application OEMs and panel builders targeting long-term reliability in harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds CFS250-1523
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CFS250-1523?
Enquire Now
FAQs
Ensure the installation complies with NEC/CEC requirements for Class I, Division 1 and Class II, Division 1 environments. Use the copper-free aluminum housing, two-gang dead-end configuration, and 1/2 inch trade size fittings. Confirm appropriate area classification, grounding, and enclosure rating, and follow Eaton installation sheets for wiring and termination procedures to minimize fault points.
The unit carries NEC/CEC compliance with hazardous-location ratings including Class I, Division 1; Class II, Division 1; Class III, plus NEMA 3 and 3R ratings. This combination assures suitability for hazardous environments, outdoor service, and weather exposure, supporting safer operation, regulatory adherence, and insurance readiness for industrial facilities.
Yes. The CFS250-1523 is configured for a 1/2" trade size and two-wire, three-pole wiring in a two-gang dead-end setup, enabling straightforward integration with common conduit fittings and enclosure layouts used in chemical plants, refineries, and other hazardous-location installations.
The assembly is rated for 15A at 125 VAC, with copper-free aluminum housing. It uses a two-wire, three-pole configuration in a two-gang, dead-end design, and is intended for hazardous locations, offering reliable performance for power distribution in demanding environments.
Copper-free aluminum construction resists corrosion, extending service life and reducing maintenance cycles. NEC/CEC compliance minimizes regulatory risk, while NEMA-rated protection supports outdoor use. Together, these factors translate to higher uptime, lower replacement costs, and improved total cost of ownership for facilities with stringent safety and reliability requirements.
